Tension and Compression Disks are specialized load-sensing devices designed to measure both tensile (pulling) and compressive (pushing) forces accurately. They are widely used in material testing, structural monitoring, and industrial process control. At Sensors and Gauges, we offer a variety of tension and compression disks, along with digital readouts and integration solutions, ensuring high precision and reliability in your applications. This guide covers features, applications, pricing, and benefits of these versatile sensors
Tension and Compression Disks
-

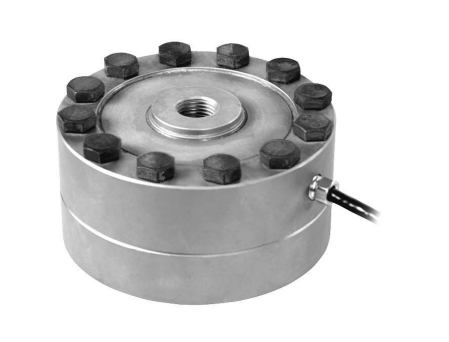

Sensortronics Model 98001 Low Profile Universal Load Cell
Title :- Model 98001 Low Profile Universal Load Cell Brand :- Sensortronics DESCRIPTION The Model 98001 is a universal alloy steel shear beam load cell ideal for testing machine applications employing both tension and compression loading. This shear beam design load cell provides excellent immunity to impact and side forces. This load cell includes integrated overload protection for compression loading applications. FEATURES β’ Capacity: 0.5β100 tβ’ Alloy steel constructionβ’ Universal load cellβ’ Integrated overload protection (in compression)β’ Tension and compression loadingβ’ OptionalΒ - Model 98005 without base mounting plate(for compression applications only)Β - Metric and imperial threads APPLICATIONS β’ Universal testing machines
$262.50
-

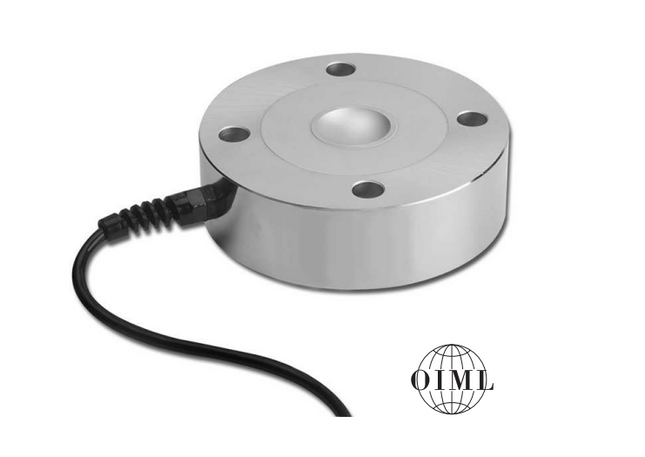

Celtron Model PSD Precision Shear Web Disk
Title :- Β Model PSD Precision Shear Web Disk Brand :- Celtron DESCRIPTIONThe model PSD is a precision shear web disk, aΒ specialized compression load cell. A low profile designΒ makes the PSD the most suitable application whenΒ height is a primary safety concern. The shear web designΒ provides excellent performance even when side forcesΒ are inevitable in normal operations. A typical exampleΒ would be in motor truck scales. The PSD is fully pottedΒ with special chemical compounds to the IP67 standard.Β This protects the cell from water and moisture attack. TheΒ PSD-SJTT and PSD-SJTH are low-profile compressiondisks specially designed for testing machines.Β FEATURESβ’ Capacities:Β - PSD: 2.5, 5, 10, 25Β - PSD-SJTH: 0.5, 1, 2, 5, 10, 20, 25, 30Β - PSD-SJTT: 0.2, 0.5, 1, 1.5, 2.5, 5, 10, 20, 25, 30,50, 100 tβ’ Compact size with low profileβ’ Low deflection for high outputβ’ Electroless nickel-plated alloy tool steel constructionβ’ Off center load compensatedβ’ OIML C3 available for the entire seriesβ’ OptionalΒ - PSD-SJTT and PSD-SJTH models have differentmounting holes and capacities from default PSD βsee below for details. APPLICATIONSβ’ Testing machinesβ’ Platform scalesβ’ Hopper and vessel weighingβ’ Truck scales
$258.48
-

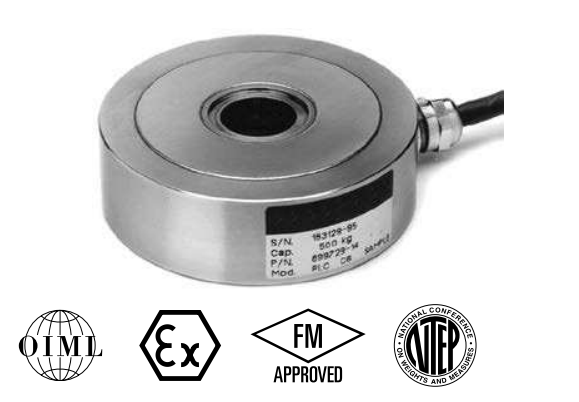

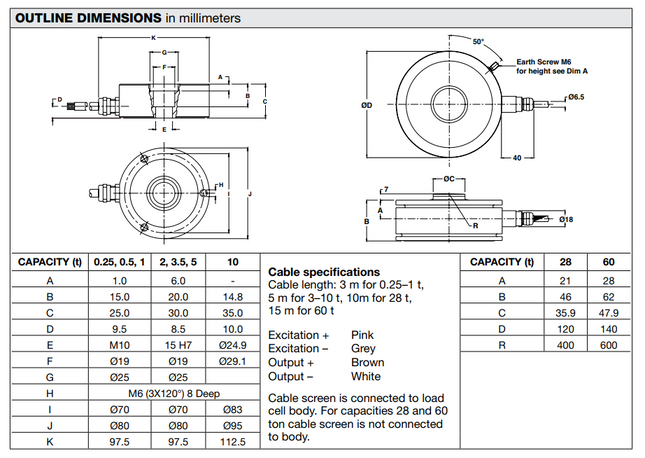

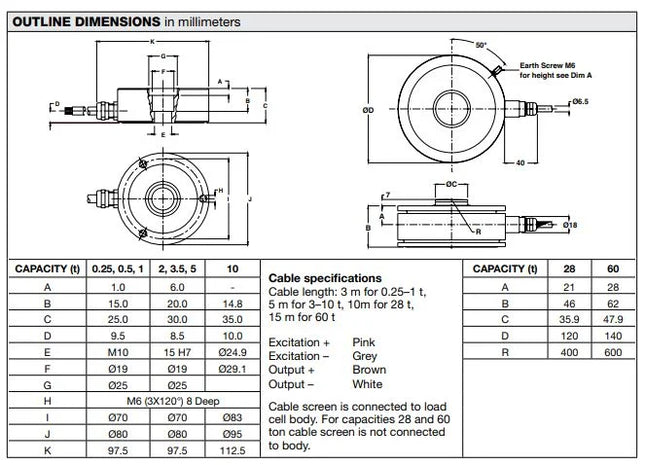

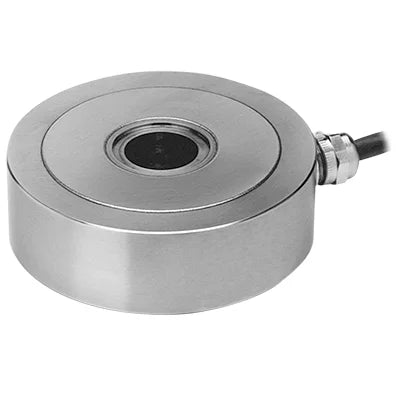

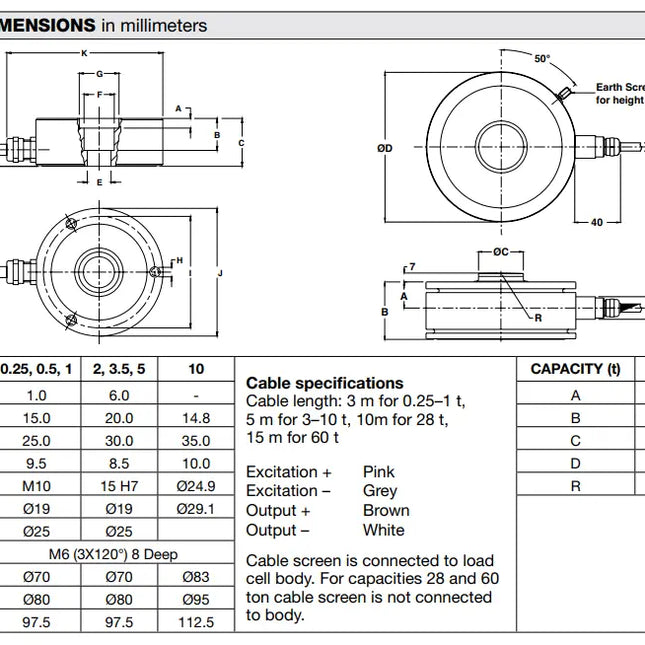

Revere Model RLC Ring Torsion Load Cell
Title :- Model RLC Ring Torsion Load CellΒ Brand :- Revere DESCRIPTION The RLC is a low profile, high performance stainless steel ring torsion type load cell. The fully welded construction and glass-to-metal cable entry ensure that this product can be used successfully in harsh environments found in the food, chemical and alliedΒ process industries. This product is suitable for small and medium platform scales, hoppers and process weighing. This product meets the stringent Weights and Measures requirements throughout Europe and USA. FEATURES β’ Capacity range: 250 kg to 60 tβ’ Low profile, stainless steel constructionβ’ Hermetically sealed, IP66 and IP68; IP69K is availableΒ for 250 kg, 5 t and 10 t versionsβ’ Meets OIML R-60 and NTEP 6000dβ’ Outputs are matched to ensure easy and accurateΒ parallel connection of multiple load cellsβ’ OptionalΒ β ATEX certified versions are available for use inΒ potentially explosive atmospheresΒ β Multi-interval and multiple-range versions are available APPLICATIONS β’ Platform scalesβ’ Belt scalesβ’ Silo hopper weighing
$838.46
-

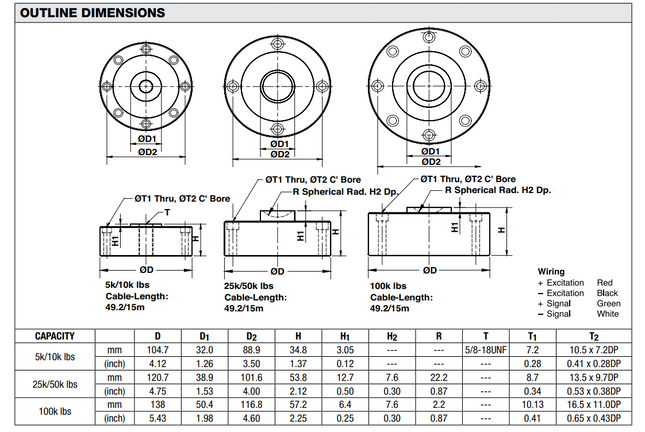

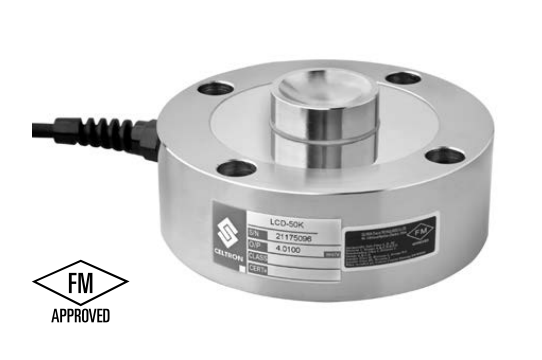

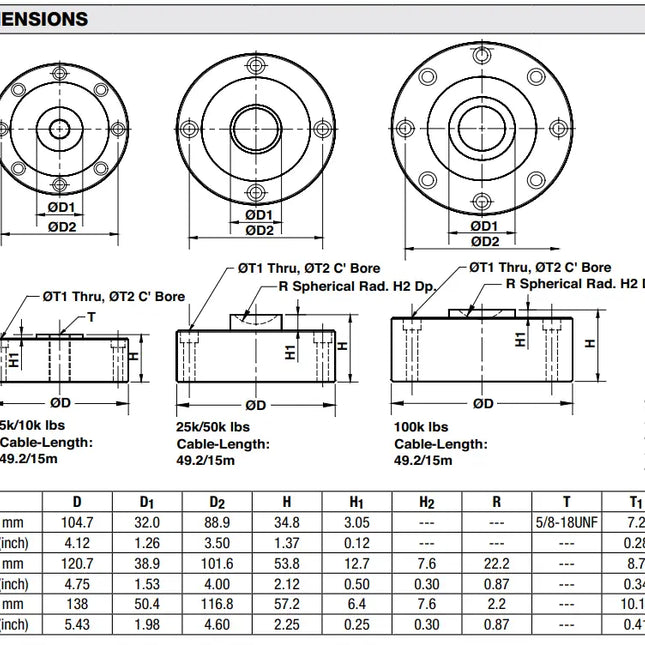

Celtron Model- LCD - Low Proο¬le Compression Disk (50Klb)
Β Title :- Model- LCD - Low Proο¬le Compression Disk (50Klb) Brand :- CeltronΒ DESCRIPTION The low profile compression disk is designed as the ultimate solution for some difficult applications with critical height for safety reasons. The shear web design provides excellent performance even when the side force inevitably exists in normal operations. The typical example for side force resistance is the applications in motor truckΒ scales.Β LCD is constructed of alloy steel and fully potted with special chemical compounds to IP67 providing excellent protection against moisture and humidity. FEATURES β’ Β Β Capacities: 5k, 10k, 25k, 50k, 100k lbsΒ β’ Β Β Electroless nickel-plated alloy tool steelβ’ Β Β Compact size with low profileβ’ Β Β Surge protection optional for 5kβ100k lbsβ’ Β Β Optionalβ Stainless steel availableβ FM approval availableΒ β LCD-TT/M/MH with different loading holes APPLICATIONS β’ Β Β Truck/rail scalesβ’ Β Β Silo/hopper/tank weighingβ’ Β Β Universal material testerβ’ Β Β Tensile/pulling force measurement
$1,048.07
