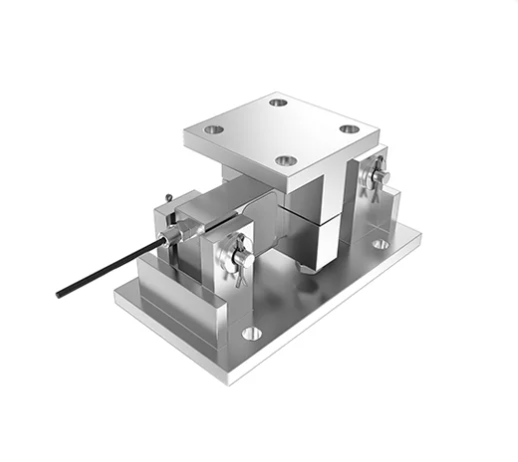

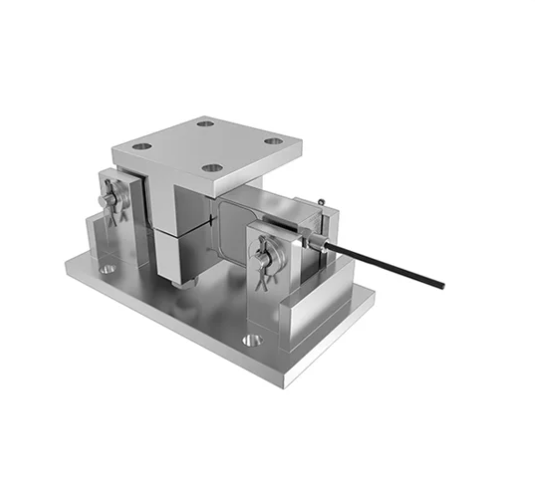

Title :- TWA/Mount Load Cell Mounting Assemblies 65016 Brand :-  Sensortronics FEATURES  • Capacity ranges of 1000 to 75,000 pounds• Mounts directly to the floor for structural support• Self-checking with provisions for thermal expansionand contraction• Insensitive to side loads and bending moments• High output—well suited to high deadload/low liveloadapplications• Load cells have matched outputs for multi-cell systems• Excellent combined error and repeatability• Accuracies exceed 0.1% with agitated loads• Integral conduit adaptor• Sensorgage™ sealed to IP67 standards• Factory Mutual System Approved for Classes I, II, III;Divisions 1 and 2; Groups A through G.Also, non-incendive ratings (No barriers!)• Optional- Stainless steel, welded seal assemblies available APPLICATIONS • Tank, bin and hopper weighing• Silo weighing• Batching, blending, mixing, level and inventorymonitoring DESCRIPTION The 65016-TWA is a mid to high capacity nickel-plated alloy steel weighing assembly. It has high side load rejection, and is able to withstand loads in all directions, up to and exceeding its rated capacity, without permanent damage or the threat of structural failure. This weighing assembly is also designed to move in the direction of thermal expansion, guaranteeing accurate measurements regardless of conditions. Nickel plating and IP67 rated sealing make this load cell suitable for use in outdoor applications as well as applications that are subject to high pressure wash down. For a higher degree of corrosion and water resistance please see 65016-0104W, the stainless steel and welded seal version of 65016. This load cell is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments.

Read more less

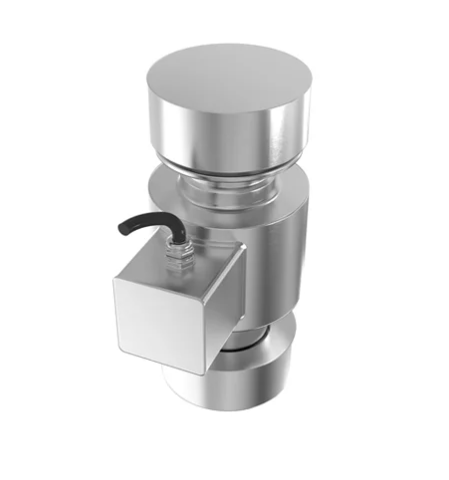

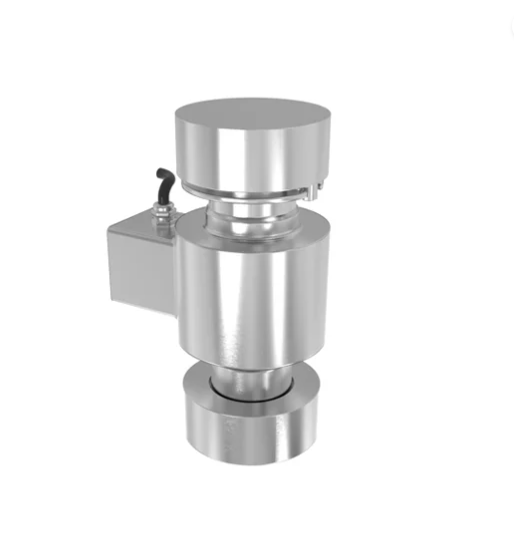

Title :- TWA/Mount Load Cell Mounting Assemblies ASC-DSC Brand :- Revere FEATURES • Capacities: 30–50T• Hardened components at all bearing surfaces• Self-aligning construction• Stainless steel APPLICATIONS • Truck and rail scale applications• Silo and weighbridge applications DESCRIPTION The ASC and DSC self-aligning set provides weighing assemblies suitable for truck scale, rail scale and process weighing applications . The self-aligning set is specially designed to be used in weighbridges without stay or check rods. Eccentric washers are used to ensure that the load cell is placed in a vertical position, and perpendicular to its mounting surfaces . Long-term reliability is assured through the use of hardened corrosion resistive steel on all mount parts.

Read more less
