S - Type Load Cells

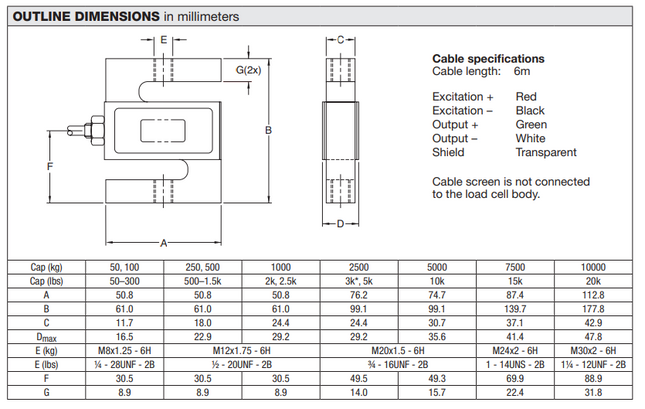

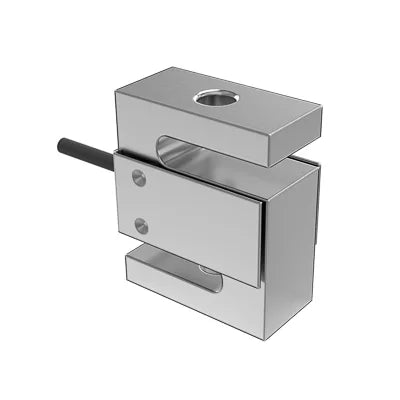

Durable, Versatile Load Cell for Tension and Compression Applications The 1000kg Load Cell – Model 9363 S-Type from Revere is a stainless-steel multipurpose load cell engineered for both tension and compression applications. Built for high accuracy and long-term durability, this load cell delivers precise, repeatable, and reliable measurements, making it suitable for industrial, commercial, and laboratory weighing systems. Download Data Sheet Key Features & Benefits: Capacity: 1000 kg (available in 50–10,000 kg / 50–20,000 lbs variants) Construction: Stainless steel for corrosion resistance and robust performance Multipurpose Design: Supports both tension and compression loading for versatile applications Environmental Protection: IP67 rated – dust-tight and resistant to water immersion Precision Engineering: Ideal for setups requiring reliable, high-accuracy measurements in demanding environments Applications: Compression and tension testing Industrial weighing systems Laboratory and research applications Smart Tip: The 9363 S-Type Load Cell is perfect for applications needing a high-precision, durable, and versatile load cell capable of handling both tension and compression forces. Description Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression. The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. The product meets the stringent Weights and Measures requirements throughout Europe and the USA. Features Capacities: 50 to 10,000 kg (50 to 20,000 lbs) Stainless-steel construction Suitable for compression and tension applications Trimmed output versions standard Sealing: IP67 Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions Parameter Value Unit Rated capacity (kg) 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 kg Rated capacity (lbs) 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k lbs NTEP/oiml accuracy class NTEP IIIL Non-Approved OIML C3 Max. no. of intervals (n) 10000 D3 3000 Rated output R.O 3 mV/V Rated output tolerance 0.0075 ±%mV/V Zero balance 1 ±%FSO Non-repeatability 0.0100 0.0100 0.0100 ±%FSO Creep error — ±%FSO Ultimate over load 250 % of R.C Excitation voltage 5 to 12 VDC or VAC RMS Max. excitation voltage 15 VDC or VAC RMS Input resistance 390±15 Ω Output resistance 350±3.5 Ω Insulation resistance ≥5000 MΩ Environmental protection IP67 FSO - Full Scale Output All specifications subjects to change whithout notice. Applications Suspended hoppers Overhead track scales Force measurement

Read more less

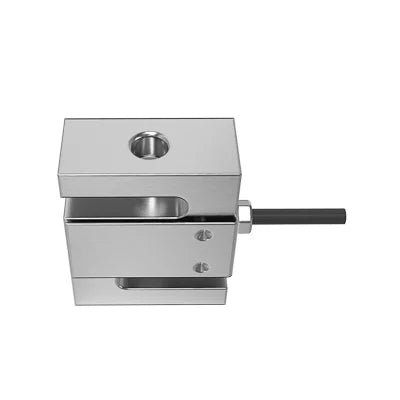

Versatile, High-Precision Load Cell for Tension and Compression Applications The 100kg Load Cell – Model 9363 S-Type from Revere is a multipurpose stainless-steel load cell designed for both tension and compression applications. Built for durability and precision, this load cell delivers accurate, stable, and repeatable measurements, making it ideal for industrial, commercial, and laboratory weighing setups. Download Data Sheet Key Features & Benefits: Capacity: 100 kg (available in 50–10,000 kg / 50–20,000 lbs variants) Construction: Stainless steel for corrosion resistance and long-term durability Multipurpose Design: Suitable for both tension and compression applications Environmental Protection: IP67 rated – dust-tight and protected against immersion in water Precision Engineering: Ideal for industrial, commercial, and testing environments requiring reliable and versatile load measurement Applications: Compression and tension testing Industrial weighing systems Laboratory and research applications Smart Tip: The 9363 S-Type Load Cell is perfect for applications that require a durable, versatile, and high-precision load cell for both tension and compression. Description Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression. The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. The product meets the stringent Weights and Measures requirements throughout Europe and the USA. Features Capacities: 50 to 10,000 kg (50 to 20,000 lbs) Stainless-steel construction Suitable for compression and tension applications Trimmed output versions standard Sealing: IP67 Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions Options FM approved for use in potentially explosive atmospheres Parameter Value Unit Rated capacity (kg) 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 kg Rated capacity (lbs) 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k lbs NTEP/oiml accuracy class NTEP IIIL Non-Approved OIML C3 Max. no. of intervals (n) 10000 D3 3000 Rated output R.O 3 mV/V Rated output tolerance 0.0075 ±%mV/V Zero balance 1 ±%FSO Non-repeatability 0.0100 0.0100 0.0100 ±%FSO Creep error — ±%FSO Ultimate over load 250 % of R.C Excitation voltage 5 to 12 VDC or VAC RMS Max. excitation voltage 15 VDC or VAC RMS Input resistance 390±15 Ω Output resistance 350±3.5 Ω Insulation resistance ≥5000 MΩ Environmental protection IP67 FSO - Full Scale Output All specifications subjects to change whithout notice. Applications Suspended hoppers Overhead track scales Force measurement

Read more less

Versatile and Durable Load Cell for Tension and Compression Applications The 250kg Load Cell – Model 9363 S-Type from Revere is a stainless-steel multipurpose load cell designed for both tension and compression applications. Engineered for reliability and precision, this load cell delivers accurate, repeatable, and stable measurements, making it suitable for a wide range of industrial, commercial, and laboratory weighing systems. Download Data Sheet Key Features & Benefits: Capacity: 250 kg (available in 50–10,000 kg / 50–20,000 lbs variants) Construction: Stainless steel for long-lasting durability and corrosion resistance Multipurpose Design: Ideal for both tension and compression applications Environmental Protection: IP67 rated – dust-tight and resistant to water immersion Precision Engineering: Ensures reliable measurements in demanding industrial or laboratory settings Applications: Tension and compression testing Industrial weighing systems Laboratory and research applications Smart Tip: The 9363 S-Type Load Cell is perfect for applications that demand a robust, versatile, and high-precision load cell capable of handling both tension and compression forces. Description Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression. The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. The product meets the stringent Weights and Measures requirements throughout Europe and the USA. Features Capacities: 50 to 10,000 kg (50 to 20,000 lbs) Stainless-steel construction Suitable for compression and tension applications Trimmed output versions standard Sealing: IP67 Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions Options FM approved for use in potentially explosive atmospheres Parameter Value Unit Rated capacity (kg) 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 kg Rated capacity (lbs) 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k lbs NTEP/oiml accuracy class NTEP IIIL Non-Approved OIML C3 Max. no. of intervals (n) 10000 D3 3000 Rated output R.O 3 mV/V Rated output tolerance 0.0075 ±%mV/V Zero balance 1 ±%FSO Non-repeatability 0.0100 0.0100 0.0100 ±%FSO Creep error — ±%FSO Ultimate over load 250 % of R.C Excitation voltage 5 to 12 VDC or VAC RMS Max. excitation voltage 15 VDC or VAC RMS Input resistance 390±15 Ω Output resistance 350±3.5 Ω Insulation resistance ≥5000 MΩ Environmental protection IP67 FSO - Full Scale Output All specifications subjects to change whithout notice. Applications Suspended hoppers Overhead track scales Force measurement

Read more less

High-Precision, Versatile Load Cell for Tension and Compression Applications The 500kg Load Cell – Model 9363 S-Type from Revere is a stainless-steel multipurpose load cell designed for both tension and compression applications. Built for accuracy and durability, this load cell delivers stable, repeatable, and reliable measurements, making it ideal for industrial, commercial, and laboratory weighing systems. Download Data Sheet Key Features & Benefits: Capacity: 500 kg (available in 50–10,000 kg / 50–20,000 lbs variants) Construction: Stainless steel for corrosion resistance and long-term durability Multipurpose Design: Suitable for both tension and compression applications Environmental Protection: IP67 rated – dust-tight and protected against water immersion Precision Engineering: Ensures reliable and accurate measurements under demanding conditions Applications: Tension and compression testing Industrial weighing systems Laboratory and research applications Smart Tip: The 9363 S-Type Load Cell is perfect for setups requiring a robust, versatile, and high-precision load cell that handles both tension and compression forces. Description Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression. The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. The product meets the stringent Weights and Measures requirements throughout Europe and the USA. Features Capacities: 50 to 10,000 kg (50 to 20,000 lbs) Stainless-steel construction Suitable for compression and tension applications Trimmed output versions standard Sealing: IP67 Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions Options FM approved for use in potentially explosive atmospheres Description Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression. The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. The product meets the stringent Weights and Measures requirements throughout Europe and the USA. Features Capacities: 50 to 10,000 kg (50 to 20,000 lbs) Stainless-steel construction Suitable for compression and tension applications Trimmed output versions standard Sealing: IP67 Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions Options FM approved for use in potentially explosive atmospheres Parameter Value Unit Rated capacity (kg) 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 kg Rated capacity (lbs) 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k lbs NTEP/oiml accuracy class NTEP IIIL Non-Approved OIML C3 Max. no. of intervals (n) 10000 D3 3000 Rated output R.O 3 mV/V Rated output tolerance 0.0075 ±%mV/V Zero balance 1 ±%FSO Non-repeatability 0.0100 0.0100 0.0100 ±%FSO Creep error — ±%FSO Ultimate over load 250 % of R.C Excitation voltage 5 to 12 VDC or VAC RMS Max. excitation voltage 15 VDC or VAC RMS Input resistance 390±15 Ω Output resistance 350±3.5 Ω Insulation resistance ≥5000 MΩ Environmental protection IP67 FSO - Full Scale Output All specifications subjects to change whithout notice. Applications Suspended hoppers Overhead track scales Force measurement

Read more less

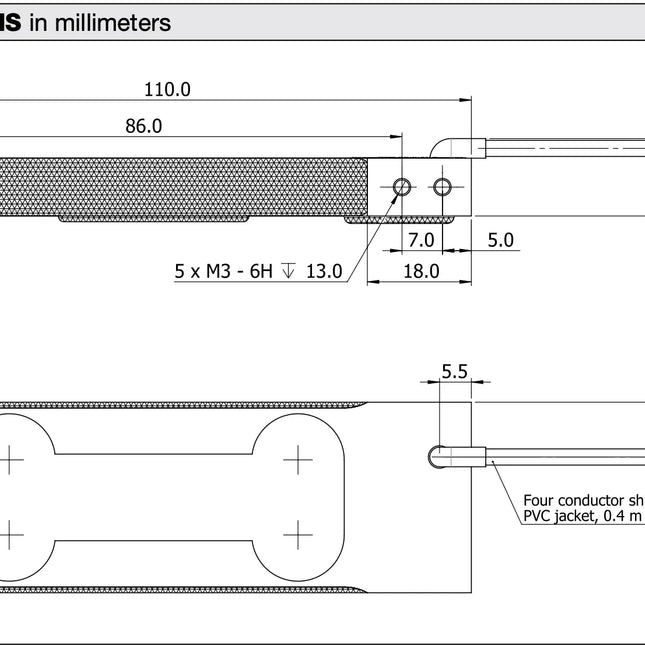

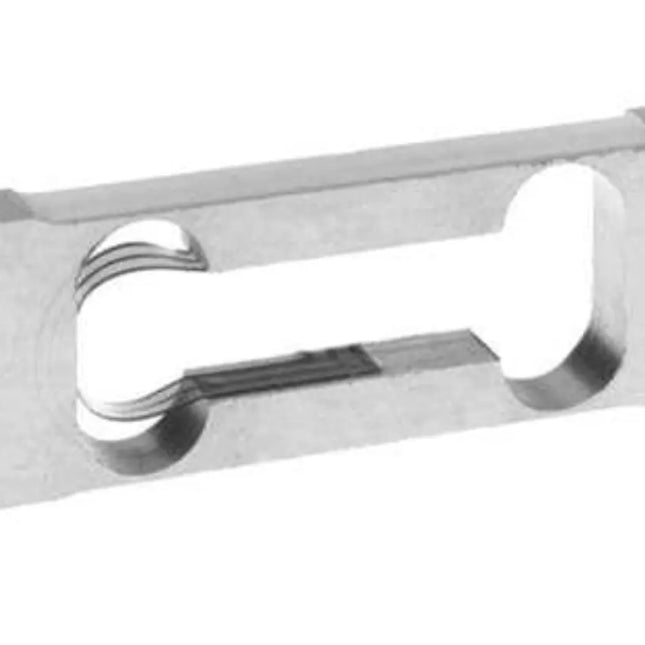

Title :- Model 1004 Tedea Huntleigh Aluminum Single-Point Load Cell Brand :-  Tedea Huntleigh DESCRIPTION  Unlock a new level of accuracy and reliability with the Model 1004, a remarkably high-precision, low-capacity single-point load cell, meticulously engineered for those who demand nothing less than perfection in their measurements. Whether you're working with delicate jewelry, precision balances, or cutting-edge medical research, the Model 1004 guarantees consistent, pinpoint accuracy in every application. Designed for direct mounting in low-capacity scales and precision balances, this load cell is the ultimate solution for a range of demanding tasks from intricate jewelry weighing to pharmaceutical research and low-force measurements. Its high precision makes it perfect for applications that require absolute attention to detail. Why Choose the Model 1004? With the ability to deliver up to 30,000 divisions of short-term precision in a stable room-temperature environment, the Model 1004 ensures your measurements are always accurate, stable, and reliable. Its advanced two-stage humidity-resistant protective coating means your investment is safeguarded against environmental factors, offering long-term durability and peace of mind. Worried about overload? The Model 1004 comes with the option to easily integrate an overload protection device, ensuring the longevity of your equipment. Plus, with a threaded hole built into the loading end, you can seamlessly incorporate this feature into your design.      Features You’ll Love: Capacities ranging from 0.3 to 3 kg, making it ideal for precision tasks Robust aluminum construction ensures strength without sacrificing sensitivity Single-point design supports a 200 × 200 mm platform, offering stable and consistent measurements IP66-rated protection guarantees resilience against dust and powerful water jets, perfect for challenging environments Total error less than 0.0067% of Rated Output (R.O.), ensuring unmatched accuracy Officially approved by OIML C3 and C6 for verified performance        Perfect for These Applications: Low capacity scales :  Ideal for weighing very light items with great accuracy Precision scales : Ensures highly accurate measurements in labs and experiments. Jewelry scales : Perfect for weighing jewelry like gold or diamonds, where    precision is key. Pharmaceutical scales :  Great for measuring small amounts of medicine or chemicals in labs and pharmacies.

Read more less

Title :- Model 363 Universal Load Cell Brand :-  Tedea-Huntleigh  DESCRIPTION Model 363 is a multi-purpose nickel-plated S-Type load cell which can be used in tension or compression. This product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. FEATURES • Capacities: 50 to 10000 kg (50 to 20k lbs)• Nickel-plated steel construction• Certified to NTEP class III 3000d and class IIIL 10000d• Suitable for compression and tension applications• Trimmed output versions available• Sealing: IP65• Optional - FM approved for use in potentially explosive atmospheres  APPLICATIONS • Suspended hoppers• Overhead track scales• Force measurement

Read more less

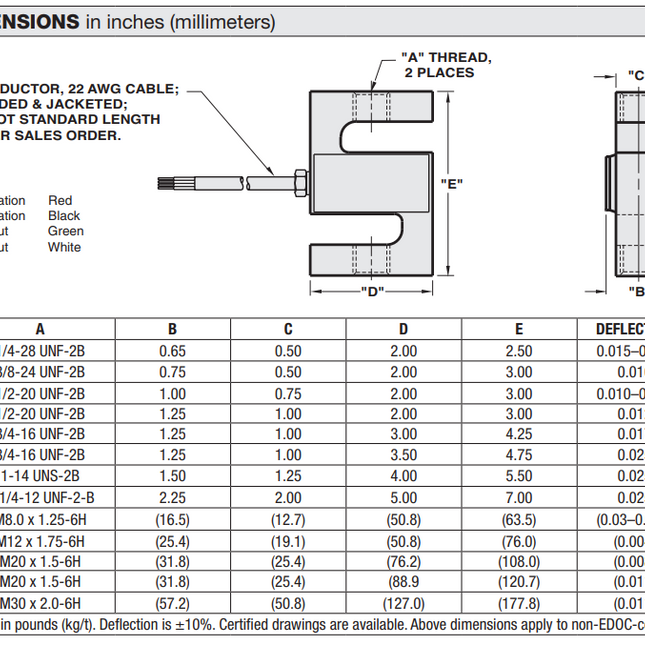

Title :- Model 60001 S-Beam Load Cell Brand :- Sensortronics DESCRIPTION The Model 60001 is a tension-compression load cell with a humidity-resistant coating and shielded cables, which enable its use in harsh environments while maintaining operating specifications. Additional sense wires compensate for changes in lead resistance due to temperature change and/or cable extension. Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications. Nickel-plated for outstanding corrosion resistance. FEATURES • Rated capacities of 25 to 20,000 pounds, 50 kilograms to 10 metric tonnes • Designed for single or multiple load cell applications • Constructed of high quality alloy tool steel• Nickel plated for outstanding corrosion resistance • Sensorgage™ sealed to IP67 standards• Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available • Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G. Also, non-incendive ratings (No barriers!). • Optional - Stainless steel version is Model 60050 - EDOC option available; product appearance will differ from the photograph due to coating APPLICATIONS • Tank, bin and hopper weighing • Level and inventory monitoring• Truck scale conversions • Tension and compression measurements

Read more less

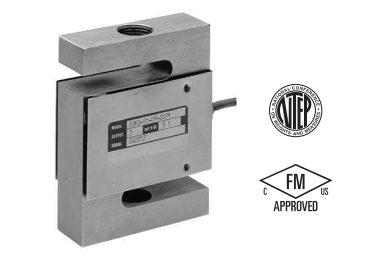

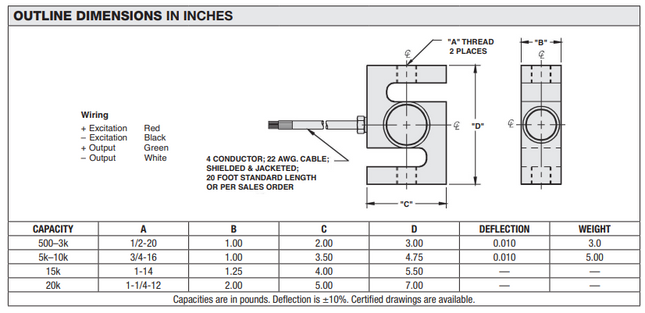

Title :- Model 60063 Stainless Steel, Welded Seal S-Beam Load Cell Brand :- Sensortronics DESCRIPTION The Model 60063 is a stainless steel S-Type load cell. Its welded sealing, combined with high accuracy, make this load cell ideally suited for a wide range of applications of process weighing and force measurement.  Approvals included NTEP III 5000d single and NTEP IIIL10000d multiple. Also available are versions approved for hazardous areas - FM I, II, III Division 1. FEATURES • Rated capacities of 500 to 20,000 pounds • Stainless steel, welded seal construction • Integrated loading brackets • Compatible with TCM tension mounting hardware • Designed for single or multiple load cell applications • Trade certified for NTEP Class IIIL: 10000d and III: 5000d • Sensorgage™ sealed to IP68 standards• Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G. Also, non-incendive ratings (No barriers!)• Optional  - Mounting and loading accessory hardware available  APPLICATIONS • Hostile environments: Food and beverage processing Chemical and plastics processing Pharmaceutical and biomedical • Bin, hopper and belt conveyor scales • Level and inventory monitoring • Tension and compression measurements

Read more less

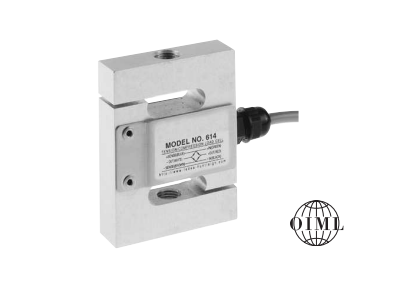

Title :- Model 614 Tension Compression Load Cell Brand :- Tedea-Huntleigh DESCRIPTIONThe Model 614 is a tension-compression load cell. Humidity resistant coating and shielded cables enable this load cell to be used in demanding environments while maintaining its operating specifications.The additional sense wires compensate for changes in lead resistance due to temperature change and/or cable extension.Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications. The Model 614 is made from aluminum. FEATURES • Capacities 50–500 kg• Anodized aluminum construction• OIML R60 approved• IP67 protection• For use in tension or compression• 6 wire (sense) circuit APPLICATIONS • Hopper (Tank weighing)• Hybrid scales• Belt weighing• Lever arm conversions• Material testing machines• Vibrations filling equipment• Dynamometers

Read more less

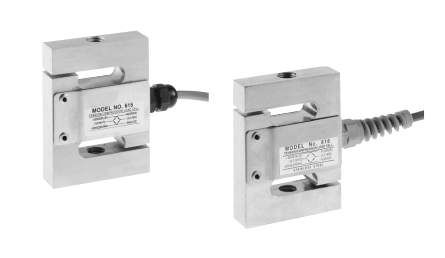

Title :- Model 615 Tension Compression Load Cells Brand :- Tedea-Huntleigh DESCRIPTION The Models 615 and 616 are tension compression load cells which share the same dimensions. Humidity resistant coating and shielded cables enable these load cells to be used in harsh environments while maintaining their operating specifications. The additional sense wires compensate for changes in lead resistance due to temperature change and/orcable extension.Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications. The Model 616 is made from stainless steel and has bonded covers for additional protection (except 50 kg). The Model 615 is an alternative, lower cost version made from alloy steel with riveted covers. FEATURES • Capacities 50–1000 kg• Nickel-plated alloy steel (615) or stainless steel (616)construction• Protection: Model 616—IP66; Model 615—IP67• For use in tension or compression• 6-wire (sense) circuit• Output standardised to ±0.1% APPLICATIONS• Hopper (tank weighing)• Hybrid scales• Belt weighing• Lever arm conversions• Material testing machines• Vibration filling equipment• Dynamometers

Read more less

Title :- Model 616 Tension Compression Load Cells Brand :- Tedea-Huntleigh DESCRIPTION The Models 615 and 616 are tension compression load cells which share the same dimensions. Humidity resistant coating and shielded cables enable these load cells to be used in harsh environments while maintaining their operating specifications. The additional sense wires compensate for changes in lead resistance due to temperature change and/orcable extension.Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications. The Model 616 is made from stainless steel and has bonded covers for additional protection (except 50 kg). The Model 615 is an alternative, lower cost version made from alloy steel with riveted covers. FEATURES • Capacities 50–1000 kg• Nickel-plated alloy steel (615) or stainless steel (616)construction• Protection: Model 616—IP66; Model 615—IP67• For use in tension or compression• 6-wire (sense) circuit• Output standardised to ±0.1% APPLICATIONS• Hopper (tank weighing)• Hybrid scales• Belt weighing• Lever arm conversions• Material testing machines• Vibration filling equipment• Dynamometers

Read more less

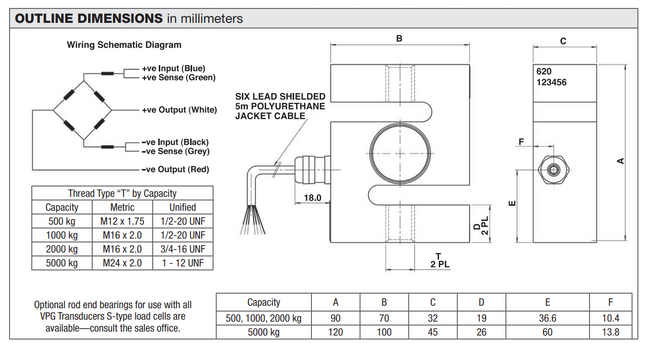

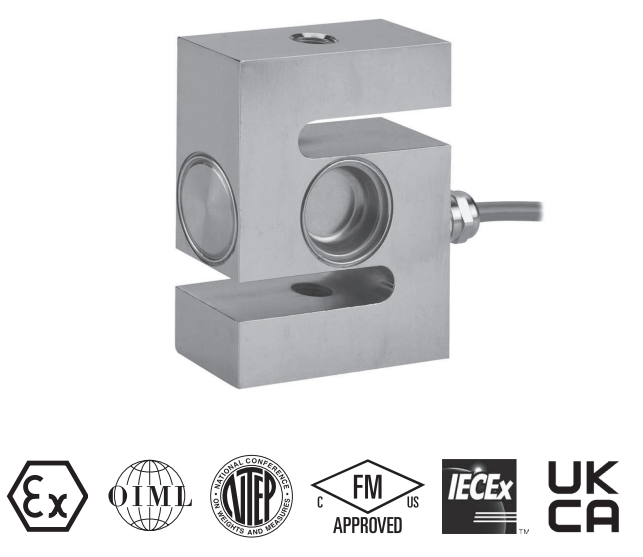

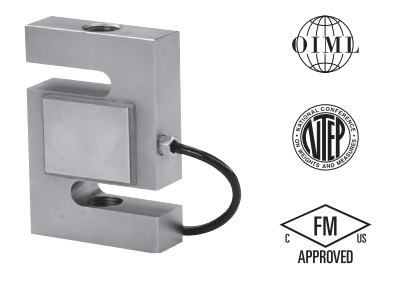

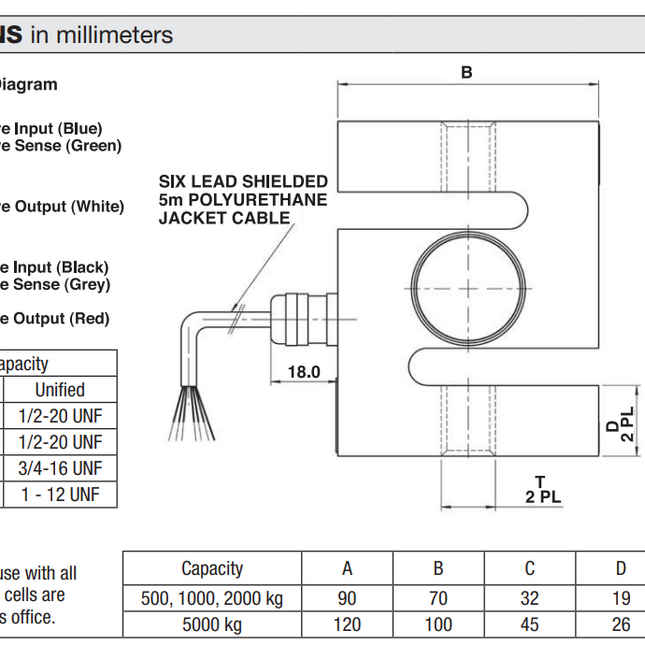

Title :- Model 620 S-Type Stainless Steel Load Cell Brand :- Tedea-Huntleigh DESCRIPTION Model 620 is a stainless-steel S-type load cell. Its welded sealing combined with high accuracy, make this load cell ideally suited for a wide range of applications of processweighing and force measurements. Approvals include OIML C3 (3000d); NTEP 3000d single and NTEP 5000d multiple. The six-wire cable includes two sense wires that compensate for changes in lead resistance due to temperature changes and cable extension. Model 620 offers a choice of bolt threads in metric or unified systems; see table below. FEATURES • Capacity range: 500–5000 kg• Stainless-steel construction• Sealed by welding to IP68• S-type design for use in tension and compression• OIML approved to 3000d (500–5000 kg)• NTEP approved to 5000d (500–5000 kg)• Choice of mounting threads metric or unified systems• 6-wire cable (sense circuit)• Optional- FM Approval, ATEX, IECEx and UKCAcertifications available. APPLICATIONS • Hopper (tank Weighing)• Hybrid scales• Belt weighing• Lever arm conversions• Material testing machines• Vibrations filling equipment• Dynamometers

Read more less

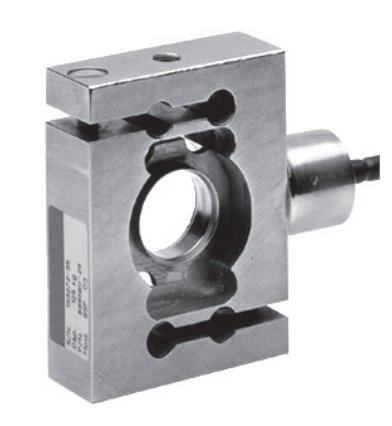

Title :- Model BSP Universal Load Cell Brand :- Revere DESCRIPTIONModel BSP is a stainless-steel S-type load cell that can be used in either tension or compression. The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process weighing applications. The fully-welded construction and water block cable entry ensure that this product can be used successfully in thedemanding environments found in the food, chemical, and allied process industries.The product fully meets the stringent Weights and Measures requirements throughout Europe.  FEATURES• Capacities: 50–5000 kg, 100–10k lbs.• Fully-welded, stainless-steel construction• Hermetically sealed, IP66 and IP68• Certified to OIML R-60, 3000d• Integrated overload stop (50–500 kg)• Current calibration output (SC version) ensures easyand accurate parallel connection of multiple load cells• Optional- FM Approved, ATEX and UKCA certified versions foruse in potentially-explosive atmospheres APPLICATIONS• Hybrid scales• Process weighing• Belt checkweighers• Dynamometers• Material testing machines

Read more less

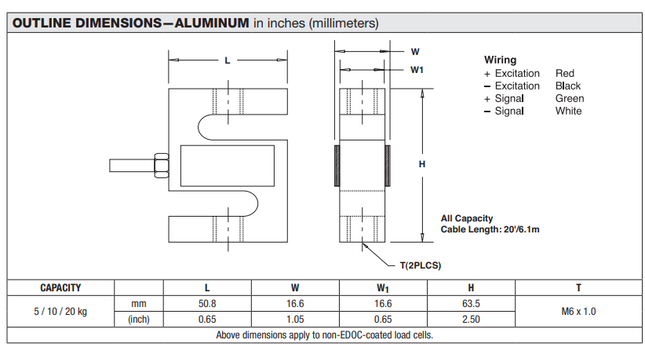

Title :- Model STC/STR S-Type Load Cell Brand :- Celtron DESCRIPTION The Model STC/STR is made of Aluminum, Alloy Steel or Stainless Steel, sealed to IP67 providing excellent protection against moisture and humidity. The S-type load cell, as the name indicates, can be easily identified by its S-shaped body. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized. FEATURES • Capacities: Aluminum construction—5, 10, 20 kg; Alloy Steel construction— 25 to 5000 kg, 250 to 40k lbs • Bi-directional (tension/compression)• Rationalized output• NTEP Class III 5000S, lllL10000 approval from 250 lbs to 20k lbs • Optional - Stainless steel available - FM approval available - EDOC option available; product appearance will differ from the photograph due to coating APPLICATIONS • Electro-mechanical conversion scales • Silo/hopper/tank weighing• Crane scales• Fork-lift scales• Dosing/illing• Universal material tester• Tensile/pulling force measurement

Read more less

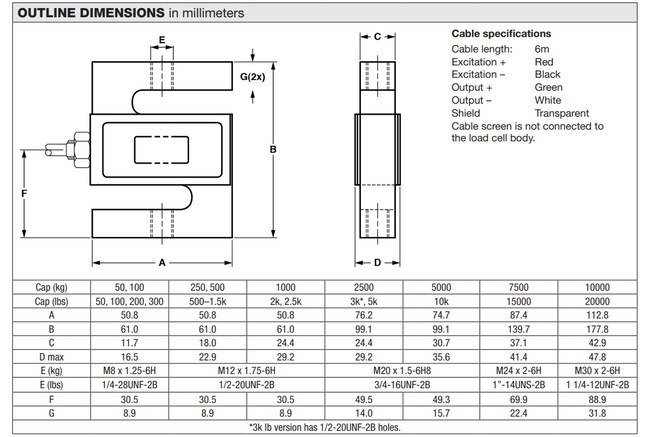

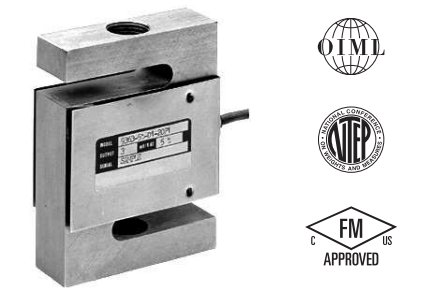

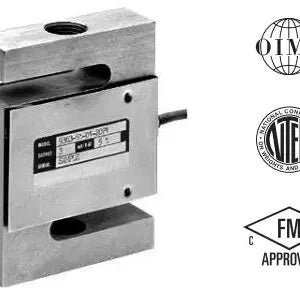

Title :- Model- 9363- S Type Universal Load Cell Brand :- Revere DESCRIPTION Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression. The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. The product meets the stringent Weights and Measures requirements throughout Europe and the USA. FEATURES• Capacities: 50 to 10,000 kg (50 to 20,000 lbs)• Stainless-steel construction• Suitable for compression and tension applications• Trimmed output versions standard• Sealing: IP67• Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions• Optional - FM approved for use in potentially explosive atmospheres  APPLICATIONS• Suspended hoppers• Overhead track scales• Force measurement

Read more less
