Single Ended Shear Beam

Title :- Model - 3510 Stainless Steel Shear Beam Load Cell Brand :- Tedea-Huntleigh DESCRIPTION The Model 3510 provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical, low profile range suitable for platform scale manufacture. Its low profile and fully welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos. The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell. Hermetically sealed against moisture, the construction of the Model 3510, in combination with a polyurethane dual shielded cable, enables continuous operation in demanding environments while maintaining a high operating specification. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. FEATURES • Capacities 300–5000 kg, 1000–5000 lbs• Stainless steel construction• OIML R60 and NTEP approved• Hermetically sealed to IP68 and IP69K• Specially designed for demanding environments• Optional - EEx ia IIC T6 hazardous area approval - FM and IECEx approvals available - 1100Ω impedance available  APPLICATIONS • Low profile platforms• Pallet truck weighing• Tank and silo weighing• Demanding environment weighing• Food industry weighing

Read more less

Title :- Model - 65023- Shear Beam Load Cell Brand :- Sensortronics DESCRIPTION  Model 65023 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications.  It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with ATEX, UKCA and FM approval. Nickel plating and full environmental sealing assures long term reliability. A stainless steel option is available for the lb versions for use in harsh or corrosive environments. Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics. FEATURES • Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg • “Thru” or “threaded” load hole configurations • Low sensitivity to axial loads • Low profile (ultra-low-profile available in 1000 to 2500 pound ranges) • Sensorgage™ sealed to IP67 standards • Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G. • Non-incendive ratings (without barriers!). • Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available    Optional  - Hazardous area approval  - Stainless steel versions available  - 65059 TWA companion weighing assemblies available  - EDOC product appearance will differ from the    photograph due to coating APPLICATIONS• Floor scales• Tank weighing • Bin and hopper weighing

Read more less

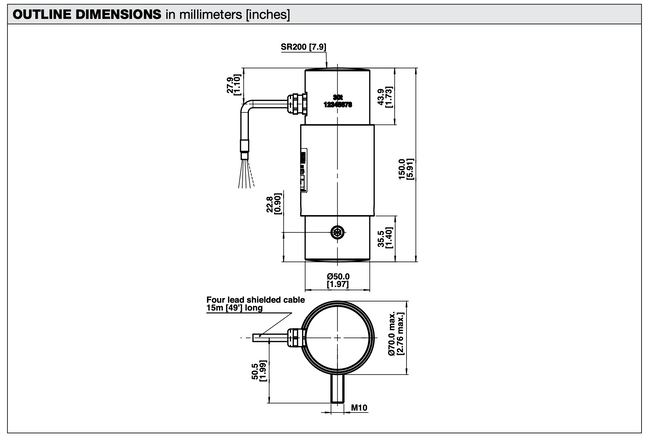

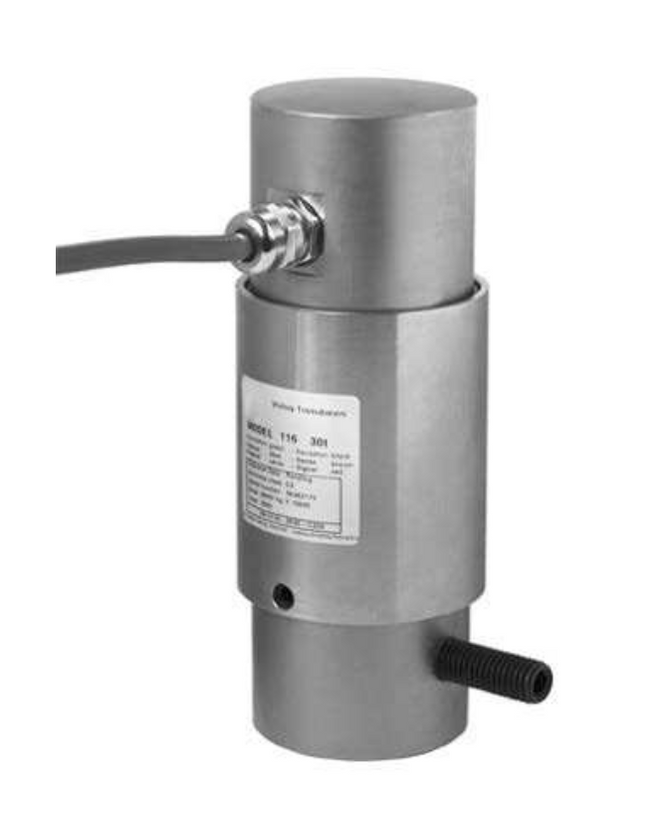

Title :- Model 116 Revere Rocker Column Load Cell Brand :-  Revere DESCRIPTION The Model 116 is a high-capacity single-column load cell, designed around a nickel-plated, alloy steel element . With its advanced environmental sealing, including redundant O-rings and high-grade potting material, provide excellent ingress protection. The Model 116 doesn't just perform, it excels. , it suitable for all heavy weighing applications and provides the user with excellent overall value.  Features You’ll Love: Capacity options of 30T and 40T to handle the heaviest loads. Self-restoring rocker column ensures smooth and reliable operation. Compact, high-performance design built to save space without sacrificing power. Environmentally sealed, IP66/IP68 (5 bar) Certified: OIML R60, with NTEP Class IIIL: 10,000d pending, for trusted performance. Current calibration output ensures easy and accurate parallel connection of multiple load cells Anti-rotation pin for added stability. Perfect for These Applications: Weighbridges Silo and hopper weighing Process weighing

Read more less

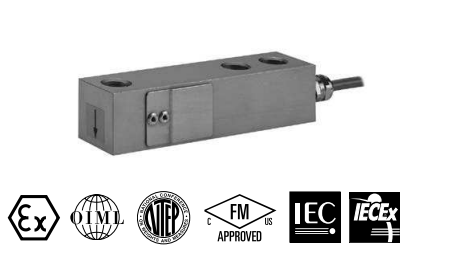

Title :- Model 3410/3411 Shear Beam Load Cell Brand :- Tedea-Huntleigh DESCRIPTION The Model 3410 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications. It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval. Nickel plating and full environmental sealing assures long-term reliability. A stainless steel option is available for the lb versions for use in harsh or corrosive environments. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. FEATURES • Capacities 250–2000 kg and 1000–4000 lbs• Steel and stainless steel construction• OIML R60 and NTEP approved• IP67 protection • Spiral bending support on cable• Optional - EEx ia IIC T6 hazardous area approval - FM and IECEx approvals available  - EDOC option available; product appearance will differ from the photograph due to coating APPLICATIONS • Low profile platforms• Pallet truck weighing• Tank and silo weighing

Read more less

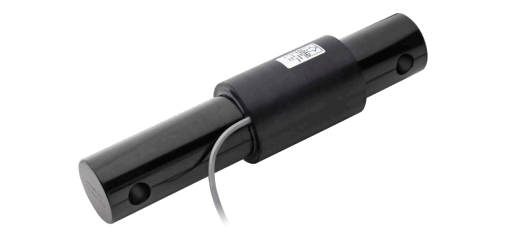

Title :- Model 5330 AgribarTM Single-Ended Bending Beam DESCRIPTIONThe Model 5330 AgribarTM is a heavy-duty, single-ended bending beam load cell, specifically designed for use in the agricultural industry. The beam is constructed from alloy steel with an electrodeposited organic coating, resulting in superior resistance against corrosion and abrasion. This load cell is highly durable and delivers an impressive temperature tolerance and maximum weight capacity. It is best suited for installation into large agricultural machinery, where it can be used to measure and control dispensing and accumulation of commodity,and more. FEATURES• Standard capacity: 6150 kg - Other capacities are available upon request• Coated alloy steel construction• EDOC (Electrodeposited organic coating) APPLICATIONS• Feed and stationary mixers• Manure spreaders• Harvest trailer• Bins, tanks and grain carts• TMR mixers and feedlot spreaders

Read more less

Title :- Model 60040 Low-Profile Bending Beam Brand :- Sensortronics DESCRIPTIONModel 60040 is a compact, low capacity, alloy-steel, high precision bending-beam load cell.The product’s small size and accuracy makes it ideal for applications that demand high performance from a small package. This load cell is commonly used in platform scales, conveyer scales, and varied process weighing applications.The product is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments. A mounting accessory, Model 65059-TWA, is available for Model 60048. FEATURES • Rated capacities of 25 to 500 pounds• Tension or compression loading capabilities• Compact, low profile design• Sensorgage™ sealed to IP65 standards• Factory Mutual System Approved for Classes I, II, III;Divisions 1 and 2; Groups A through G.Also, non-incendive ratings (without barriers)• Optional- Companion tank weighing assemblies available(Model 65059-TWA) APPLICATIONS• Bin and hopper weighing• Belt conveyor scales• Netweighing

Read more less

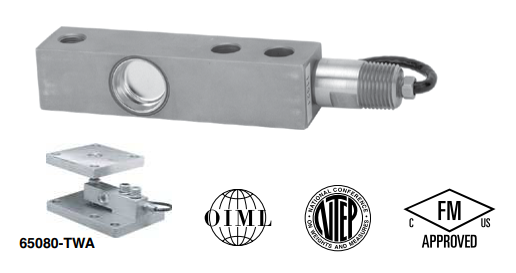

Title :- Model 65083 Stainless Steel, Welded Seal Shear Beam Load Cell Brand :- Sensortronics DESCRIPTIONThe Model 65083 provides the weighing industry with excellent protection necessary for today’s hostile environments in an economical low profile range suitable for platform scale manufacture. Its low profile and fully welded sealing, combined with high accuracy, makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos.The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell . Hermetically sealed against moisture, the construction of the model 65083 in combination with a polyurethane dual shielded cable, enables continuous operation in harsh environments while maintaining a highoperating specification. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.  FEATURES• Rated capacities of 1000 to 20,000 pounds• Stainless steel, welded seal construction• Trade certified for NTEP Class IIIL 10000 and III 5000divisions and OIML R-60 3000 divisions• Hostile or clean environment• Sealed to IP67, IP68 or IP69K rating• Factory Mutual System Approved for Classes I, II, III;Divisions 1 and 2; Groups A through G.Also, non-incendive ratings (No barriers!)• Optional- Integral conduit adaptor with teflon jacketed cableavailable- EDOC option available; product appearance will differfrom the photograph due to coating APPLICATIONS• Hostile environments: food and beverage processing,chemical and plastics processing,pharmaceutical and biomedical processing• Tank, bin and hopper weighing• Batching, blending and mixing systems

Read more less

Title :- Model 65083H Hermetically Sealed Stainless Steel Shear Beam Load Cell Brand :-  Sensortronics DESCRIPTION The Model 65083H provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical, low profile range suitable for platform scale manufacture.  Its low profile and fully welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos. The guide slots incorporated into the upper and lower =mounting faces enable manufacturers to easily position the load cell. Hermetically sealed against moisture, the construction of the model 65083H, in combination with a polyurethane dual shielded cable, enables continuous operation in demanding environments while maintaining a high operating specification. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.  FEATURES•    Rated capacities of 1000 to 10,000 pounds 500 kg to 5 metric tonnes•    Stainless steel, welded seal construction•    Interchangeable with Sensortronics model 65023 shear    beam•    Trade certified for NTEP Class III: 5000 Divisions and      Class IIIL: 10000 Divisions; OIML R60: 3000 Divisions •   Hermetically Sensorgage™ sealed to IP68 standards•   Cell Guard™ two year warranty •   Factory Mutual System Approved for Classes I, II, III;     Divisions 1 and 2; Groups A through G.     Also, non-incendive ratings (No barriers!) •    Optional -  Companion weigh module is Model 65080 Stainless     Steel TantaMount APPLICATIONS•   Hostile environments: Food and beverage processing Chemical and plastics                      processing Pharmaceutical and biomedical processing. •   Washdown and Clean-In-Place environments •   High performance weighing modules and assemblies

Read more less

Title :- Model 9102 Single-Ended Beam Load Cell  Brand :- Tedea-Huntleigh DESCRIPTIONThe Model 9102 is a stainless steel single-ended beam type load cell.This product is suitable for small and medium platform scales, overhead track scales and process weighing. The fully welded construction and water block cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical and allied process industries. FEATURES• Capacities: 200–2500 lbs.• Low profile, stainless steel construction• Hermetically sealed, IP66 and IP68• Certified to OIML R-60, 5000d and NTEP class III, 5000divisions• Current calibration output (SC version) ensures easyand accurate parallel connection of multiple load cells• Interchangeable with existing Model 5102• Optional - ATEX and FM certified versions are available for usein potentially explosive atmospheres APPLICATIONS• Platform scales• Belt scales• Silo/hopper weighing• Overhead track scales

Read more less

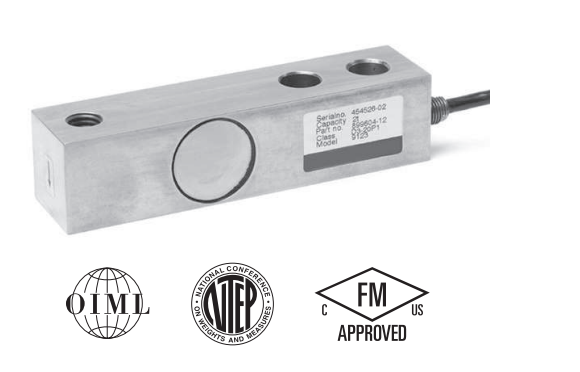

Title :- Model 9123 Single-Ended Beam Load Cell Brand :- Revere DESCRIPTION Model 9123 is a low-profile single-ended shear beam type load cell and is made from stainless steel. This load cell is suitable for small and medium platform scales, overhead track scales, hopper scales, and process weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. Ease of installation is made possible through the use of a partially-threaded hole to accept levelling feet, load buttons, or loading cables. FEATURES • Capacities: 500–5000 kg, 1k–20k lbs.• Low-profile construction• Certified to OIML R-60, 4000d and NTEP III,   5000 divisions• Sealing: IP67 (DIN 40.050)• Stainless-steel construction • Threaded load hole• Optional - FM certified for use in potentially explosive atmospheres APPLICATIONS • Low profile platforms• Pallet truck weighing• Tank and silo weighing

Read more less

Title :- Model ACB Single-Ended Beam Load Cell Brand :- Tedea-Huntleigh DESCRIPTION  The Model ACB is a high performance stainless steel beam type load cell. An integral mounting step removes the need for spacer plates and ensures optimum “bolt down” conditions. This product is suitable for small and medium platform scales, hybrid scales, pallet weighers, and process weighing.The fully welded construction and the cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and allied process industries.  FEATURES• Capacities: 500 kg, 1 t, 2 t, and 5 t• Low profile, stainless steel construction• Hermetically sealed, IP66 and IP68• Certified to OIML R60, 6000d• 1000 Ω bridge impedance• Current calibration output (SC) ensures easy andaccurate connection of multiple load cells• Integral mounting step• Optional - ATEX versions are available for use in potentiallyexplosive atmospheres, caused by gas or dust APPLICATIONS• Platform scales• Belt scales• Overhead track scales• Silo hopper weighing

Read more less

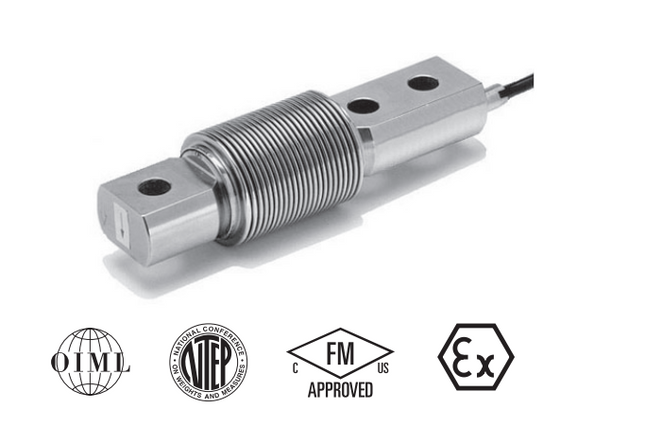

Title :- Model HBB Hermetically-Sealed Bending Beam Brand :- Tedea-Huntleigh  DESCRIPTION The Model HBB is a single-ended bending beam load cell designed for multiple cell applications, such as low profile platform scales or small tank scales, when used with proper mounting accessories. It is insensitive to side load and capable of reversed loading. The Model HBB is constructed of stainless steel or alloy steel. The strainless steel version is hermetically-sealed to IP68, providing excellent protection against corrosive and wash-down environments. FEATURES • Capacities: 10, 20, 30, 50, 75, 100, 200 and 250 kg• Stainless steel or alloy steel construction• Stainless steel version hermetically-sealed• High side load tolerance• Easy installation• OIML C3 approval from 50 kg to 250 kg APPLICATIONS • Platform scales (multiple load cells)• Silo / hopper / tank weighing• Packaging machines• Dosing / filling• Belt scales / conveyor scales

Read more less

Title :- Model SEB Single-Ended Beam Brand :- Celtron DESCRIPTIONThe Model SEB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading.The Model SEB is constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage. FEATURES• Capacities: 500 kg, 1 t, 1.5 t, 2 t, and 2.5 t• High side-load tolerance• Electroless nickel-plated-alloy tool steel• OIML C3 approval from 500 kg to 2.5 t• Optional - FM approval available APPLICATIONS• Truck/rail scales• Silo/hopper/tank weighing• Platform scales (multiple load cells)• Pallet truck scales• Packaging machines

Read more less

Title :- Model SHBxR Single-Ended Load Beam Brand :- Revere DESCRIPTION The Model SHBxR is a fully weld-sealed stainless steel bending beam type load cell. This product is suitable for low capacity platform scales, packaging machines, hybrid scales and process weighing. Fully welded construction and water block cable-entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied industries. This product meets the stringent Weights and Measures requirements throughout Europe. FEATURES • Capacities: 5–500 kg• Fully welded, stainless steel construction• Hermetically sealed, IP66 and IP68• Certified to OIML R-60, 4000d and NTEP class IIIL, 10000 divisions• Current calibration output (SC version) ensures easy and accurate parallel connection of multiple load cells• Optional - ATEX and FM certified versions are available for use in potentially explosive atmospheres  APPLICATIONS • Platform scales• Belt scales• Packaging machines• Silo/hopper weighing

Read more less

Title :- Model SSB Single-Ended Load Beam Brand :- Revere DESCRIPTION Model SSB is a stainless-steel single-ended shear beam type load cell. The robust product is suitable for a wide range of platform scales, pallet scales, overhead track scales, and process weighing applications. The fully-welded construction and water block cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and allied process industries. The product meets the stringent Weights and Measures requirements throughout Europe and the USA. FEATURES • Capacities: 0.5 t, 1 t, 2 t, 5 t, 10 t, 1k lbs., 2k lbs., 5k lbs., and 10k lbs. • Fully welded, stainless steel construction • Hermetically sealed, IP66 and IP68 • Certified to OIML R-60, 4000d and NTEP 10000d • Current calibration output (SC version) ensures easy and accurate parallel connection of multiple load cells • Digital version available (model SBC) • Optional - ATEX & UKCA Approval.  - FM approval  APPLICATIONS • Platform scales• Belt scales• Pallet scales• Overhead track scales• On-board weighing • Silo hopper weighing

Read more less

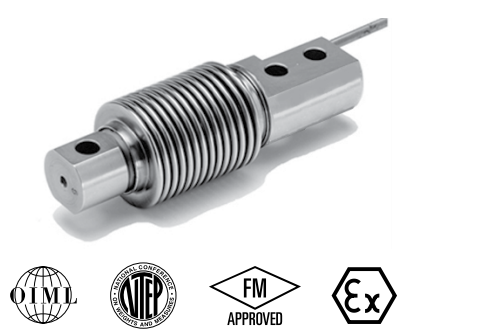

Title :- Model- 355 Welded, Hermetically Sealed Load Cell Brand :- Tedea-Huntleigh DESCRIPTION Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications. With its low profile, high accuracy and hermetic sealing, the Model 355 load cell is ideal for applications such as low-profile platforms, weighing and packing machines, conversion of mechanical and varied other applications where sealed cells are required. For hazardous environments, this load cell is available with FM Approval, ATEX, IECEx and UKCA certifications as an option. Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. FEATURES • Capacities: 5–500 kg• Stainless steel construction• OIML R60 and NTEP approved• IP68 protection• Optional - FM Approval, ATEX, IECEx and UKCA certifications available.  MAIN APPLICATIONS• Low-profile platforms• Loss-in-weight feeders• Marine and hybrid scales• Belt weighers• Demanding food industry environments

Read more less

Title :- Revere Single Point Load Cell - Model 5123 Brand :- Revere DESCRIPTION Model 5123 is a low profile single-ended shear beam type load cell made from nickel-plated tool steel . This product is suitable for small and medium platform scales, overhead track scales, hopper scales, and process weighing applications . Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area . Ease of installation is made possible through the use of a partially threaded hole to accept levelling feet, load buttons, or loading cables. FEATURES • Capacities: 500–5000 kg, 1k–10k lbs.• Low profile construction• Certified to OIML R-60, 3000d and NTEPclass III, 3000 divisions• Sealing: IP67 (DIN 40.050)• Nickel-plated alloy steel construction• Threaded load hole• Optional- FM certified for use in potentiallyexplosive atmospheres APPLICATIONS • Floor scales• Tank weighing• Bin and hopper weighing

Read more less

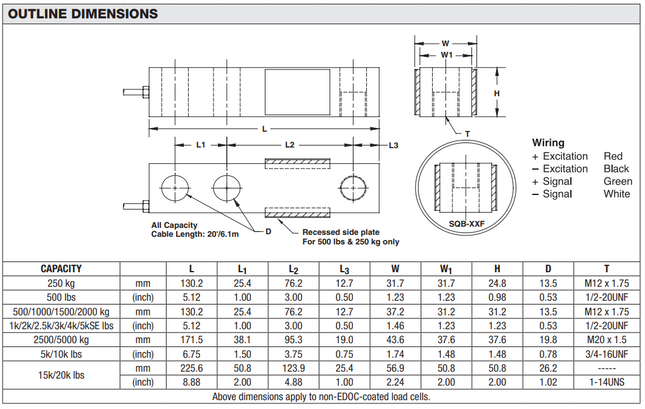

Title :- SQB- Single-Ended Beam Brand :- Celtron DESCRIPTION  Model SQB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading. Models SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage. Features You’ll Love: • Capacities: 500 to 20k lbs, 250 to 5000 kg • High side-load tolerance• Electroless nickel-plated-alloy tool steel• NTEP Class III 5000M for SQB, SQB-F and SQB-SS available from 1k to 10k lbs• SQB-SS stainless steel construction • Optional - FM approval - EDOC product appearance will differ from the    photograph due to coating APPLICATIONS• Truck/rail scales• Silo/hopper/tank weighing• Platform scales (multiple load cells)• Pallet truck scales• Packaging machines

Read more less
