Double Ended Shear Beam

Title :- Model 4158 Alloy Steel Double-Ended Shear Beam Brand :- Tedea-Huntleigh DESCRIPTIONThe Model 4158 is a double-ended shear beam load cell designed for high capacity silo weighing applications. This high accuracy load cell is designed to meet NTEP standards. When combined with suitable mounting arrangements, this load cell will provide a simple, accurate and reliable weighing system.Nickel plated and full environmental sealing assure long term reliability. For hazardous environments, this load cell has a EEX ia IIC T6 approved option. When used in conjunction with Tedea-Huntleigh’s custom designed mount, the unit combines ease of installation with both side load and lift-off protection. FEATURES • Capacities 10k–75k lbs• Low profile design for weigh bridge and silo applications• Nickel plated alloy steel construction• NTEP approved• IP67 protection• Optional - EEx ia IIC T6 hazardous area approval - FM and IECEx approvals available APPLICATIONS• Weigh bridges• Tank and silo weighing

Read more less

Title :- Model 5103 Double-Ended Beam Load Cell Brand :- Revere DESCRIPTION Model 5103 transducers are double-ended, center-loaded shear beam load cells and are constructed of nickel plated alloy steel. These products are suitable for tank weighing systems, low-cost weighbridges, and axle weighers. A reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. A specially-designed mounting arrangement is available, providing the ideal solution for vessel / tank weighing. FEATURES • Capacities: 5k to 250k lbs• Low-profile construction• Nickel-plated alloy steel construction• Certified to OIML R60 3000d, NTEP CoC—10000d• Sealing: IP67 (DIN 40.050) • Optional - FM approved for use in hazardous locations  - ATEX & UKCA versions for use in potentially-explosive atmospheres - EDOC product appearance will differ from the photograph due to coating APPLICATIONS • Platform scales• On-board weighing• Weighbridges • Silo hopper weighing

Read more less

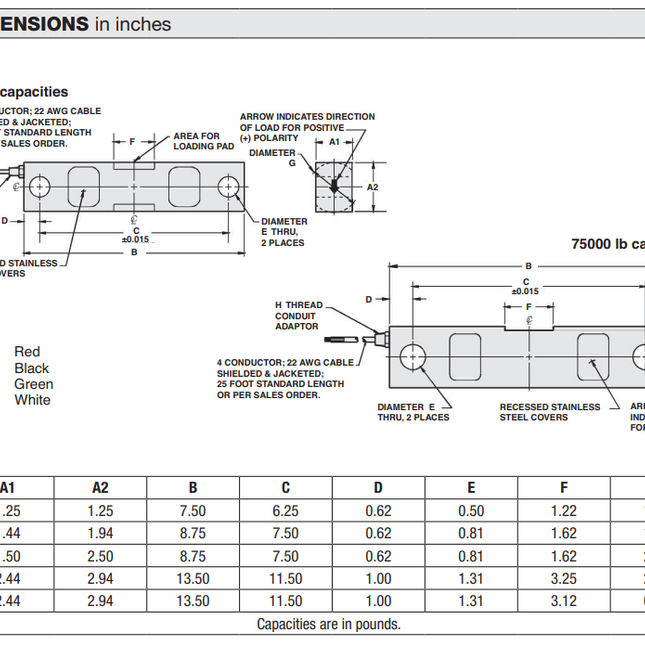

Title  :- Model 5203 Double-Ended Beam Load Cell Brand :- Revere  DESCRIPTION The Model 5203 is a double-ended shear beam type load cell. A reliable sealing and mechanical protection of the strain gage area is ensured by the use of potting compound with a metal cover. The center-loaded design results in minimal sensitivity to off-center forces. FEATURES • Capacities: 1k to 75k lbs • Environmental protection: IP67 (DIN 40.050)• Material: nickel-plated steel• Center-loaded design • Optional - FM certified versions are available for use in potentially explosive atmospheres APPLICATIONS • Silo, tank, hopper weighing• Custom system designs• Low capacity vehicle scales

Read more less

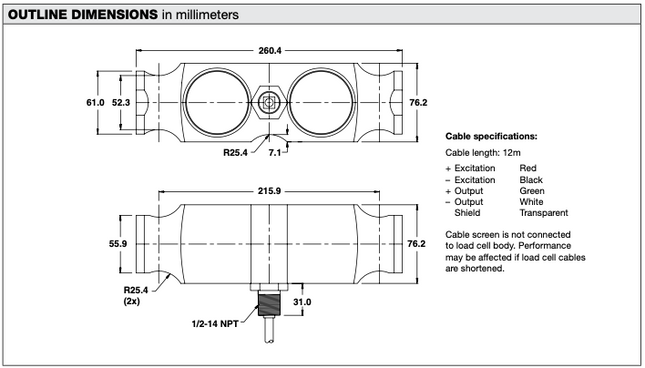

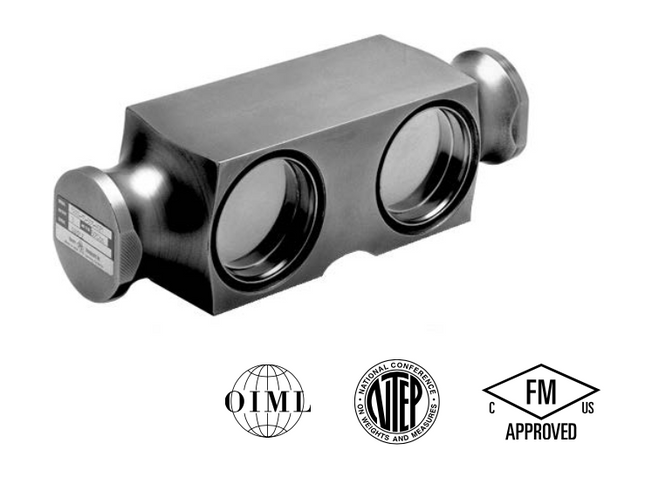

Title :- Model 5223 Double-Ended, Alloy Steel, Load Cell Brand :- Revere FEATURES • Capacities: 50k to 100k lbs.• Nickel-plated element• Certified to OIML R60 3000d and NTEP classIIIL 10000 divisions• Sealing: IP67 (DIN 40.050)• Low profile, self-checking, and self-centering• Optimized design specially for weigh-bridge use• Optional - Conduit adapter - FM approved for use in potentially explosiveatmospheres  APPLICATIONS • Truck scales• Railroad track scales• “Legal-for-Trade” tank, bin and hopper weighing DESCRIPTION The Model 5223 is a hermetically sealed, end loaded , center supported double-ended shear beam . This product is suitable for a wide range of truck and rail scales. It is designed to use parallel link loading, considered by many weighing experts to be advantageous when compared to other loading techniques . Fully welded stainless steel seals ensure high environmental integrity and provided that additional cable sealing is used, occasional submersion can occur without damage . These products meet the stringent Weights and Measures requirements throughout Europe.

Read more less

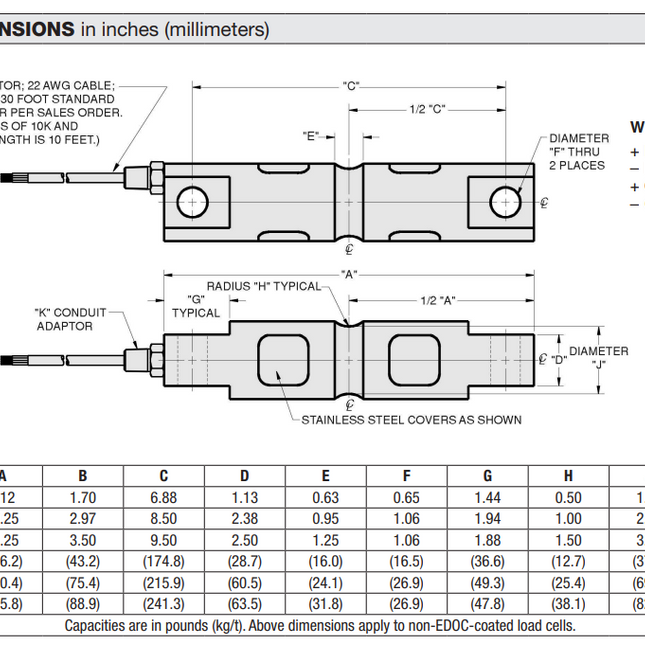

Title :- Model 60058 Double-Ended Shear Beam Load Cell Brand :- Sensortronics  DESCRIPTION The Model 60058 is a mid to high capacity nickel-plated alloy steel, double-ended shear beam load cell. This product is designed for use in industrial and out door environments. Nickel plated steel construction limits corrosion from outdoor use. The IP67 sealing makes it suitable for applications that are subject to high-pressure wash down. Tank weighing is made simple when this load cell is combined with the EZ mount mounting hardware it was designed for. Its high accuracy and availability in high capacities make it ideal for certified truck and rail scales. This load cell is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments. This load cell is certified for Legal For Trade applications by the American NTEP standards. FEATURES • Rated capacities of 5,000 to 100,000 pounds, 2.3 to 45 metric tonnes • High quality alloy tool steel construction • Nickel plated for outstanding corrosion resistance • Replacement for RTI model 5103 (EZM1) • Integral conduit adaptor • Sensorgage™ sealed to IP67 standards• Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G. Also, non-incendive ratings (No barriers!) • Optional - EDOC option available; product appearance will differ from the photograph due to coating APPLICATIONS • Tank, bin, and silo weighing • Railroad track scales • Truck scales

Read more less

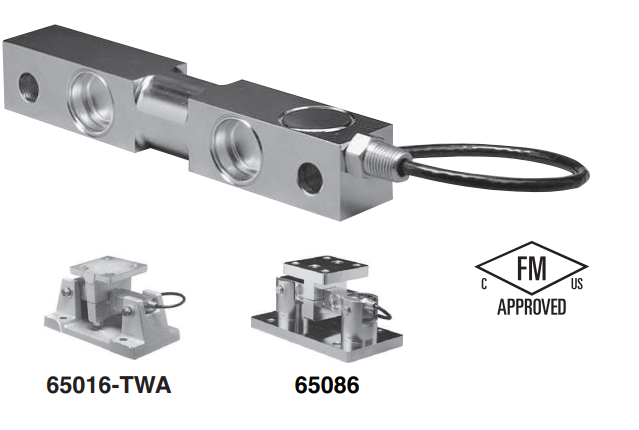

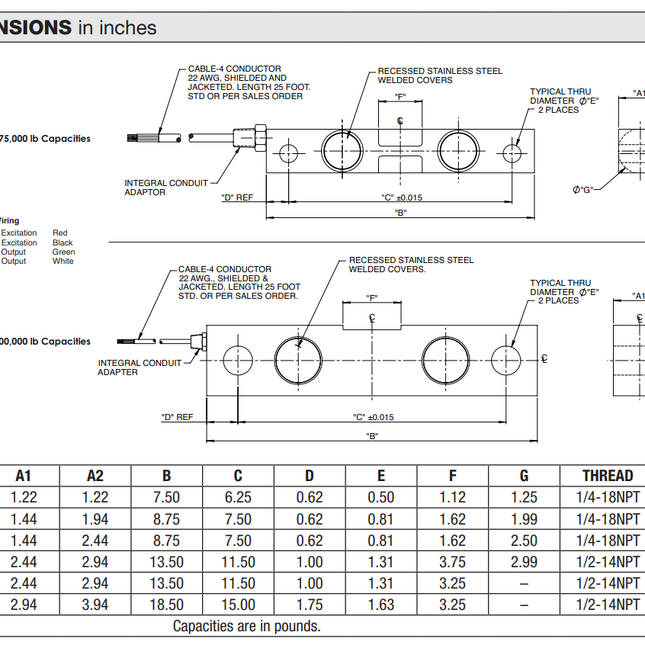

Title :- Model 65016-W Welded, Stainless Steel Double-Ended Shear Beam Load Cell Brand :- Sensortronics DESCRIPTION Model 65016-W is designed to be center-mounted with double-linked loading. This design provides free movement in all horizontal directions, virtually eliminating binding or friction points. The double Shear Beam design gives an excellent performance for high capacity loading.  The stainless-steel construction and IP67 rating make this load cell ideal for any environmental installation. FEATURES • Rated capacities of 1000 to 100,000 pounds • Stainless steel, welded seal construction • Insensitive to side loads and bending moments • High output—well suited to high dead load/low live load applications • Load cells have matched outputs for multi-cell systems • Integral conduit adaptor• Sensorgage™ sealed to IP67 standards• Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G.• Non-incendive ratings (without barriers)• Optional  - Fully hermetically sealed version APPLICATIONS • Hostile environments:    Food and beverage processing    Chemical and plastics processing Pharmaceutical and biomedical processing • Tank, bin, and silo weighing • Batching, blending and mixing systems • Level and inventory monitoring

Read more less

Title :- Model 65040W Steel, Welding Sealed Double-Ended Shear Beam Load Cell Brand :- Sensortronics  DESCRIPTION Model 65040W is a mid to high-capacity welded stainless-steel, double-ended shear beam load cell. The product is designed for use in certified truck and rail scales and is available in capacities ranging from 25k through 75k lbs. (For higher capacities consult with the factory.)  This load cell is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially-explosive environments. This load cell is certified for Legal for Trade applications by American NTEP standards. FEATURES • Rated capacities of 25,000 to 75,000 lbs. (Higher capacities are also available)• Welded seal, stainless-steel construction • Center supported, external pivot loading• Integral conduit adaptor • Trade certified for NTEP Class IIIL: 10000 divisions • Sensorgage™ sealed to IP68 standards• Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G. • Non-incendive ratings (without barriers) APPLICATIONS • Hostile environments:   Food and beverage processing   Chemical and plastics processing   Pharmaceutical and biomedical processing • Truck scales • Railroad track scales

Read more less

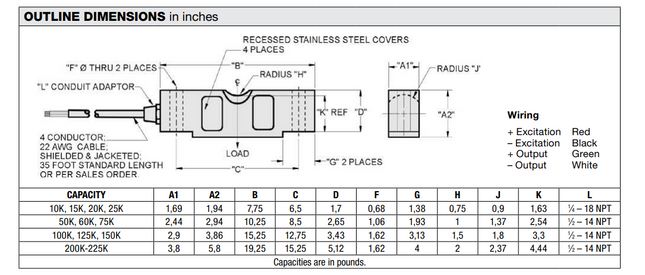

Title :- Model 65058 Double-Ended Shear Beam Load Cell Brand :-  Sensortronics  DESCRIPTION  The Model 65058 is a mid to high capacity, nickel-plated alloy steel, double ended Shear beam load cell. This product is designed for use in certified truck and rail scales and is available in capacities ranging from 10,000 to 250,000 lbs. This load cell is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments. This load cell is certified for legal for trade applications by both American NTEP and International OIML standards. FEATURES • Rated capacities of 10,000 to 225,000 lbs• Center-link loaded• Integral conduit adaptor• Trade certified for NTEP Class IIIL: 10000 divisions; Class III: 5000 divisions and OIML R60 3000 divisions in 20,000 to 100,000 lbs range• Sensorgage™ sealed to IP67 standards• Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G. Also, non-incendive ratings (No barriers!).• Optional - EDOC (Electrodeposited organic coating): product appearance will differ from the photograph due to coating - 65058S stainless steel, welded seal version available - 65058-TSA companion assemblies for vehicle scales - 65069-TWA companion assemblies for vessel weighing APPLICATIONS • Truck scales• Railroad track scales• Precision tank, bin and silo weighing• Level and inventory monitoring

Read more less

Title :- Model 9103 Double-Ended Beam Load Cell Brand :-  Revere DESCRIPTION  Model 9103 is a double-ended, center-loaded shear beam type load cell constructed of stainless steel. This product is suitable for tank weighing systems, low-cost weighbridges and axle weighers. A reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. A specially-designed mounting arrangement is available, providing the ideal solution for vessel/tank weighing. FEATURES • Capacities: 5k to 150k lbs • Low-profile construction• Stainless-steel construction• Certified to NTEP class IIIL, 10000 divisions• Sealing: IP67 (DIN 40.050)• Optional - FM Approved and ATEX & UKCA certified versions for use in potentially-explosive atmospheres  - EDOC option available; product appearance will differ from the photograph due to coating APPLICATIONS • Platform scales • On-board weighing • Weighbridges • Silo hopper weighing

Read more less

Title :- Model 9203 Double-Ended Beam Load Cell Brand :- Revere DESCRIPTIONThe Model 9203 is a stainless steel double-ended shear beam type load cell.A reliable sealing and mechanical protection of the skin gage area is ensured by the use of a potting compound with a metal cover. The center-loaded design results in minimal sensitivity to off-center forces. FEATURES • Capacities: 1k to 75k lbs• Environmental protection: IP67 (DIN 40.050)• Material: stainless steel• Center loaded design• Welded covers for all capacities• Optional - FM certified versions are available for use inpotentially explosive atmospheres APPLICATIONS• Silo, tank, hopper weighing• Custom system designs• Low capacity vehicle scales

Read more less

Title :- Model 9303 Double-Ended Beam Load Cell Brand :- Revere DESCRIPTIONThe Model 9303 is a link-loaded stainless steel double ended shear beam type load cell, specifically designed for truck scales, track scales and high capacity weighing applications. A reliable sealing and mechanical protection of the strain gage area is ensured by the use of a potting compound with a metal cover.This load cell is rated intrinsically safe by FM approvals, making it suitable for use in potentially explosive atmospheres. FEATURES• Capacities: 10k to 125k lbs• Environmental protection: IP67 (DIN 40.050)• Material: Stainless steel• Certified by NTEP class IIIL, 10000 divisions• Optional - FM approved for use in potentially explosiveatmospheres APPLICATIONS• Silos, tanks and hoppers• Weighbridges

Read more less

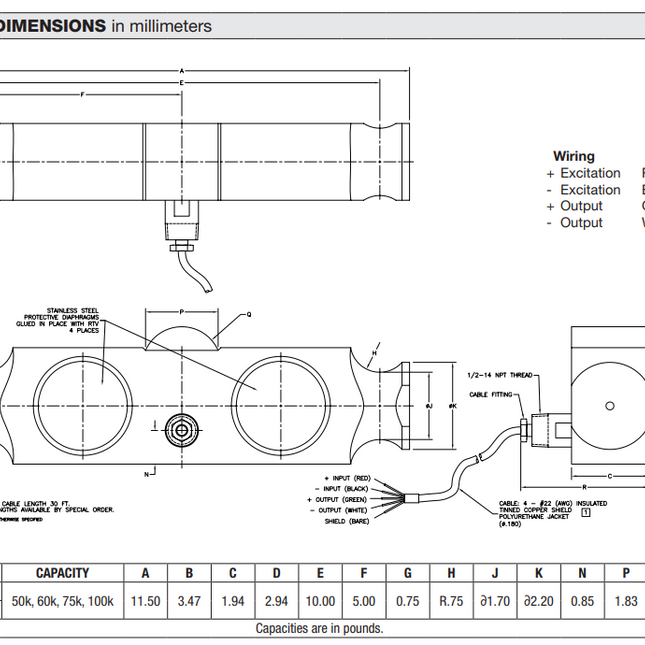

Title :- Model 9903 Double-Ended Shear Beam Load Cell Brand :-  Revere FEATURES• Capacities: 50k to 100k lbs• Stainless steel construction APPLICATIONS• Hopper/silo/tank weighing• Weighbridges DESCRIPTIONThe Model 9903 is a double-ended beam-type loadcell with a low profile design, specifically designed for applications where space is limited or special mounting required.

Read more less

Title :- Model CLB Double-Ended Shear Beam  Brand :- Celtron  DESCRIPTION The double-ended mounting provides good restraint for possible movement of the tanks and, in many cases, eliminates the need for check rods.  The shear beam design gives excellent performance for high capacity loading.  CLB is constructed of alloy steel and is fully potted with special chemical compounds to IP67 providing excellent protection against moisture and humidity. FEATURES •    Capacities 20k–125k lbs •    Free of horizontal movement •    Insensitive to side load •    Electroless nickel-plated alloy tool steel •    NTEP Class lllL 10000 approval from 20k lbs to 125k lbs•    Optional❍ FM approval available  APPLICATIONS •    Truck/rail scales •    Silo/hopper/tank weighing •    Fork-lift scales

Read more less

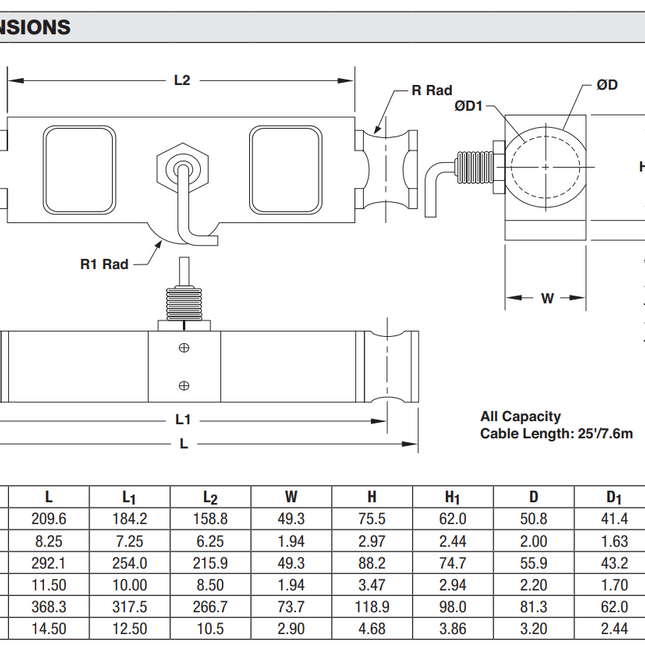

Title :- Model DLB Double-Ended Link Shear Beam Brand :- Celtron DESCRIPTION The Model DLB is designed to be center-mounted with double-linked loading. This design provides free movement in all horizontal directions virtually eliminating binding or friction points. The Shear Beam design gives excellent performance for high capacity loading.  The Model DLB is constructed of alloy steel and is fully potted and sealed with special compounds to IP67, providing excellent protection against moisture and humidity. FEATURES • Capacities 25k–125k lbs • Center-mounted with double-linked shear beam design • Free of horizontal movement • Insensitive to side load • Electroless nickel-plated alloy tool steel • NTEP Class lllL 10000 for whole series • Optional - Surge protection optional for 60k lbs  - FM approval available  APPLICATIONS • Truck/rail scales • Silo/hopper/tank weighing • Fork-lift scales

Read more less

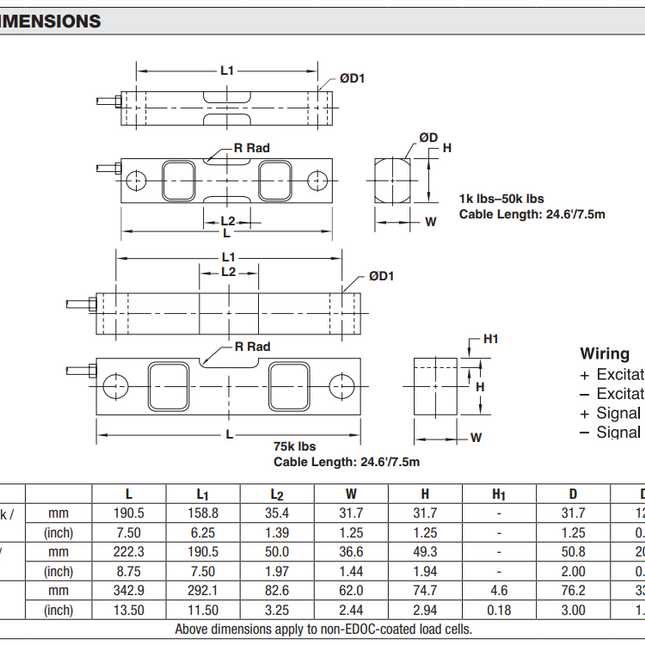

Title :- Model DSR Double-Ended Shear Beam Brand :- Celtron DESCRIPTION Model DSR is constructed of alloy tool steel and is potted to IP67 providing excellent protection against moisture and humidity.  The double-ended mounting provides a good restraint to possible tank movements and, in many cases, eliminates the need for check rods.  The shear beam design gives an excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell applications. FEATURES • Capacities 1k–75k lbs• Double-ended center-load shear beam design• Rationalized outputs• Free of horizontal movement • Insensitive to side load• Electroless nickel-plated alloy tool steel • Optional - Hermetically sealed version  - Stainless steel version  - FM approval - EDOC product appearance will differ from the photograph due to coating APPLICATIONS• Silo/hopper/tank weighing

Read more less

Title :- Model MDB Miniature Double-Ended Beam Brand :- Celtron DESCRIPTIONThe Model MDB is designed for truck and rail scales in high capacities with low profile. The “load-ball” design means the model is insensitive to side load forces. The Model MDB is constructed of alloy steel and is fully potted and sealed with special chemical compounds to IP67, providing excellent protection against water and moisture attack. With hermetic sealing, the MDB is rated for IP68 providing excellent protection against corrosive and wash-down environments. FEATURES• Capacities: 10–50 t• High side load tolerance• Electroless nickel-plated alloy tool steel• Surge protection optional for 10 t to 50 t• Optional - Hermetically sealed version available - FM approval available APPLICATIONS• Truck/rail scales• Silo/hopper/tank weighing
