Description

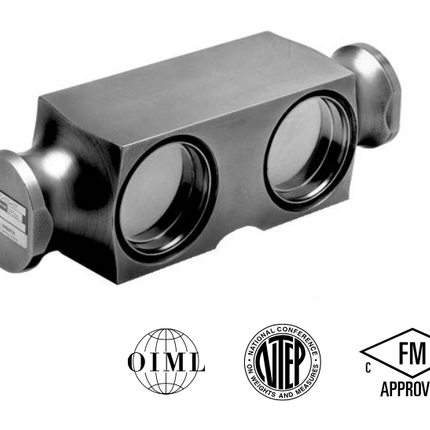

Title :- Model 5223 Double-Ended, Alloy Steel, Load Cell
Brand :- Revere
FEATURES
• Capacities: 50k to 100k lbs.
• Nickel-plated element
• Certified to OIML R60 3000d and NTEP class
IIIL 10000 divisions
• Sealing: IP67 (DIN 40.050)
• Low profile, self-checking, and self-centering
• Optimized design specially for weigh-bridge use
• Optional
- Conduit adapter
- FM approved for use in potentially explosive
atmospheres
APPLICATIONS
• Truck scales
• Railroad track scales
• “Legal-for-Trade” tank, bin and hopper weighing
DESCRIPTION
The Model 5223 is a hermetically sealed, end loaded , center supported double-ended shear beam . This product is suitable for a wide range of truck and rail scales. It is designed to use parallel link loading, considered by many weighing experts to be advantageous when compared to other loading techniques . Fully welded stainless steel seals ensure high environmental integrity and provided that additional cable sealing is used, occasional submersion can occur without damage . These products meet the stringent Weights and Measures requirements throughout Europe.
