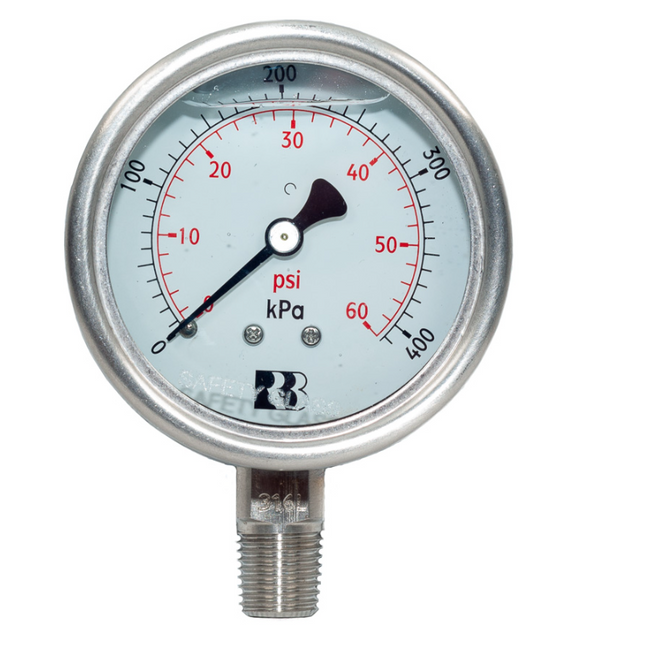

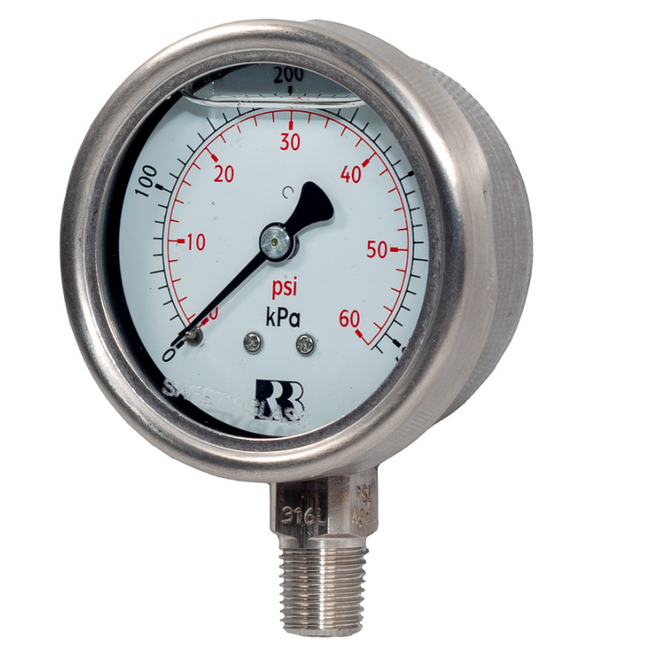

The AD-D-2 Pressure Gauge features a 63mm dial with a 304 stainless steel case, 316 stainless steel bourdon tube and connection, and a glass lens. It has a dual scale (kPa/psi) and a ¼” NPT lower mount. The accuracy is ±1.6% of full scale, and it is supplied dry (liquid filling is available upon request).  Available pressure ranges start from -100/0 kPa to 0/100,000 kPa (refer to the data sheet for all available ranges). Optional features include back flange, front flange, and liquid filling.  Technical Specifications                                                                                                                                Brand Ross Brown Model P252-2 / AD-D-2 Type Pressure Gauge Working Temperature Up to 60 Degree C (use pigtail for higher temps) Dial Size 63mm Dial Label Black Print (kPa), Red Print (PSI) on White Background Ranges -100-0kPa to 0-160,000kPa Over Range Protection 125% of full scale up to 10,000 kPa115% of full scale above 10,000 up to 60,000 kPa110% of full scale above 60,000 up to 100,000 kPa Connection 1/4" NPT (Lower Mount) Accuracy +/- 1.6% Material Specifications Case & Bezel 304 Stainless Steel Connection 316 Stainless Steel Window Shatter Proof Safety Glass

Read more less

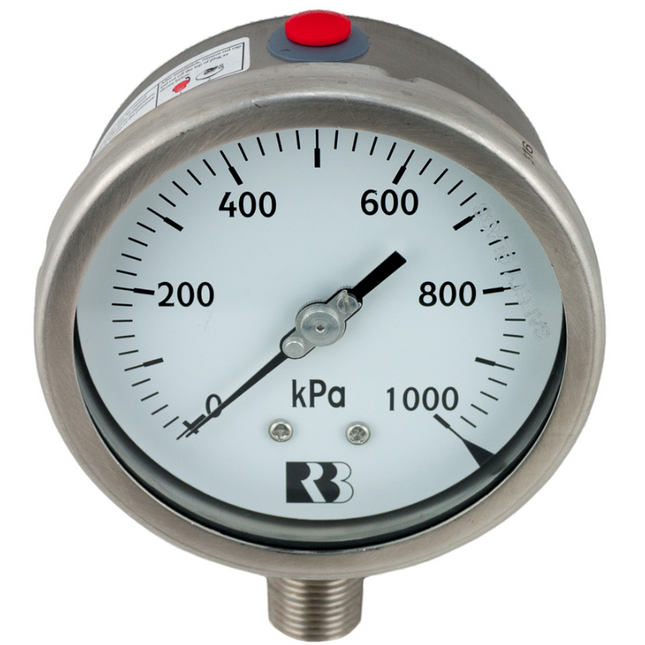

The AL-F-2 Pressure Gauge features a 100mm dial with a 304 stainless steel case, 316 stainless steel bourdon tube and connection, and laminated safety glass. It offers a dual scale (kPa/psi) and comes with a ½” NPT lower mount. The accuracy is ±1.0% of full scale, and it is provided dry (liquid filling available upon request). The pressure ranges start from -100/0 kPa to 0/160,000 kPa (please refer to the data sheet for a full list of available ranges). Optional features include back flange, front flange, liquid filling, rubber boot, and polycarbonate lens. Technical Specifications Brand Ross Brown Model P252-4 / AL-F-2 Type Pressure Gauge Working Temperature Up to 60 Degree C (use pigtail for higher temps) Dial Size 100mm Dial Label Black Print (kPa), Red Print (PSI) on White Background Ranges -100-0kPa to 0-160,000kPa Over Range Protection 125% of full scale up to 10,000 kPa115% of full scale above 10,000 up to 60,000 kPa110% of full scale above 60,000 up to 100,000 kPa Connection 1/2" NPT (Lower Mount) Accuracy +/- 1.0% Material Specifications Case & Bezel 316 Stainless Steel Connection 316L Stainless Steel Window Shatter Proof Safety Glass

Read more less

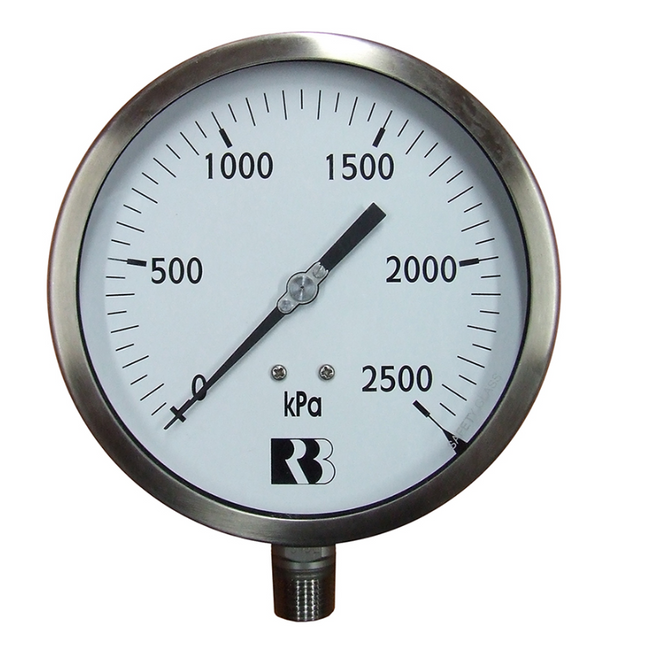

The AL-H-2 Pressure Gauge features a 160mm dial with a 304 stainless steel case, 316 stainless steel bourdon tube and connection, and laminated safety glass. It has a dual scale (kPa/psi) and a ½” NPT lower mount. The gauge offers an accuracy of ±1.0% of full scale and is supplied dry (liquid filling available upon request). Pressure ranges begin at -100/0 kPa and go up to 0/160,000 kPa (refer to the data sheet for all available ranges). Optional features include a back flange and liquid filling. Technical Specifications Brand Ross Brown Model P252-6 / AL-H-2 Type Pressure Gauge Working Temperature Up to 60 Degree C (use pigtail for higher temps) Dial Size 150mm Dial Label Black Print (kPa), Red Print (PSI) on White Background Ranges -100-0kPa to 0-160,000kPa Over Range Protection 125% of full scale up to 10,000 kPa115% of full scale above 10,000 up to 60,000 kPa110% of full scale above 60,000 up to 100,000 kPa Connection 1/2" NPT (Lower Mount) Accuracy +/- 1.0% Material Specifications Case & Bezel 304 Stainless Steel Connection 316L Stainless Steel Window Shatter Proof Safety Glass

Read more less

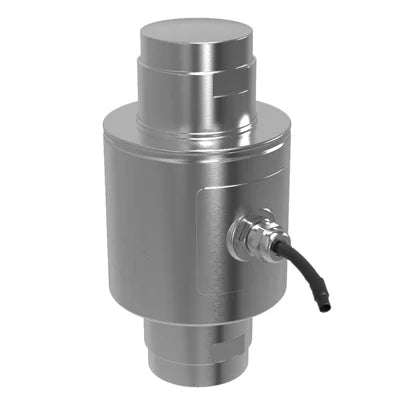

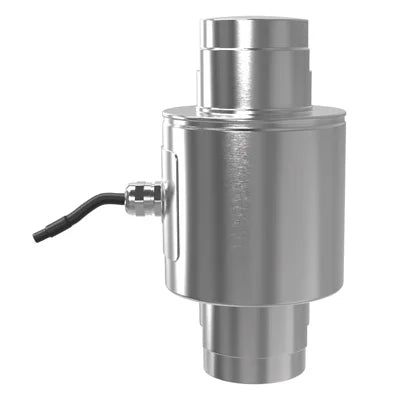

Title :- ASC2 Compression Load Cell Brand :- Revere DESCRIPTION The Model ASC2 is a single column, stainless steel compression load cell fully compatible with original Model ASC. This product is suitable for use in road and rail weighbridges and process weighing applications. The fully welded construction and built-in surge protection ensures that this product can be used successfully in many demanding environments. This load cell meets the stringent Weights and Measures requirements throughout Europe and the Americas. FEATURES • Capacities: 30, 40 and 50 t• Self-aligning, stainless steel single column• Hermetically sealed, IP66/68/69K• Certified to OIML R60 5500d and NTEP IIIL/10,000 d• Built-in surge protection• Current calibration output ensures the easy and accurate parallel calibration of multiple load cells• Compatible with original Model ASC • Optional - Digital version available (Model DSC2)  - ATEX and IECEx approvals available APPLICATIONS • Weighbridges• Process weighing

Read more less

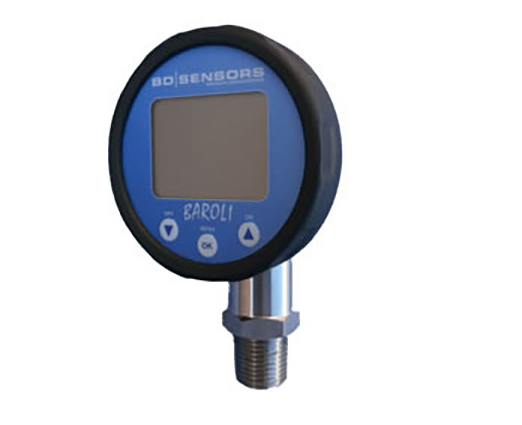

Battery powered Digital Pressure Gauge with rotatable display module and plastic housing. It is easily operated via three pushbuttons in the touchpad. In addition to showing information about the minimum and maximum pressures of the process, many different units can be displayed (eg Bar, mbar, PSI, mWs, inHg, cmHg, mmHg, Mpa). Technical Specifications Brand Baroli Model BD Series Type Digital Pressure Gauge Enclosure Protection IP65 Dial Size 75mm Display LC display, visible range 40 x 30 mm4.5-digit 7-segment main display, digit height 11 mm, range of indication ±199996-digit 14-segment additional display, digit height 7.5 mm Ranges 0 - 100mbar to 0 - 600 Bar Connection 1/4" BSP or NPT, 1/2" NPT Accuracy 0.125 / 0.250 % FS BFSL(0.25 / 0.50 % FS IEC 60770) Material Specifications Case & Bezel PA 6.6, polycarbonate Connection Stainless Steel 1.4571 (316Ti), Stainless Steel 1.4435 (316L) or ceramics Al2O3 96 % Seals FKM (standard), EPDM, NBR

Read more less

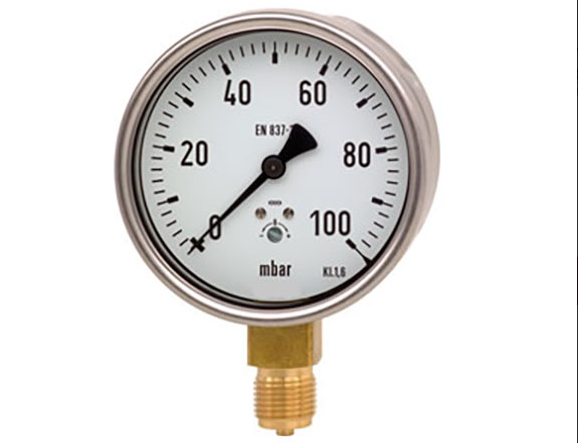

The KPCh Low Pressure Capsule Gauge is not suitable for liquids and features a 304 stainless steel case, with a capsule and connection made from brass, copper/beryllium, and Buna-N. It comes with an acrylic window and a scale in kPa only. The gauge offers a ¼” BSPT lower (LM) or center-back-mount (CBM) connection, with an accuracy of ±1.6% of full scale. It is supplied dry. The pressure ranges start at -60/0 kPa and go up to 0/60 kPa (please refer to the data sheet for all available ranges). Optional features include a back flange and a front flange for panel mounting. Technical Specifications Brand Ross Brown Model KPCh Type Pressure Gauge Working Temperature Up to 60 Degree C (use pigtail for higher temps) Dial Size 63mm Dial Label Black Print (kPa) on White Background Ranges 0-2.5kPa to 0-60kPa Over Range Protection 130% of full scale Connection 1/4" BSPT (Lower Mount) Accuracy +/- 1.6% Material Specifications Case & Bezel 304 Stainless Steel Connection Brass Window Acrylic

Read more less

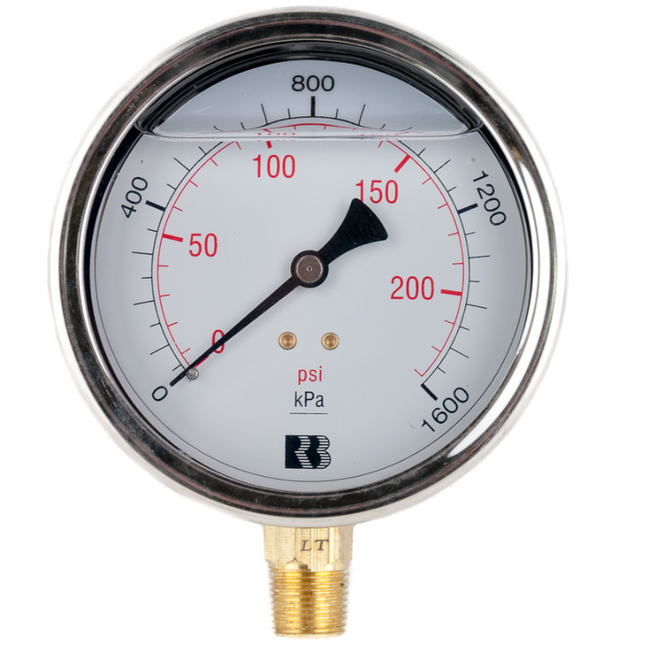

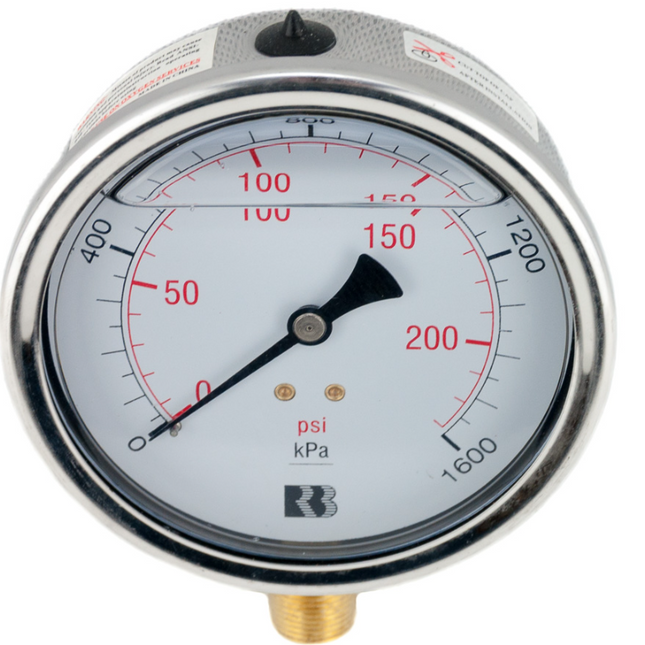

The L100 (Model 411) Pressure Gauge features a 100mm dial with a 304 stainless steel case, brass bourdon tube and connection, and a polycarbonate window. It offers a dual scale (kPa/psi) and has a ⅜” BSPT lower mount. The gauge is liquid-filled and has an accuracy of ±2.5% of full scale. The pressure ranges start from -100/0 kPa to 0/4,000 kPa (refer to the data sheet for all available ranges). Technical Specifications Brand Ross Brown Model L63 / 411 Type Pressure Gauge Working Temperature Up to 60 Degree C (use pigtail for higher temps) Dial Size 100mm Dial Label Black Print (kPa), Red Print (PSI) on White Background Ranges -100-0kPa to 0-40,000kPa Connection 3/8" BSPT (Lower or Back Mount) Accuracy +/- 2.5% Material Specifications Case & Bezel 304 Stainless Steel Connection Copper Alloy Window Polycarbonate

Read more less

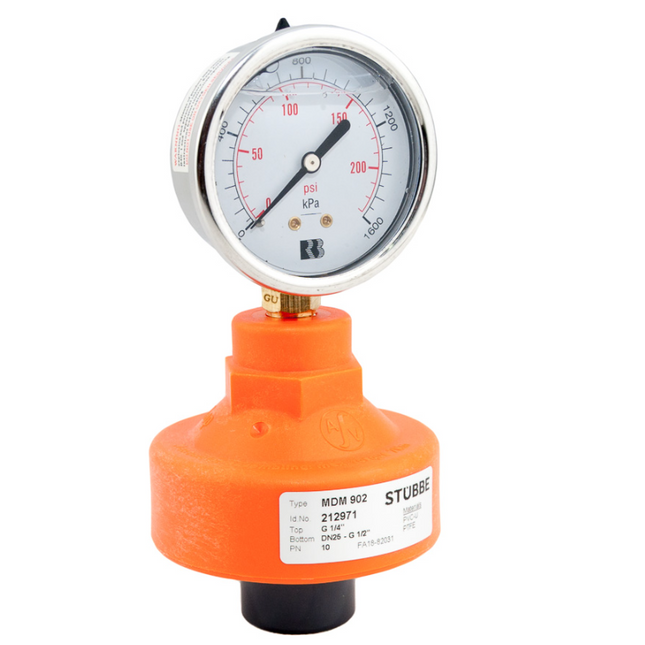

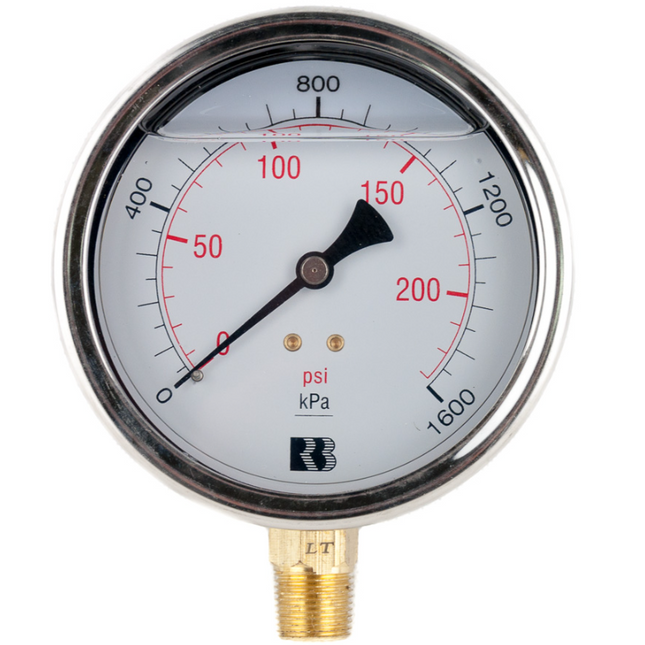

The L63 (Model 411) Pressure Gauge features a 63mm dial with a 304 stainless steel case, brass bourdon tube and connection, and a polycarbonate window. It offers a dual scale (kPa/psi) and has a ¼” BSPT lower mount. The gauge is liquid-filled and provides an accuracy of ±2.5% of full scale. The pressure ranges start from -100/0 kPa to 0/4,000 kPa (refer to the data sheet for all available ranges). Optional features include a 63mm panel mount kit, 63mm front flange, and restrictors (0.46 or 0.25). Technical Specifications Brand Ross Brown Model L63 / 411 Type Pressure Gauge Working Temperature Up to 60 Degree C (use pigtail for higher temps) Dial Size 63mm Dial Label Black Print (kPa), Red Print (PSI) on White Background Ranges -100-0kPa to 0-40,000kPa Connection 1/4" BSPT (Lower or Back Mount) Accuracy +/- 2.5% Material Specifications Case & Bezel 304 Stainless Steel Connection Copper Alloy Window Polycarbonate

Read more less

Title :- Model - 3510 Stainless Steel Shear Beam Load Cell Brand :- Tedea-Huntleigh DESCRIPTION The Model 3510 provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical, low profile range suitable for platform scale manufacture. Its low profile and fully welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos. The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell. Hermetically sealed against moisture, the construction of the Model 3510, in combination with a polyurethane dual shielded cable, enables continuous operation in demanding environments while maintaining a high operating specification. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. FEATURES • Capacities 300–5000 kg, 1000–5000 lbs• Stainless steel construction• OIML R60 and NTEP approved• Hermetically sealed to IP68 and IP69K• Specially designed for demanding environments• Optional - EEx ia IIC T6 hazardous area approval - FM and IECEx approvals available - 1100Ω impedance available  APPLICATIONS • Low profile platforms• Pallet truck weighing• Tank and silo weighing• Demanding environment weighing• Food industry weighing

Read more less

Title :- Model - 65023- Shear Beam Load Cell Brand :- Sensortronics DESCRIPTION  Model 65023 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications.  It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with ATEX, UKCA and FM approval. Nickel plating and full environmental sealing assures long term reliability. A stainless steel option is available for the lb versions for use in harsh or corrosive environments. Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics. FEATURES • Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg • “Thru” or “threaded” load hole configurations • Low sensitivity to axial loads • Low profile (ultra-low-profile available in 1000 to 2500 pound ranges) • Sensorgage™ sealed to IP67 standards • Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G. • Non-incendive ratings (without barriers!). • Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available    Optional  - Hazardous area approval  - Stainless steel versions available  - 65059 TWA companion weighing assemblies available  - EDOC product appearance will differ from the    photograph due to coating APPLICATIONS• Floor scales• Tank weighing • Bin and hopper weighing

Read more less

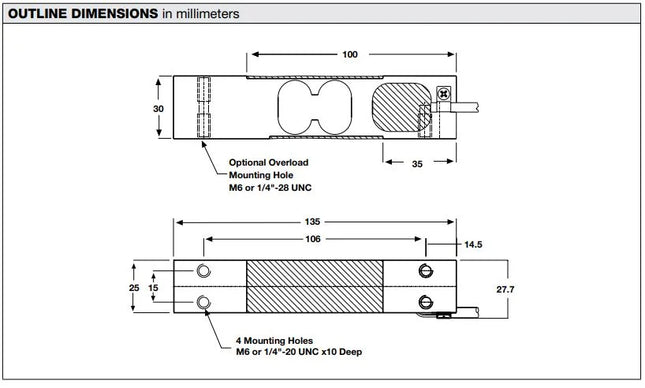

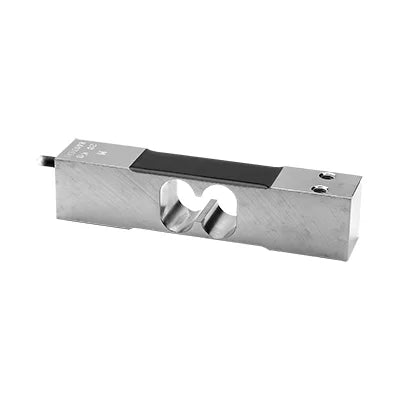

Title :- Model 1002 Tedea Huntleigh Aluminum Single-Point Load Cell Brand :- Tedea-Huntleigh Description Imagine a tool so small yet so mighty that it transforms your weighing and measurement tasks with ease. Meet the Model 1002, a compact aluminum single-point load cell designed for a multitude of applications, from simple weighing scales to advanced industrial measurement and medical applications. At the heart of the Model 1002’s appeal is its remarkable size. This diminutive powerhouse fits seamlessly into diverse environments, offering you unparalleled versatility. Whether you're operating a packing machine, a filling machine, or delving into intricate industrial process control, the Model 1002 rises to the occasion. Its user-friendly design means you can integrate it effortlessly into your systems, making precision measurement more accessible than ever. Optional 1000-ohm strain gauges are available for those who need a reliable connection to battery-powered equipment, marked as the Model 1002-K. This feature enhances the load cell's adaptability, ensuring it meets your specific needs, whether in a bustling factory or a clinical setting. Features You’ll Love: • Versatile Capacities : Choose from capacities ranging from 0.5–20 kg for 350-ohm configurations, and 5–30 kg for 1000-ohm variants.• Durable Aluminum Construction : Built to withstand the rigors of daily use while remaining lightweight.• Single-Point Design : A 200 x 200 mm platform provides stability and accuracy for low-force applications.• IP66 Protection Rating : Engineered to resist dust and water, making it ideal for challenging environments.

Read more less

Title :- Model 1004 Tedea Huntleigh Aluminum Single-Point Load Cell Brand :-  Tedea Huntleigh DESCRIPTION  Unlock a new level of accuracy and reliability with the Model 1004, a remarkably high-precision, low-capacity single-point load cell, meticulously engineered for those who demand nothing less than perfection in their measurements. Whether you're working with delicate jewelry, precision balances, or cutting-edge medical research, the Model 1004 guarantees consistent, pinpoint accuracy in every application. Designed for direct mounting in low-capacity scales and precision balances, this load cell is the ultimate solution for a range of demanding tasks from intricate jewelry weighing to pharmaceutical research and low-force measurements. Its high precision makes it perfect for applications that require absolute attention to detail. Why Choose the Model 1004? With the ability to deliver up to 30,000 divisions of short-term precision in a stable room-temperature environment, the Model 1004 ensures your measurements are always accurate, stable, and reliable. Its advanced two-stage humidity-resistant protective coating means your investment is safeguarded against environmental factors, offering long-term durability and peace of mind. Worried about overload? The Model 1004 comes with the option to easily integrate an overload protection device, ensuring the longevity of your equipment. Plus, with a threaded hole built into the loading end, you can seamlessly incorporate this feature into your design.      Features You’ll Love: Capacities ranging from 0.3 to 3 kg, making it ideal for precision tasks Robust aluminum construction ensures strength without sacrificing sensitivity Single-point design supports a 200 × 200 mm platform, offering stable and consistent measurements IP66-rated protection guarantees resilience against dust and powerful water jets, perfect for challenging environments Total error less than 0.0067% of Rated Output (R.O.), ensuring unmatched accuracy Officially approved by OIML C3 and C6 for verified performance        Perfect for These Applications: Low capacity scales :  Ideal for weighing very light items with great accuracy Precision scales : Ensures highly accurate measurements in labs and experiments. Jewelry scales : Perfect for weighing jewelry like gold or diamonds, where    precision is key. Pharmaceutical scales :  Great for measuring small amounts of medicine or chemicals in labs and pharmacies.
