A Damped Load Cell is a specialized force sensor designed to provide stable and accurate measurements in environments where vibrations, shocks, or dynamic loads are present. These load cells incorporate damping mechanisms to reduce oscillations and improve measurement reliability, making them ideal for industrial, packaging, and process control applications. At Sensors and Gauges, we offer a wide range of damped load cells, digital indicators, and integration solutions to ensure precise and consistent force monitoring. This guide explores features, benefits, applications, and pricing for damped load cells.
Damped Load Cell
-

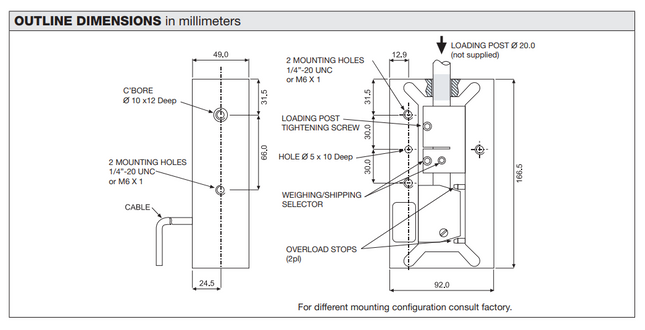

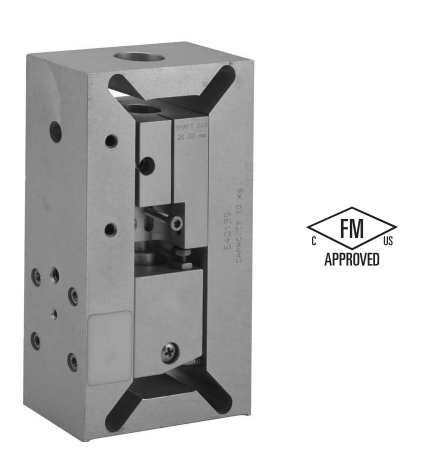

Tedea-Huntleigh Model 1410 Load Cell for Rotary Filling Machines
Title :- Model 1410 Load Cell for Rotary Filling Machines Brand :- Tedea-HuntleighΒ Β DESCRIPTION Model 1410 represents a radical new concept in load cell design, which alleviates many of the problems encountered when conventional load cells are used in rotary weighing machines.Β Due to a patented damping system, typical settling times of 700 ms are dramatically reduced to less than 300 ms (depending on conditions), significantly reducing cycle times and increasing throughput capabilities. Centrifugal forces are handled in such away that their effect on output is very small. For example, when tested up to 20 rpm, the total dynamic error amounted to lessΒ than 0.2 gram per kg. Model 1410 provides excellent isolation of base vibrations. Both these features enable the use of higher machine speeds without losing accuracy.Β Model 1410βs unique rugged construction makes it very resistant to side loads and can therefore withstand bottle jams and other mishaps. FEATURES β’ The first and only load cell specifically designed forΒ use in rotary filling machinesβ’ Short settling timesβ’ High resistance to side loadsβ’ Effective isolation of base vibrationsβ’ Centrifugal forces do not affect accuracyβ’ Two mounting optionsβ’ Optional:Β - FM approval available APPLICATIONS β’ Rotary filling machinesΒ
$270.41
-

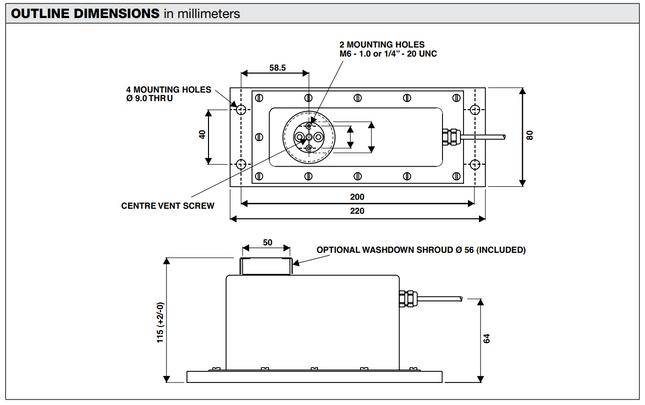

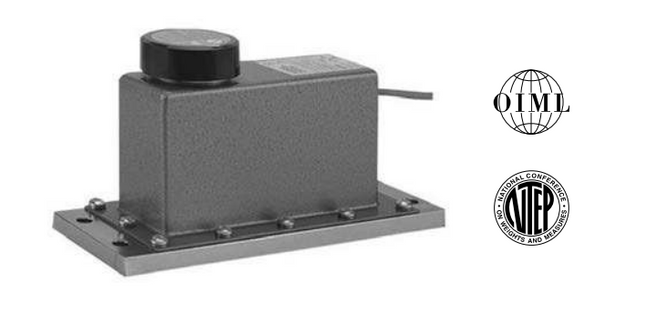

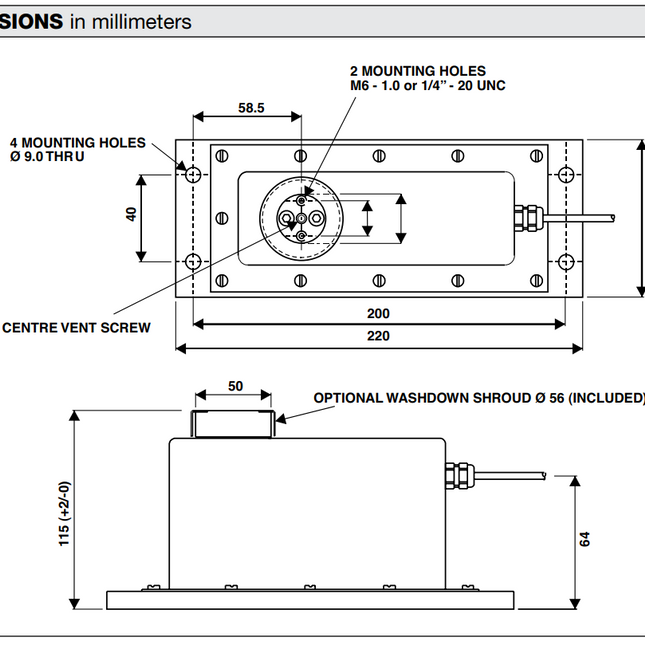

Tedea-Huntleigh Model 240 Fluid-Damped Single-Point Load Cell
Title :- Model 240 Fluid-Damped Single-Point Load Cell Brand :- Tedea-Huntleigh DESCRIPTION The Model 240 is specifically designed to be used where the fast acquisition of a stable load signal is paramount. The Model 240βs unique fluid damping system allows the load cell to be used in applications that previously required the use of LVDTβs or similar measuring devices. The Model 240 brings load cell adaptability into check weighing and grading applications. Approved to OIML R60 and NTEP standards, sealed to IP66 level and available in coated steel or stainless steel, the Model 240 is suitable for most wash-down applications. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. FEATURES β’ Capacities 2β50 kgβ’ Painted steel constructionβ’ OIML R60 and NTEP approvedβ’ IP66 protectionβ’ Available with metric and UNC threadsβ’ OptionalΒ β Stainless steel construction APPLICATIONS β’ Multi-head filling machinesβ’ Check weighingβ’ Grading machinesβ’ Liquid fillingβ’ Dynamic weighingΒ
$261.55
-

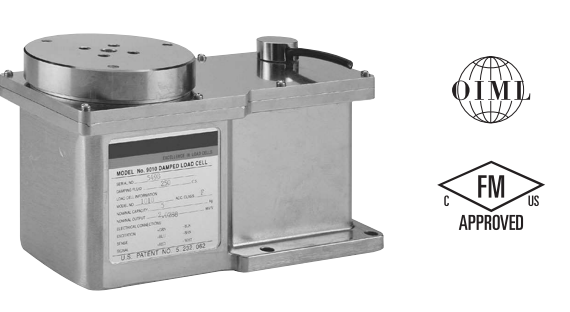

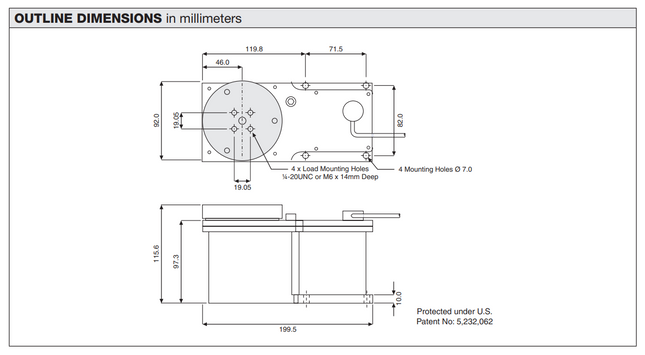

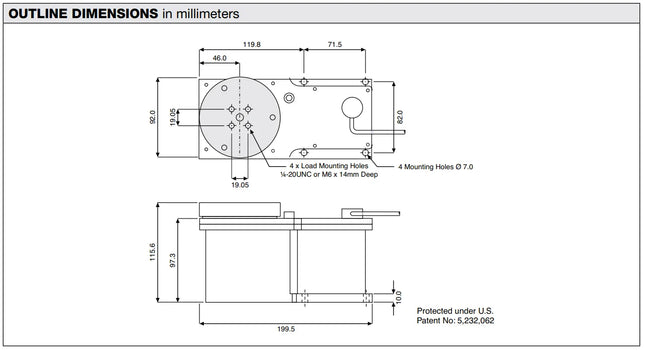

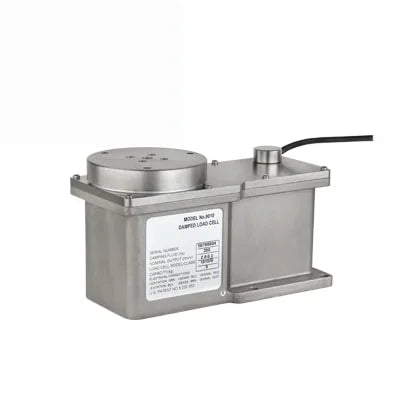

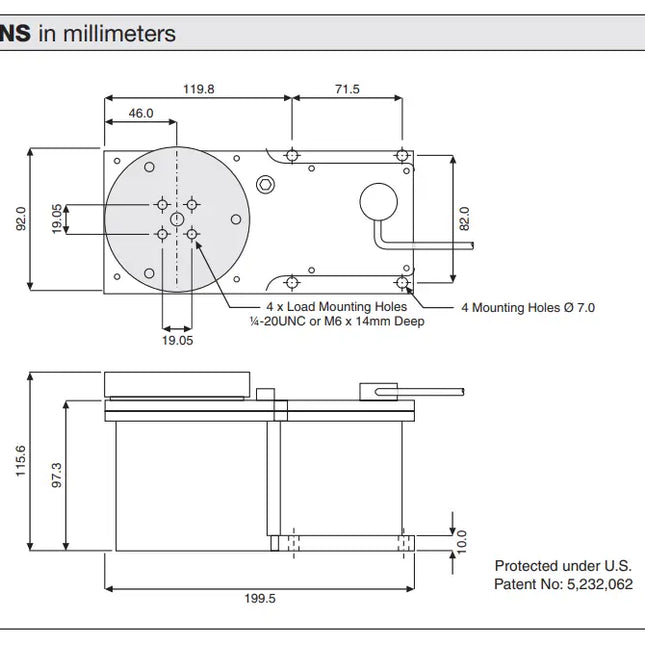

Tedea-Huntleigh Model- 9010 Self-Contained Weighing Module
Title :- Β Model- 9010 Self-Contained Weighing Module Brand :- Β Tedea-Huntleigh DESCRIPTION The Model 9010 is a self-contained weighing module for use in repeated shock-loading applications or where fast weighing and settling times are required, such as multi head weighers, check weighers and other static and dynamic weighing applications characterized by sudden or impact loading. The Model 9010βs unique fluid damping system allows the load cell to be used in applications that previously required the use of LVDTβs or similar types of measuring devices. The Model 9010 has a unique adjustable tare load cancellation feature which brings load cell adaptability into check weighing and grading applications. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. FEATURES β’ Capacities 3β90 kgβ’ Unique adjustable tare load cancelling mechanismβ’ Highly effective viscous dampingβ’ 6 Built-in overload limit stops in three directionsβ’ Weighing speed is much faster than standard load cellΒ β’ IP65 protectionΒ β’ OptionalΒ - Stainless steel versionΒ - IP66 with additional breather tubeΒ - OIML and FM approvals availableΒ
$2,096.14
