Title :- Model- 9363- S Type Universal Load Cell
Brand :- Revere
DESCRIPTION

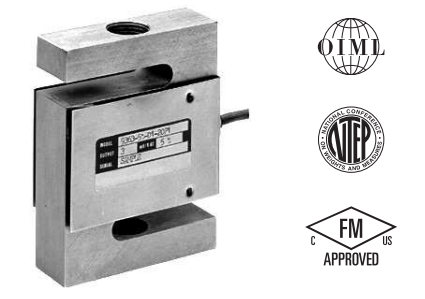

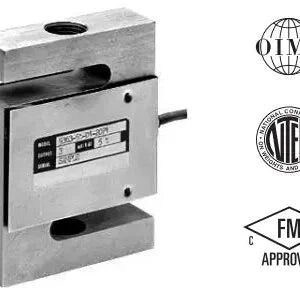

Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.
The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL
potting compound and additional mechanical protection
of the strain gage area.
The product meets the stringent Weights and Measures requirements throughout Europe and the USA.
FEATURES
• Capacities: 50 to 10,000 kg (50 to 20,000 lbs)
• Stainless-steel construction
• Suitable for compression and tension applications
• Trimmed output versions standard
• Sealing: IP67
• Certified to OIML R-60, 3000d, NTEP class IIIL,
10000 divisions
• Optional
- FM approved for use in potentially explosive atmospheres
APPLICATIONS
• Suspended hoppers
• Overhead track scales
• Force measurement
