1000kg Load Cell – RLC Ring Torsion Load Cell | High-Precision Industrial Force Measurement

1000kg Load Cell – RLC Ring Torsion Load Cell | High-Precision Industrial Force Measurement

Product form

Low-Profile, Stainless-Steel Load Cell for Torsional Applications The 1000kg Load Cell – RLC Ring Torsion Load Cell from Revere is... Read more

    • Shipped today? Order within: Oct 12, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

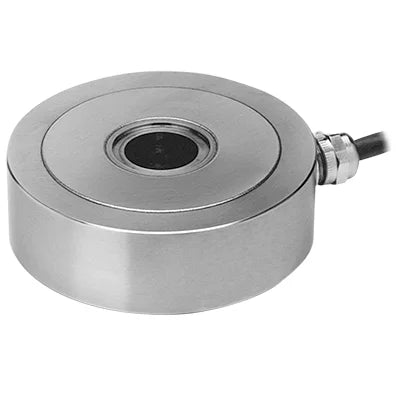

    Low-Profile, Stainless-Steel Load Cell for Torsional Applications

    The 1000kg Load Cell – RLC Ring Torsion Load Cell from Revere is a compact, high-performance stainless-steel torsion load cell engineered for precision rotary and torsional force measurement in industrial environments. Its low-profile design allows easy integration into automation systems, robotic setups, and process weighing equipment, while maintaining reliable, repeatable results under demanding conditions.

    With hermetic sealing and IP66/IP68 protection, this load cell ensures durability and consistent accuracy even in harsh or wet environments.

    Download Data Sheet


    Technical Specifications

    • Model: RLC Ring Torsion Load Cell

    • Capacity: 1000 kg (Range: 250 kg to 60 t)

    • Material: Stainless Steel

    • Design: Ring torsion, low-profile

    • Cable Length: 5 m

    • Accuracy / Class Code: OIML 3000 d

    • Mounting Thread Type: TH

    • Output: Standard Product

    • Environmental Protection: IP66 and IP68 (IP69K optional for select models)

    • Brand: Revere

    • SKU: 00RLC-001T-C3-00X

    • Approval / Safety Code: Not ATEX/FM approved

    • Stock Status: In Stock


    Why Choose the 1000kg RLC Ring Torsion Load Cell?

    The RLC 1000kg load cell combines stainless steel durability with high-precision torsional measurement, making it ideal for industrial machinery, robotic systems, and process automation. Its hermetically sealed housing ensures protection against moisture, dust, and contaminants, while the low-profile design enables integration into tight spaces without compromising performance.


    Key Benefits

    • Accurate torsional and rotary force measurement

    • Durable stainless-steel construction for corrosion resistance

    • Hermetically sealed IP66/IP68 protection for harsh environments

    • Compact, low-profile design for versatile mounting

    • Reliable OIML 3000 d output


    Applications

    • Industrial rotary systems

    • Robotic and automation applications

    • Process weighing and force monitoring

    • High-precision torsion measurement

    • Equipment requiring compact load cells


    Smart Tip

    Enhance your load cell system with accessories and complementary products from:
    Load Cell Solutions Australia
    Load Cell Shop

    For mounting kits, digital indicators, and technical support, visit Sensors and Gauges.

    Description

    The RLC is a low profile, high-performance stainless-steel ring torsion type load cell.

    The fully welded construction and glass-to-metal cable entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries.

    This product is suitable for small and medium platform scales, hoppers and process weighing.

    This product meets the stringent Weights and Measures requirements throughout Europe and USA.

    Features

    • Capacity range: 250 kg to 60 t
    • Low profile, stainless steel construction
    • Hermetically sealed, IP66 and IP68; IP69K is available for 250 kg, 5 t and 10 t versions
    • Meets OIML R-60 and NTEP 6000d
    • Outputs are matched to ensure easy and accurate parallel connection of multiple load cells

    Options

    • ATEX certified versions are available for use in potentially explosive atmospheres
    • Multi-interval and multiple-range versions are available
    Parameter Value Unit
    Rated capacity (kg) 0.25t, 0.5t, 1t, 2t, 3.5t, 5t, 10t, 28t, 60t kg
    NTEP/oiml accuracy class NTEP IIIL | D3 | C3 | C6
    Max. no. of intervals (n) 10000 | | 3000 | 6000
    Rated output R.O 2 (1.75 for 0.25 t, 2.05 for 10 t) mV/V
    Zero balance 1.0 ±%FSO
    Creep error 0.0245 | 0.0123 ±%FSO
    Temp. effect on sensitivity (0.0010) | (0.0010) | 0.0070 0.0045 ±%FSO/F
    Temp. effect on min dead load output (0.0008) | (0.0008) | 0.0050 | 0.0025 ±%FSO/F
    Ultimate over load 300 % of R.C
    Excitation voltage 5 - 15 VDC or VAC RMS
    Max. excitation voltage 30 VDC or VAC RMS
    Input resistance 1110±50 (1100±50 for 0.25t and 10t) | 1075±100 for 28t | 1350±100 for 60t Ω
    Output resistance 1025±25 (1025±50 for 0.25t and 10t) | 930±0.5 for 28t | 1175±0.5 for 60t Ω
    Insulation resistance ≥5000 (20 for 28 and 60 t)
    Environmental protection IP66 and IP68; IP69K available for 250 kg, 5t and 10t
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.

    Application

    • Platform scales
    • Belt scales
    • Silo hopper weighing

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor
