Low-Profile Stainless-Steel Load Cell for Heavy-Duty Torsional Measurement The 10000kg Load Cell – RLC Ring Torsion Load Cell from Revere...
Read more
Shipped today? Order within:
Oct 12, 2025 23:59:00 +1100
Free shipping on all orders above 50,00
No hassle returns, 30 days return
Pay whenever you want
Easily pay within 30 days after you have received your package. Read more
Pairs well with
Description
Low-Profile Stainless-Steel Load Cell for Heavy-Duty Torsional Measurement
The 10000kg Load Cell – RLC Ring Torsion Load Cell from Revere is a high-performance, low-profile stainless-steel torsion load cell designed for heavy-duty industrial applications. Its ring-shaped design allows accurate measurement of torsional and rotary forces in large-scale machinery, automation systems, and process weighing equipment.
Hermetically sealed and rated IP66/IP68, this load cell provides reliable, repeatable performance in harsh industrial environments, ensuring long-term durability under demanding conditions.
Environmental Protection: IP66 and IP68 (IP69K optional for select models)
Brand: Revere
SKU: 00RLC-010T-C3-00X
Approval / Safety Code: Not ATEX/FM approved
Stock Status: In Stock
Why Choose the 10000kg RLC Ring Torsion Load Cell?
The RLC 10t load cell provides high-capacity, precise torsional measurement in a compact, low-profile design. Its stainless-steel construction ensures corrosion resistance, while hermetic sealing with IP66/IP68 protection guarantees reliable operation in industrial, wet, or dusty environments. Ideal for rotary machinery, heavy automation, and large-scale weighing systems.
Key Benefits
High-precision measurement for heavy-duty torsion and rotary applications
Durable stainless-steel housing for maximum corrosion resistance
Hermetically sealed IP66/IP68 protection
Low-profile, compact design for versatile installation
Reliable OIML 3000 d output
Applications
Heavy-duty industrial rotary and torsion systems
Large-scale robotics and automation
Process weighing in manufacturing and chemical industries
For accessories, mounting kits, and indicators, visit Sensors and Gauges.
Description

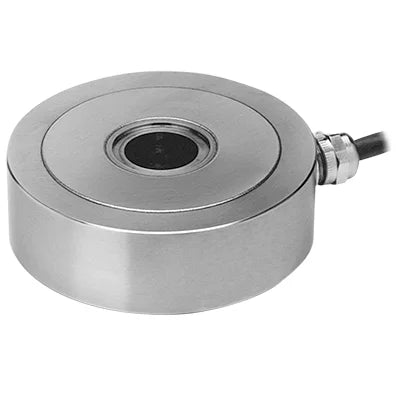

The RLC is a low profile, high-performance stainless-steel ring torsion type load cell.
The fully welded construction and glass-to-metal cable entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries.
This product is suitable for small and medium platform scales, hoppers and process weighing.
This product meets the stringent Weights and Measures requirements throughout Europe and USA.
Features
Capacity range: 250 kg to 60 t
Low profile, stainless steel construction
Hermetically sealed, IP66 and IP68; IP69K is available for 250 kg, 5 t and 10 t versions
Meets OIML R-60 and NTEP 6000d
Outputs are matched to ensure easy and accurate parallel connection of multiple load cells
Options
ATEX certified versions are available for use in potentially explosive atmospheres
Multi-interval and multiple-range versions are available
Parameter
Value
Unit
Rated capacity (kg)
0.25t, 0.5t, 1t, 2t, 3.5t, 5t, 10t, 28t, 60t
kg
NTEP/oiml accuracy class
NTEP IIIL | D3 | C3 | C6
Max. no. of intervals (n)
10000 | | 3000 | 6000
Rated output R.O
2 (1.75 for 0.25 t, 2.05 for 10 t)
mV/V
Zero balance
1.0
±%FSO
Creep error
0.0245 | 0.0123
±%FSO
Temp. effect on sensitivity
(0.0010) | (0.0010) | 0.0070 0.0045
±%FSO/F
Temp. effect on min dead load output
(0.0008) | (0.0008) | 0.0050 | 0.0025
±%FSO/F
Ultimate over load
300
% of R.C
Excitation voltage
5 - 15
VDC or VAC RMS
Max. excitation voltage
30
VDC or VAC RMS
Input resistance
1110±50 (1100±50 for 0.25t and 10t) | 1075±100 for 28t | 1350±100 for 60t
Ω
Output resistance
1025±25 (1025±50 for 0.25t and 10t) | 930±0.5 for 28t | 1175±0.5 for 60t
Ω
Insulation resistance
≥5000 (20 for 28 and 60 t)
MΩ
Environmental protection
IP66 and IP68; IP69K available for 250 kg, 5t and 10t
FSO - Full Scale Output
All specifications subjects to change whithout notice.
Parameter
Value
Unit
Rated capacity (kg)
0.25t, 0.5t, 1t, 2t, 3.5t, 5t, 10t, 28t, 60t
kg
NTEP/oiml accuracy class
NTEP IIIL | D3 | C3 | C6
Max. no. of intervals (n)
10000 | | 3000 | 6000
Rated output R.O
2 (1.75 for 0.25 t, 2.05 for 10 t)
mV/V
Zero balance
1.0
±%FSO
Creep error
0.0245 | 0.0123
±%FSO
Temp. effect on sensitivity
(0.0010) | (0.0010) | 0.0070 0.0045
±%FSO/F
Temp. effect on min dead load output
(0.0008) | (0.0008) | 0.0050 | 0.0025
±%FSO/F
Ultimate over load
300
% of R.C
Excitation voltage
5 - 15
VDC or VAC RMS
Max. excitation voltage
30
VDC or VAC RMS
Input resistance
1110±50 (1100±50 for 0.25t and 10t) | 1075±100 for 28t | 1350±100 for 60t
Ω
Output resistance
1025±25 (1025±50 for 0.25t and 10t) | 930±0.5 for 28t | 1175±0.5 for 60t
Ω
Insulation resistance
≥5000 (20 for 28 and 60 t)
MΩ
Environmental protection
IP66 and IP68; IP69K available for 250 kg, 5t and 10t
FSO - Full Scale Output
All specifications subjects to change whithout notice.
