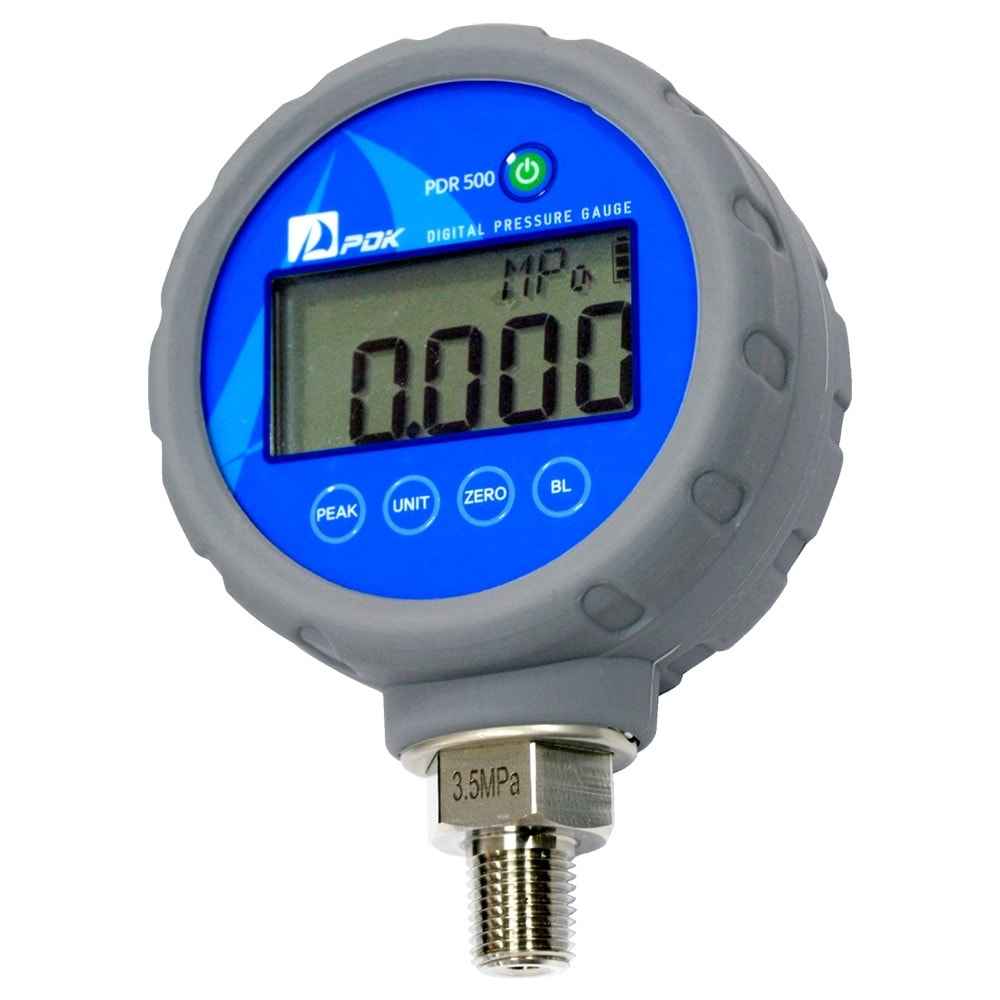

The PDK PDR500 Digital Pressure Gauge is designed for accurate, reliable pressure measurement in demanding industrial, testing, and calibration applications. Featuring up to 0.1% full-scale (FS) accuracy, an 80mm dial, and an IP66-rated enclosure, this advanced digital pressure gauge combines precision measurement with practical functionality for professional users.
Powered by PDK's pressure calibration and microprocessor technology, the PDR500 offers multiple selectable pressure units, a backlit LCD display, min/max recording, and an auto-off function. Optional data logging capabilities enable users to record and analyse pressure measurements for testing, maintenance, and monitoring workflows.
High Measurement Accuracy: Up to 0.1% full-scale accuracy for precision pressure measurement.
80mm Dial: Clear display format for convenient reading.
IP66 Protection: Protection against dust ingress and powerful water jets when used within the specified rating conditions.
Data Logging Option: Supports pressure data recording for analysis and documentation, subject to the selected configuration.
Backlit LCD Display: Improves readability in different working environments.
Multiple Pressure Units: Select from mbar, bar, MPa, mmH₂O, inHg, mmHg, kgf/cm², atm, psi, and kPa.
Min/Max Function: Records minimum and maximum pressure readings.
Auto-Off Function: Helps conserve battery power.
Calibration Function: Supports instrument calibration procedures.
Silicone Protective Cover: Included to provide additional protection during handling and use.
Bottom-Entry Connection: Designed for compatible pressure connection arrangements.
The PDK PDR500 digital pressure gauge is suitable for a range of professional pressure measurement applications, including:
Industrial pressure testing and verification
Hydraulic and pneumatic system testing
Equipment maintenance and troubleshooting
Pressure calibration and measurement workflows
Engineering workshops and test benches
Industrial quality control and inspection
Pressure data recording and analysis, with the optional data logging configuration
Always verify the operating pressure, media compatibility, connection specifications, and environmental requirements for your application.
