Description

Fast, Reliable, and Shock-Resistant Weighing Solution

The 7kg Load Cell – Model 9010 Self-Contained Weighing Module from Tedea-Huntleigh is engineered for applications requiring fast weighing and settling times, even under repeated shock or impact loading. Ideal for multihead weighers, check weighers, and dynamic industrial weighing systems, this module delivers accurate, stable, and repeatable measurements in demanding environments.

Download Data Sheet

Key Features & Benefits:

Capacity: 7 kg (available in 3–90 kg variants)
Self-Contained Design: Combines load cell and weighing module for simplified installation
Adjustable Tare Load Cancelling: Ensures high accuracy even under variable conditions
Highly Effective Viscous Damping: Reduces oscillation for faster and precise readings
Environmental Protection: IP65 rated – protected against dust and low-pressure water jets
Precision Engineering: Ideal for static and dynamic weighing applications with sudden or impact loads

Applications:

Multihead weighers
Check weighers
Dynamic industrial weighing systems with impact or shock loading

Limitations:

Not ATEX/FM approved – unsuitable for explosive or hazardous environments

Smart Tip: The Model 9010 is perfect for applications needing a robust, high-speed weighing module that maintains accuracy under repeated shock or fast-loading conditions.

Description

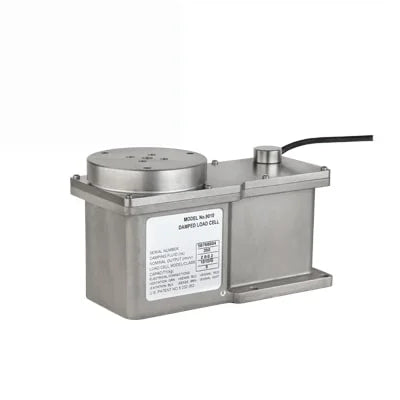

The Model 9010 is a self-contained weighing module for use in repeated shock-loading applications or where fast weighing and settling times are required, such as multihead weighers, check weighers and other static and dynamic weighing applications characterized by sudden or impact loading.

The Model 9010’s unique fluid damping system allows the load cell to be used in applications that previously required the use of LVDT’s or similar types of measuring devices.

The Model 9010 has a unique adjustable tare load cancellation feature which brings load cell adaptability into check weighing and grading applications.

The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

Features

Capacities 3–90 kg
Unique adjustable tare load cancelling mechanism
Highly effective viscous damping
6 Built-in overload limit stops in three directions
Weighing speed is much faster than standard load cell
IP65 protection

Options

Stainless steel version
IP66 with additional breather tube
OIML and FM approvals available

Parameter	Value	Unit
Rated capacity (kg)	3, 5, 7, 10, 15, 20, 30, 50, 90	kg
Max. no. of intervals (n)	3000
Rated output R.O	2.0	mV/V
Rated output tolerance	0.2	±%mV/V
Temp. effect on sensitivity	0.002	±%FSO/F
Temp. effect on min dead load output	0.004	±%FSO/F
Excitation voltage	10	VDC or VAC RMS
Max. excitation voltage	15	VDC or VAC RMS
Input resistance	415±15	Ω
Output resistance	350±5	Ω
Insulation resistance	>5000	MΩ
Environmental protection	IP65

FSO - Full Scale Output
All specifications subjects to change whithout notice.
