Description

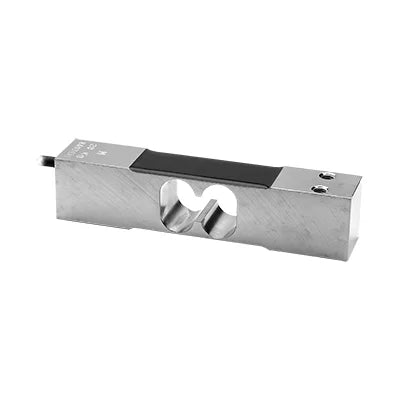

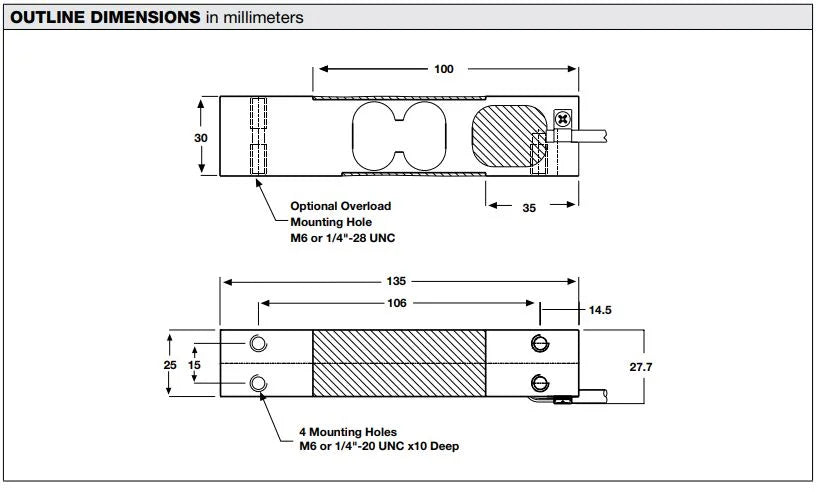

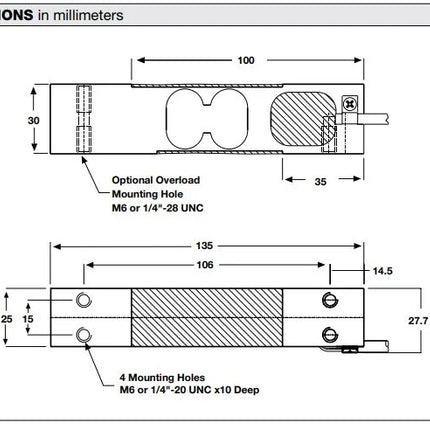

The Model 1130 is a low-profile stainless steel single point load cell ideally designed for direct mounting in bench and platform scales, packaging and process weighing equipment, and is built to perform in demanding environments.

The small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for low profile bench and counting scales. A special humidity resistant protective coating assures long-term stability over the entire compensated temperature range.

Constructed in stainless steel, this high accuracy load cell is approved to stringent approval standards, e.g., OIML and NTEP.

The two additional sense wires feed-back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

Features

• Capacities 7–100 kg

• Stainless steel construction
• Single-point 400 × 400 mm platform
• OIML R60 and NTEP approved
• IP66 protection
• Available with metric and UNC threads

Options

• ATEX, FM and IECEx approvals available


  Parameter	Value	Unit
  Rated capacity (kg)	7, 10, 15, 20, 30, 50, 75, 100	kg
  NTEP/oiml accuracy class	NTEP | Non-Approved | C3
  Max. no. of intervals (n)	4000 single | 1000 | 3000
  Rated output R.O	2.0	mV/V
  Rated output tolerance	0.2	±%mV/V
  Zero balance	0.2	±%FSO
  Creep error	0.0015 | 0.0500 | 0.0200	±%FSO
  Temp. effect on sensitivity	0.0030 | 0.0100 | 0.0023	±%FSO/F
  Temp. effect on min dead load output	0.0008 | 0.0030 | 0.0010	±%FSO/F
  Ultimate over load	300	% of R.C
  Excitation voltage	10	VDC or VAC RMS
  Max. excitation voltage	15	VDC or VAC RMS
  Input resistance	385±15	Ω
  Output resistance	350±3	Ω
  Insulation resistance	>2000	MΩ
  Environmental protection	IP66

  • FSO - Full Scale Output
  • All specifications subjects to change whithout notice.

  Application

  • Demanding environment small platforms

  • Demanding environment check weighing
