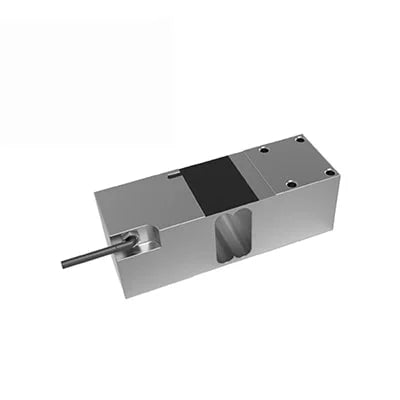

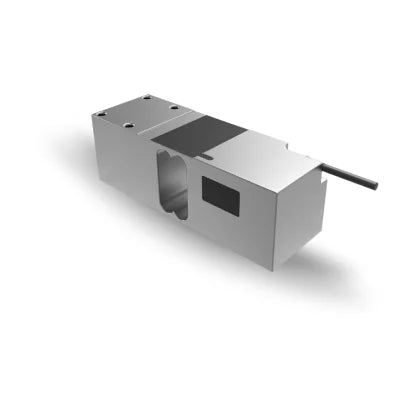

50kg Load Cell – Model 1260 Aluminum High-Capacity Single-Point Load Cell

50kg Load Cell – Model 1260 Aluminum High-Capacity Single-Point Load Cell

Product form

Robust, High-Capacity Load Cell for Large Platform Weighing The 50kg Load Cell – Model 1260 from Tedea-Huntleigh is a high-performance... Read more

    • Shipped today? Order within: Oct 13, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    Robust, High-Capacity Load Cell for Large Platform Weighing

    The 50kg Load Cell – Model 1260 from Tedea-Huntleigh is a high-performance single-point load cell designed for direct mounting on large platforms. Built for industrial and commercial weighing applications, this aluminum load cell delivers reliable, repeatable, and precise measurements even under high-capacity demands.

    Download Data Sheet

    Key Features & Benefits:

    • Capacity: 50 kg (available in 50–635 kg variants)

    • Construction: Lightweight yet durable aluminum for long-lasting performance

    • Platform Compatibility: Single-point 600 × 600 mm – ideal for large-scale platforms

    • Cable Length: 3 m – convenient for versatile installations

    • Environmental Protection: IP66 rated, fully protected against dust and water ingress

    • Precision Engineering: Ensures accurate readings for high-capacity industrial applications

    Applications:

    • Large bench and platform scales

    • Industrial process weighing

    • Packaging and commercial weighing systems

    Limitations:

    • Not ATEX/FM approved – not suitable for explosive or hazardous environments

    Smart Tip: The Model 1260 is perfect for applications requiring a lightweight, high-capacity load cell that doesn’t compromise accuracy or durability.

    Description

    Model 1260 is a high-performance, high-capacity single-point load cell designed for direct mounting of large platforms.

    Its rugged construction offers high resistance to side forces, making it suitable for a wide range of weighing applications, including bench scales and check weighing.

    A special humidity-resistant protective coating assures long-term stability over the entire compensated temperature range.

    For hazardous environments this load cell has an ATEX and FM approval.

    The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into appropriate electronics.

    Features

    • Capacities: 50–635 kg
    • Aluminum construction
    • Single-point 600 × 600 mm platform
    • OIML R60 and NTEP approved
    • IP66 protection
    • Available with metric and UNC threads

    Options

    • ATEX, FM and IECEx approvals available

    Certifications



    Parameter Value Unit
    Rated capacity (kg) 50, 75, 100, 150, 200, 250, 300, 500, 635, 1000 kg
    NTEP/oiml accuracy class NTEP Non-Approved C3
    Max. no. of intervals (n) 5000 single 1000 3000
    Rated output R.O 2 mV/V
    Rated output tolerance 0.2 ±%mV/V
    Zero balance 0.2 ±%FSO
    Ultimate over load 300 % of R.C
    Excitation voltage 10 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 415±15 Ω
    Output resistance 350±3 Ω
    Insulation resistance >2000 MΩ
    Environmental protection IP66
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.



    Applications

    • Large platform scales
    • Hanging scales
    • Check weighing

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor
