50kg Load Cell – Model 1130 Stainless Steel Single-Point Load Cell

50kg Load Cell – Model 1130 Stainless Steel Single-Point Load Cell

Product form

Accurate, Durable, and High-Performance Weighing Solution The 50kg Load Cell – Model 1130 from Tedea-Huntleigh is a low-profile, stainless steel... Read more

    • Shipped today? Order within: Oct 12, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    Accurate, Durable, and High-Performance Weighing Solution

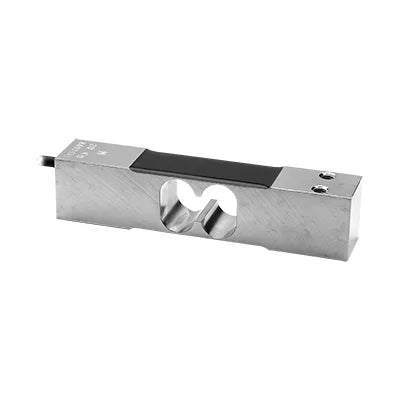

    The 50kg Load Cell – Model 1130 from Tedea-Huntleigh is a low-profile, stainless steel single-point load cell designed for precision weighing in demanding industrial and commercial environments. Ideal for bench and platform scales, packaging systems, and process weighing equipment, this load cell provides reliable and repeatable measurements with exceptional stability.

    Download Datasheeet

    Key Features & Benefits:

    • Capacity: 50 kg (also available in 7–100 kg variants)

    • Stainless Steel Construction: Durable and corrosion-resistant for long-lasting performance

    • Single-Point 400 × 400 mm Platform Compatibility: Easy integration into standard weighing platforms

    • Mounting Thread Type: MT – secure and simple installation

    • Environmental Protection: IP66 rated for dust and water resistance

    • Precision Engineering: Ideal for applications requiring high accuracy

    Applications:

    • Bench and platform scales

    • Packaging machinery

    • Industrial process weighing

    Limitations:

    • Not ATEX/FM approved – unsuitable for hazardous or explosive environments

    Smart Tip: The Model 1130 is perfect for industrial setups needing compact, robust, and highly accurate load cells.

    Description

    The Model 1130 is a low-profile stainless steel single point load cell ideally designed for direct mounting in bench and platform scales, packaging and process weighing equipment, and is built to perform in demanding environments.

    The small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for low profile bench and counting scales. A special humidity resistant protective coating assures long-term stability over the entire compensated temperature range.

    Constructed in stainless steel, this high accuracy load cell is approved to stringent approval standards, e.g., OIML and NTEP.

    The two additional sense wires feed-back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.


    Features

    • Capacities 7–100 kg
    • Stainless steel construction
    • Single-point 400 × 400 mm platform
    • OIML R60 and NTEP approved
    • IP66 protection
    • Available with metric and UNC threads

    Options

    • ATEX, FM and IECEx approvals available

    Certifications




    Parameter Value Unit
    Rated capacity (kg) 7, 10, 15, 20, 30, 50, 75, 100 kg
    NTEP/oiml accuracy class NTEP | Non-Approved | C3
    Max. no. of intervals (n) 4000 single | 1000 | 3000
    Rated output R.O 2.0 mV/V
    Rated output tolerance 0.2 ±%mV/V
    Zero balance 0.2 ±%FSO
    Creep error 0.0015 | 0.0500 | 0.0200 ±%FSO
    Temp. effect on sensitivity 0.0030 | 0.0100 | 0.0023 ±%FSO/F
    Temp. effect on min dead load output 0.0008 | 0.0030 | 0.0010 ±%FSO/F
    Ultimate over load 300 % of R.C
    Excitation voltage 10 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 385±15 Ω
    Output resistance 350±3 Ω
    Insulation resistance >2000
    Environmental protection IP66
    • FSO - Full Scale Output

    Application

    • Demanding environment small platforms
    • Demanding environment check weighing



    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor
