50kg Load Cell – 355 Welded, Hermetically Sealed Load Cell

50kg Load Cell – 355 Welded, Hermetically Sealed Load Cell

Product form

Durable, Moisture-Protected Load Cell for Industrial Weighing Applications The 50kg Load Cell – Model 355 from Tedea-Huntleigh is a welded... Read more

    • Shipped today? Order within: Oct 12, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    Durable, Moisture-Protected Load Cell for Industrial Weighing Applications

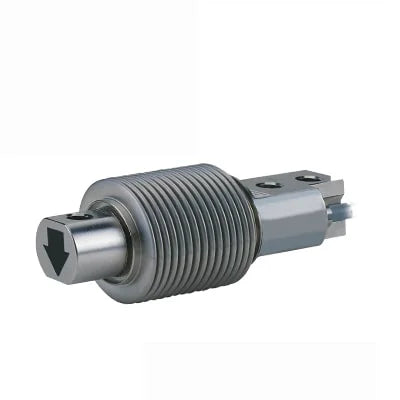

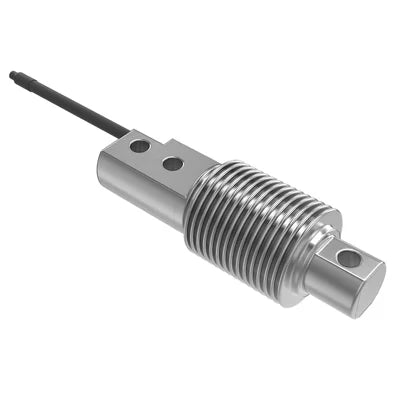

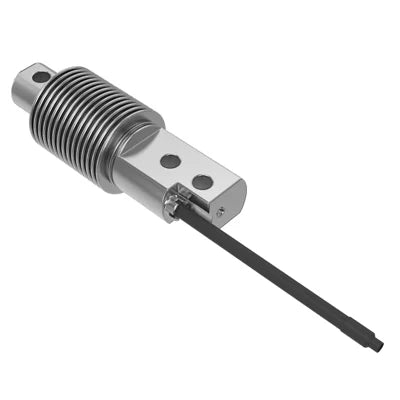

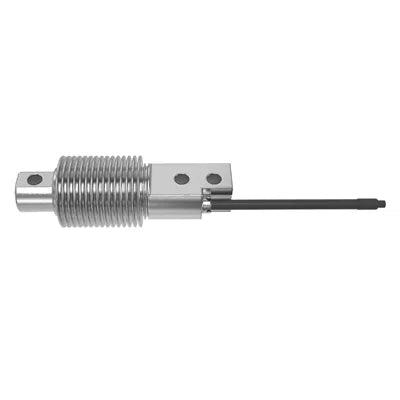

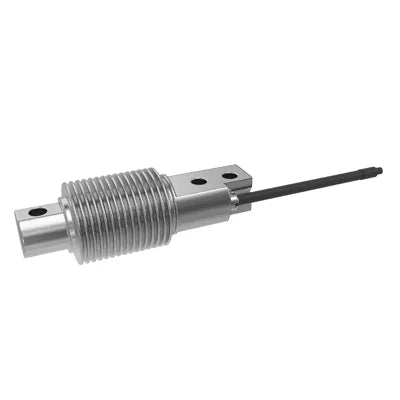

    The 50kg Load Cell – Model 355 from Tedea-Huntleigh is a welded bending load cell manufactured from stainless steel and hermetically sealed against moisture. Equipped with a polyurethane-shielded cable, this load cell is designed to perform reliably in demanding environments while maintaining full operating specifications.
    Download Data Sheet

    Key Features & Benefits:

    • Capacity: 50 kg (available in 5–500 kg variants)

    • Construction: Stainless steel for corrosion resistance and robust performance

    • Hermetically Sealed: Fully protected against moisture, ideal for harsh industrial environments

    • Approvals: OIML R60 and NTEP certified – ensures compliance and high accuracy

    • Environmental Protection: IP68 rated – dust-tight and fully protected against water immersion

    • Precision Engineering: Provides reliable and repeatable measurements in industrial applications

    Applications:

    • Industrial and process weighing

    • Harsh environment applications

    • Platform and bench scales

    Limitations:

    • Not ATEX/FM approved – unsuitable for explosive or hazardous environments

    Smart Tip: The Model 355 is perfect for applications where moisture protection, durability, and high-accuracy measurements are essential.

    Description

    Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications.

    With its low profile, high accuracy and hermetic sealing, the Model 355 load cell is ideal for applications such as low-profile platforms, weighing and packing machines, conversion of mechanical and varied other applications where sealed cells are required. For hazardous environments, this load cell is available with EEx ia IIC T6 level of approval as an option.

    Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.


    Features

    • Capacities: 5–500 kg
    • Stainless steel construction
    • OIML R60 and NTEP approved
    • IP68 protection

    Options

    • EEx ia IIC T6 hazardous area approval
    • FM and IECEx approvals available
    Parameter Value Unit
    Rated capacity (kg) 5, 10, 20, 30, 50, 100, 200, 250, 500 kg
    NTEP/oiml accuracy class NTEP Non-Approved C3 C4
    Max. no. of intervals (n) 4000 single 1000 3000 4000
    Rated output R.O 2.00 (UR matched = 2.02) mV/V
    Rated output tolerance 0.002 ±%mV/V
    Zero balance 0.04 ±%FSO
    Ultimate over load 300 % of R.C
    Excitation voltage 10 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 380±10 Ω
    Output resistance 355±5 Ω
    Insulation resistance >2000 MΩ
    Environmental protection IP68
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.

    applications

    • Low-profile platforms
    • Loss-in-weight feeders
    • Marine and hybrid scales
    • Belt weighers
    • Demanding food industry environments

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
