High-Precision, Versatile Load Cell for Tension and Compression Applications

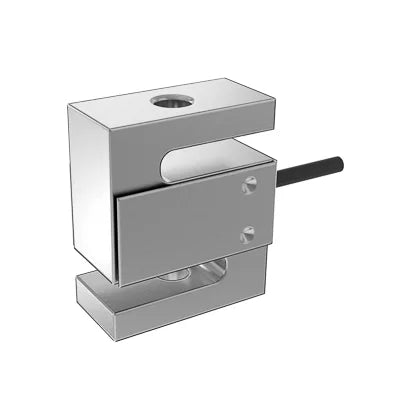

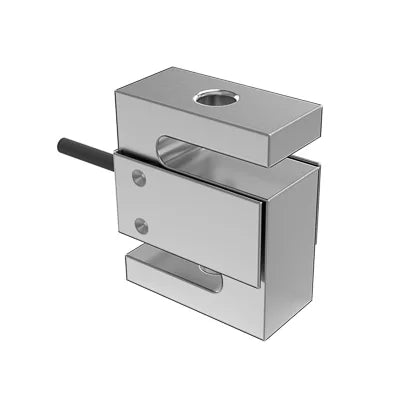

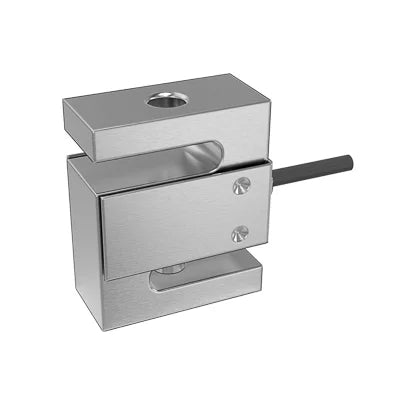

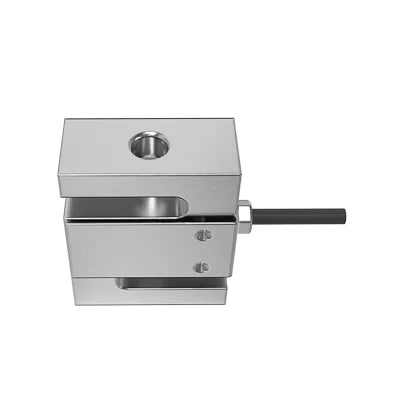

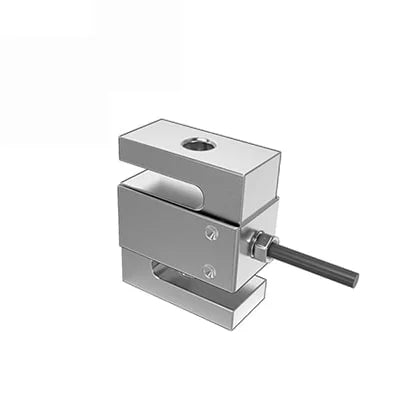

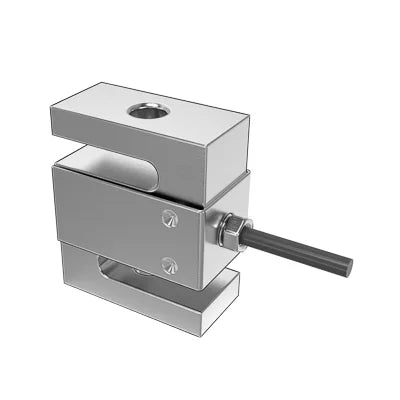

The 500kg Load Cell – Model 9363 S-Type from Revere is a stainless-steel multipurpose load cell designed for both tension and compression applications. Built for accuracy and durability, this load cell delivers stable, repeatable, and reliable measurements, making it ideal for industrial, commercial, and laboratory weighing systems.
Key Features & Benefits:
Capacity: 500 kg (available in 50–10,000 kg / 50–20,000 lbs variants)
Construction: Stainless steel for corrosion resistance and long-term durability
Multipurpose Design: Suitable for both tension and compression applications
Environmental Protection: IP67 rated – dust-tight and protected against water immersion
Precision Engineering: Ensures reliable and accurate measurements under demanding conditions
Applications:
Tension and compression testing
Industrial weighing systems
Laboratory and research applications
Smart Tip: The 9363 S-Type Load Cell is perfect for setups requiring a robust, versatile, and high-precision load cell that handles both tension and compression forces.
Description
Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.
The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.
The product meets the stringent Weights and Measures requirements throughout Europe and the USA.
Features
Options
Description
Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.
The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.
The product meets the stringent Weights and Measures requirements throughout Europe and the USA.
Features
Options
| Parameter | Value | Unit | ||
|---|---|---|---|---|
| Rated capacity (kg) | 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 | kg | ||
| Rated capacity (lbs) | 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k | lbs | ||
| NTEP/oiml accuracy class | NTEP IIIL | Non-Approved | OIML C3 | |
| Max. no. of intervals (n) | 10000 | D3 | 3000 | |
| Rated output R.O | 3 | mV/V | ||
| Rated output tolerance | 0.0075 | ±%mV/V | ||
| Zero balance | 1 | ±%FSO | ||
| Non-repeatability | 0.0100 | 0.0100 | 0.0100 | ±%FSO |
| Creep error | — | ±%FSO | ||
| Ultimate over load | 250 | % of R.C | ||
| Excitation voltage | 5 to 12 | VDC or VAC RMS | ||
| Max. excitation voltage | 15 | VDC or VAC RMS | ||
| Input resistance | 390±15 | Ω | ||
| Output resistance | 350±3.5 | Ω | ||
| Insulation resistance | ≥5000 | MΩ | ||
| Environmental protection | IP67 | |||
