500kg Load Cell – 355 Welded, Hermetically Sealed Load Cell

500kg Load Cell – 355 Welded, Hermetically Sealed Load Cell

Product form

High-Accuracy, Moisture-Protected Load Cell for Industrial Weighing The 500kg Load Cell – Model 355 from Tedea-Huntleigh is a welded bending... Read more

    • Shipped today? Order within: Oct 12, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    High-Accuracy, Moisture-Protected Load Cell for Industrial Weighing

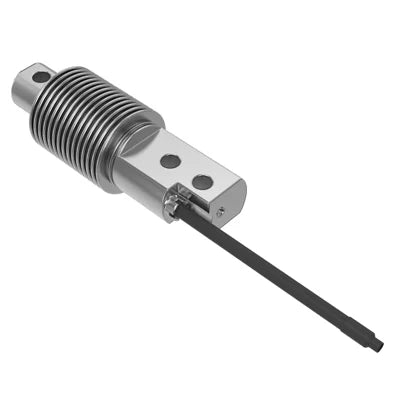

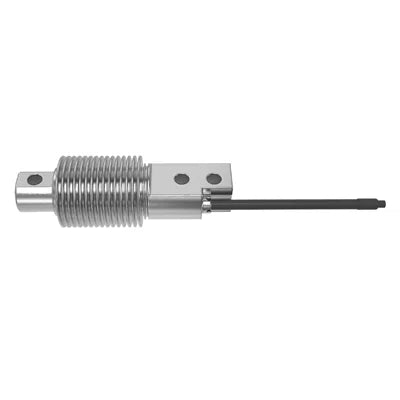

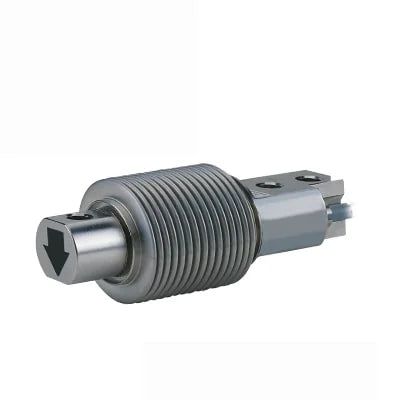

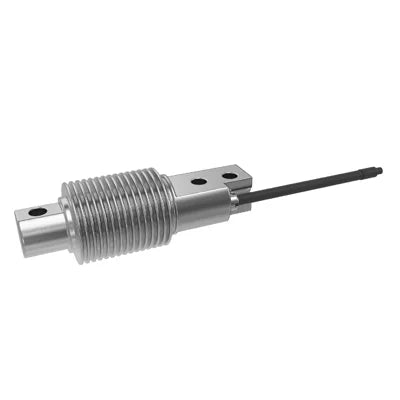

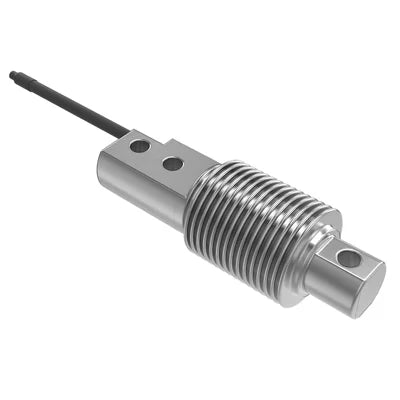

    The 500kg Load Cell – Model 355 from Tedea-Huntleigh is a welded bending load cell made from stainless steel and hermetically sealed against moisture. Featuring a polyurethane-shielded cable, this load cell is designed for reliable performance in demanding and harsh environments, making it ideal for industrial, process, and platform weighing applications.

    Download Data Sheet

    Key Features & Benefits:

    • Capacity: 500 kg (available in 5–500 kg variants)

    • Construction: Stainless steel for corrosion resistance and long-term durability

    • Hermetically Sealed: Fully protected against moisture for wet or harsh conditions

    • Approvals: OIML R60 and NTEP certified – ensures compliance and high-accuracy measurements

    • Environmental Protection: IP68 rated – dust-tight and fully water-immersible

    • Precision Engineering: Provides stable, repeatable, and reliable measurements

    Applications:

    • Industrial and process weighing

    • Platform and bench scales in harsh environments

    • Applications requiring moisture protection and high precision

    Limitations:

    • Not ATEX/FM approved – unsuitable for explosive or hazardous environments

    Smart Tip: The Model 355 is perfect for industrial setups where durability, moisture protection, and high-accuracy measurements are critical.

    Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications.

    With its low profile, high accuracy and hermetic sealing, the Model 355 load cell is ideal for applications such as low-profile platforms, weighing and packing machines, conversion of mechanical and varied other applications where sealed cells are required. For hazardous environments, this load cell is available with EEx ia IIC T6 level of approval as an option.

    Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.


    Features

    • Capacities: 5–500 kg
    • Stainless steel construction
    • OIML R60 and NTEP approved
    • IP68 protection

    Options

    • EEx ia IIC T6 hazardous area approval
    • FM and IECEx approvals available
    Parameter Value Unit
    Rated capacity (kg) 5, 10, 20, 30, 50, 100, 200, 250, 500 kg
    NTEP/oiml accuracy class NTEP Non-Approved C3 C4
    Max. no. of intervals (n) 4000 single 1000 3000 4000
    Rated output R.O 2.00 (UR matched = 2.02) mV/V
    Rated output tolerance 0.002 ±%mV/V
    Zero balance 0.04 ±%FSO
    Ultimate over load 300 % of R.C
    Excitation voltage 10 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 380±10 Ω
    Output resistance 355±5 Ω
    Insulation resistance >2000 MΩ
    Environmental protection IP68
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.

    applications

    • Low-profile platforms
    • Loss-in-weight feeders
    • Marine and hybrid scales
    • Belt weighers
    • Demanding food industry environments

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor
