High-Accuracy, Washdown-Ready Load Cell for Industrial Weighing

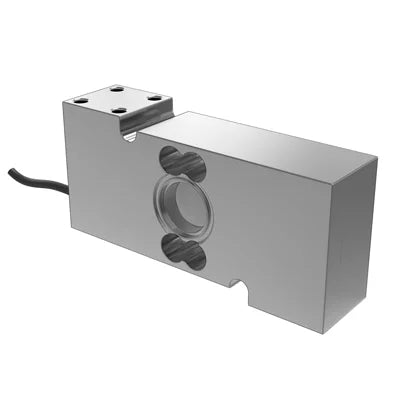

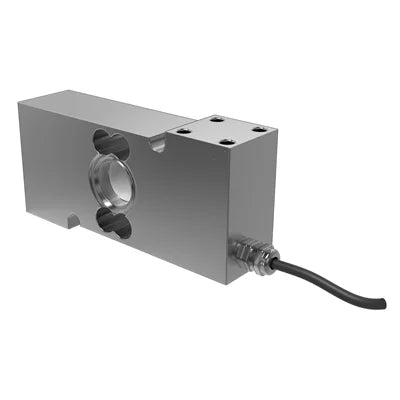

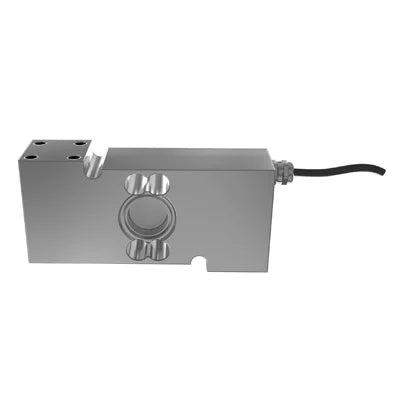

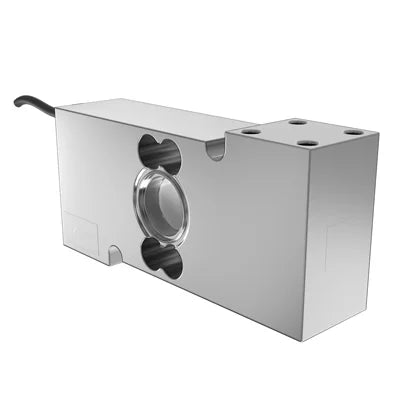

The 500kg Load Cell – Model 1510 from Tedea-Huntleigh is a high-accuracy single-point load cell designed for industrial applications requiring regular washdowns, such as platform scales, wall scales, and other process weighing systems in the food industry. Constructed from stainless steel and engineered for precision, this load cell delivers reliable, repeatable, and accurate measurements in demanding environments.
Key Features & Benefits:
Capacity: 500 kg (available in 100–500 kg variants)
Construction: Stainless steel for corrosion resistance and washdown durability
Platform Compatibility: Single-point 600 × 600 mm – suitable for medium to large industrial platforms
Accuracy / Class Code: OIML 3000 d C3MR10 – ensures high-precision weighing
Mounting Thread Type: MT – secure and easy installation
Environmental Protection: IP68 rated – fully protected against dust and prolonged water immersion
Output: Standard product – reliable signal for industrial weighing systems
Applications:
Industrial platform and wall scales
Food industry process weighing
Washdown-prone industrial environments
Limitations:
Not ATEX/FM approved – unsuitable for explosive or hazardous environments
Smart Tip: The 1510 Load Cell is ideal for applications where precision, durability, and washdown resistance are critical.
Description
Model 1510 is a high-accuracy single-point load cell ideally suited to industrial applications which undergo regular washdown, typically platforms, wall scales and other process weighing applications in the food industry.
Hermetically sealed against moisture, the all-welded construction of the 1510, in combination with a polyurethane dual-shielded cable, enables continuous operation in demanding environments while maintaining a high operating specification.
The two additional sense wires feed back the voltage reaching the load cell.
Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
Features
Options
| Parameter | Value | Unit | |||
|---|---|---|---|---|---|
| Rated capacity (kg) | 100, 250, 500 | kg | |||
| NTEP/oiml accuracy class | NTEP | Non-approved | C3 | C4 | |
| Max. no. of intervals (n) | 5000 single | 1000 | 3000 | 4000 | |
| Rated output R.O | 2 | mV/V | |||
| Rated output tolerance | 0.2 | ±%mV/V | |||
| Zero balance | 0.2 | ±%FSO | |||
| Ultimate over load | 300 | % of R.C | |||
| Excitation voltage | 10 | VDC or VAC RMS | |||
| Max. excitation voltage | 15 | VDC or VAC RMS | |||
| Input resistance | 380±10 | Ω | |||
| Output resistance | 350±2 | Ω | |||
| Insulation resistance | >1000 | MΩ | |||
| Environmental protection | IP68 | ||||
