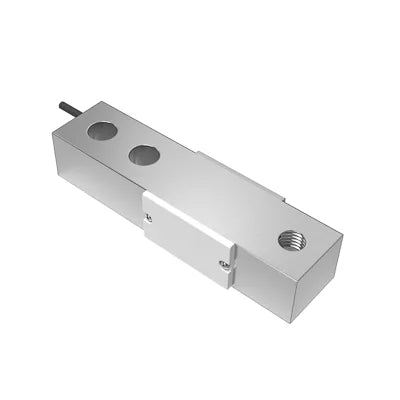

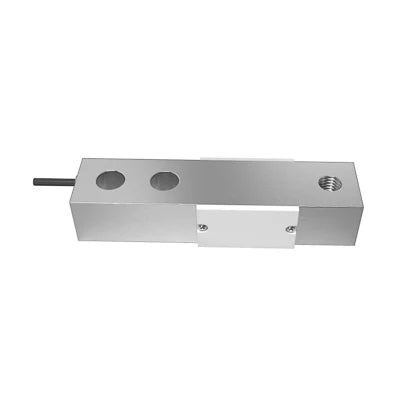

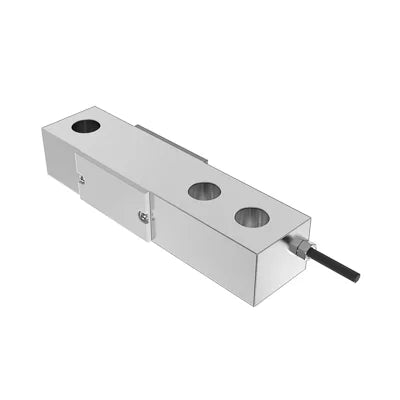

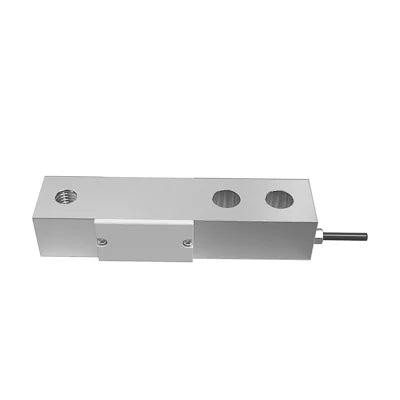

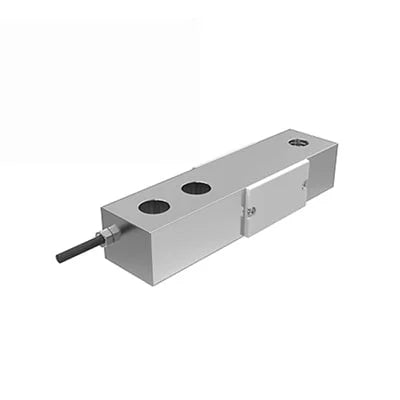

500 kg Shear Beam Load Cell – Model 65023 | High-Accuracy Sensortronics Load Cell

500 kg Shear Beam Load Cell – Model 65023 | High-Accuracy Sensortronics Load Cell

Product form

Reliable, Precision-Engineered Shear Beam Load Cell for Industrial Weighing The 500 kg Shear Beam Load Cell (Model 65023) by Sensortronics... Read more

    • Shipped today? Order within: Oct 12, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    Reliable, Precision-Engineered Shear Beam Load Cell for Industrial Weighing

    The 500 kg Shear Beam Load Cell (Model 65023) by Sensortronics delivers high-accuracy and long-term stability in platform and process weighing systems. This low-profile shear beam load cell is specifically engineered for platform scales, pallet scales, and industrial process weighing, where consistency and ruggedness are mission-critical.

    Download Data Sheet

    Key Technical Features

    • Capacity: 500 kg (available from 125 kg up to 10,000 kg)

    • Design: Low-profile shear-beam for compact integration in scale bases

    • Construction: High-quality alloy steel ensuring long-term strength and reliability

    • Load Hole Options: Available in both “Thru” and “Threaded” configurations for versatile mounting

    • Axial Load Performance: Engineered for low sensitivity to side or axial loads, maintaining superior accuracy

    • Environmental Protection: IP67-rated, providing excellent resistance to dust and moisture

    • Accuracy Class: Suitable for OIML-certified scale designs and process automation systems

    • Manufacturer: Sensortronics – renowned for precision load measurement technology

    Applications

    • Industrial Platform Scales

    • Pallet Weighing Systems

    • Tank and Hopper Weighing

    • Process Automation Weighing Equipment

    • Conveyor Belt Weight Measurement

    Why Choose the 500 kg Shear Beam Load Cell (Model 65023)?

    With robust design, environmental durability, and precision performance, the Sensortronics 65023 series stands out as a reliable workhorse for industrial and commercial weighing environments. Whether it’s for heavy-duty manufacturing lines or precision packaging systems, this load cell ensures consistent, repeatable measurements that drive operational accuracy and efficiency.

    For businesses operating in challenging conditions, the IP67 environmental code ensures the load cell remains sealed and protected, even in dusty or damp settings.

    Smart Tip:

    Looking for moisture-proof, high-durability load cells for industrial weighing?
    Explore Tedea-Huntleigh’s 355 Welded Load Cell Series or Sensortronics’ advanced shear beam range for versatile options that match your application.

    Description

    Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.

    It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.

    Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.

    Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.


    Features

    • Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
    • “Thru” or “threaded” load hole configurations
    • Low sensitivity to axial loads
    • Low-profile (ultra-low-profile available in 1000 to 2500 pound ranges)
    • Sensorgage™ sealed to IP67 standards
    • Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G
    • Non- incendive ratings (without barriers)
    • Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available

    Options

    • Ex ia IIC T4, Ex ia IIIC T135°C hazardous area approval
    • Stainless-steel versions available
    • 65059 TWA companion weighing assemblies available
    • EDOC product appearance will differ from the photograph due to coating
    Parameter Value Unit
    Rated capacity (kg) 125, 250, 500, 750, 1000, 2000, 5000, 10000 kg
    Rated capacity (lbs) 250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k lbs
    NTEP/oiml accuracy class NTEP III NTEP IIIL Standard OIML R60
    Max. no. of intervals (n) 3000 single 10000 multiple — 3000
    Rated output R.O 3 mV/V
    Rated output tolerance 0.25 ±%mV/V
    Zero balance 1 ±%FSO
    Non-repeatability 0.01 ±%FSO
    Creep error 0.025 0.03 0.03 0.017 ±%FSO
    Ultimate over load 300 % of R.C
    Excitation voltage 10 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 343–357 Ω
    Output resistance 349–355 Ω
    Insulation resistance >1000 MΩ
    Environmental protection IP67
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.

    Applications

    • Floor scales
    • Tank weighing
    • Bin and hopper weighing

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
