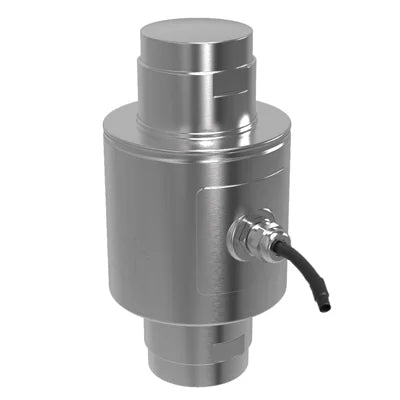

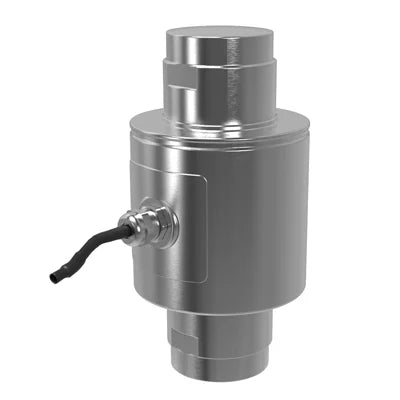

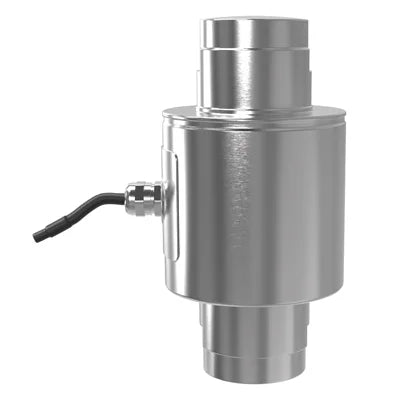

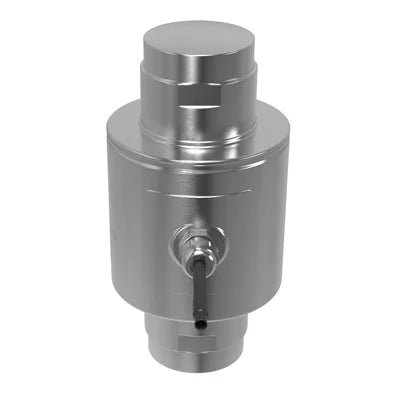

The 40000kg Load Cell – ASC2 Compression Load Cell from Revere is a single-column, stainless-steel compression load cell engineered for industrial and heavy-duty weighing applications. Fully compatible with the original ASC model, it delivers precise, repeatable measurements even under extreme load conditions.
With hermetic sealing and IP66/IP68/IP69K protection, this load cell is ideal for harsh industrial environments, providing long-lasting durability and reliable performance in wet, dusty, or high-impact conditions.
Capacity: 40000 kg (40 t; Capacities: 30, 40, 50 t)
Material: Stainless Steel
Design: Single-column, self-aligning
Cable Length: 20 m
Accuracy / Class Code: OIML 3000 d C3MR10
Mounting Thread Type: NA
Output: Standard Product
Environmental Protection: IP69K
Brand: Revere
SKU: 0ASC2-040T-31-01X
Approval / Safety Code: Not ATEX/FM approved
Stock Status: In Stock
Why Choose the 40000kg ASC2 Compression Load Cell?
The ASC2 40t load cell combines high-capacity precision with robust stainless-steel construction. Its self-aligning, single-column design ensures accurate compression measurements, while hermetic sealing with IP69K protection guarantees reliable operation in the harshest industrial conditions. Perfect for heavy-duty process weighing, automation, and large-scale machinery.
Key Benefits
High-accuracy compression measurement for extreme loads
Durable stainless-steel housing for corrosion resistance
Hermetically sealed IP66/IP68/IP69K protection
Self-aligning single-column design for consistent load distribution
OIML 3000 d C3MR10 certified for precision and reliability
For mounting kits, digital indicators, and accessories, visit Sensors and Gauges.
Description
Model ASC2 is a single column, stainless-steel compression load cell fully compatible with the original Model ASC.
The product is suitable for use in road and rail weighbridges and process-weighing applications.
Fully-welded construction and built-in surge protection ensures that this product can be used successfully in many demanding environments.
This load cell meets the stringent Weights and Measures requirements throughout Europe and the Americas.
Features
Capacities: 30, 40 and 50 t
Self-aligning, stainless-steel single column
Hermetically sealed, IP66/68/69K
Certified to OIML R60 5500d and NTEP IIIL/10,000 d
Built-in surge protection
Current calibration output ensures easy and accurate parallel calibration of multiple load cells
Compatible with the original Model ASC
Options
Digital version available (Model DSC2)
ATEX and IECEx approvals
Parameter
Value
Unit
Rated capacity (kg)
30000, 40000, 50000
kg
NTEP/oiml accuracy class
IIIL/10000 Multiple
C2
C3
C3MR10
C4MR10
C5.5MR10
Max. no. of intervals (n)
10000
2000
3000
3000
4000
5500
Rated output R.O
2
mV/V
Rated output tolerance
0.02
±%mV/V
Zero balance
0.02
±%FSO
Non-repeatability
—
±%FSO
Creep error
0.050
0.025
0.025
0.025
0.018
0.013
±%FSO
Ultimate over load
300
% of R.C
Excitation voltage
5–15
VDC or VAC RMS
Max. excitation voltage
10
VDC or VAC RMS
Input resistance
1160 ±60
Ω
Output resistance
1011.5 ±11.5
Ω
Insulation resistance
>2000
MΩ
Environmental protection
IP66/IP68 (100 hr at 1 m) / IP69K
FSO - Full Scale Output
All specifications subjects to change whithout notice.
Applications
Weighbridges
Process weighing
Specifications
Weight: 200gr
Usage: Indoor & outdoor
