Description
Built for Durability in Harsh Industrial Environments

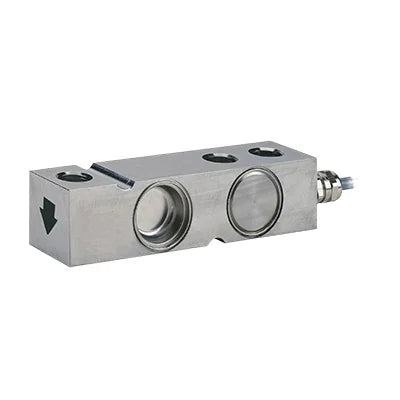

The 3510 Stainless Steel Shear Beam Load Cell (500 kg) by Tedea-Huntleigh represents the gold standard in industrial-grade weighing technology. Designed for long-lasting performance in hostile environments, this load cell combines robust stainless steel construction with OIML R60 and NTEP approval, ensuring accurate, stable measurements even under challenging conditions.
Perfect for platform scales, process weighing systems, and tank applications, the Model 3510 offers a dependable, low-profile solution trusted across industries where precision meets performance.
Environmental Protection: IP68 equivalent (fully welded and moisture resistant)
Brand:Tedea-Huntleigh
SKU: 03510-500K-C3-01X
Availability:In Stock
Approval / Safety Code: Not ATEX/FM approved
Why Choose the 3510 500 kg Shear Beam Load Cell?
When weighing precision meets rugged design, the Tedea-Huntleigh 3510 stands out. Its stainless-steel construction ensures corrosion resistance and durability, while the OIML and NTEP certifications validate its performance accuracy. The low-profile architecture makes it ideal for compact and high-traffic weighing setups, delivering consistent reliability day after day.
Key Advantages
High-precision weighing across multiple industrial applications
Fully welded stainless-steel body for superior environmental protection
Compatible with platform, process, and tank scales
Excellent load stability and repeatability
Designed for harsh washdown and outdoor use
Applications
Platform and floor scales
Hopper and tank weighing
Conveyor and batching systems
Process automation setups
Industrial washdown areas
Smart Tip
If you’re looking for complementary load cells and weighing accessories, check out Load Cell Solutions Australia and Load Cell Shop — trusted DoFollow resources for professional-grade weighing solutions.
Description
The Model 3510 provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical, low-profile range suitable for platform scale manufacture.
Its low profile and fully welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos.
The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell.
Hermetically sealed against moisture, the construction of the Model 3510, in combination with a polyurethane dual shielded cable, enables continuous operation in demanding environments while maintaining a high operating specification.
The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
Features
Capacities 300–5000 kg, 1000–5000 lbs
Stainless steel construction
OIML R60 and NTEP approved
Hermetically sealed to IP68 and IP69K
Specially designed for demanding environments
Options
EEx ia IIC T6 hazardous area approval
FM and IECEx approvals available
1100Ω impedance available
Parameter
Value
Unit
Rated capacity (kg)
300, 500, 750, 1000, 1200, 2000, 3000, 5000
kg
Rated capacity (lbs)
1000, 1500, 2500, 4000
lbs
NTEP/oiml accuracy class
NTEP | Non-Approved | C3 | C6
Max. no. of intervals (n)
3000 single, 5000 multiple | 1000 | 3000 | 6000
Rated output R.O
2.0 for kg and 3.0 for lbs
mV/V
Rated output tolerance
0.1
±%mV/V
Zero balance
2
±%FSO
Creep error
0.0200 | 0.0500 | 0.0200 | 0.0100
±%FSO
Temp. effect on sensitivity
0.0023 | 0.0100 | 0.0023 | 0.0007
±%FSO/F
Temp. effect on min dead load output
0.0010 | 0.0030 | 0.0010 | 0.00058
±%FSO/F
Ultimate over load
300
% of R.C
Excitation voltage
10
VDC or VAC RMS
Max. excitation voltage
15
VDC or VAC RMS
Input resistance
380±10
Ω
Output resistance
355±5
Ω
Insulation resistance
>2000
MΩ
Environmental protection
IP68, IP69K
FSO - Full Scale Output
All specifications subjects to change whithout notice.
Application
Low profile platforms
Pallet truck weighing
Tank and silo weighing
Demanding environment weighing
Food industry weighing
Specifications
Weight: 200gr
Usage: Indoor & outdoor
