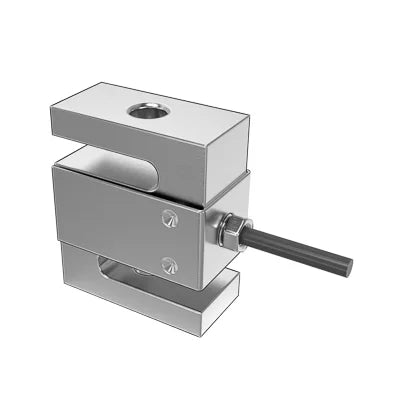

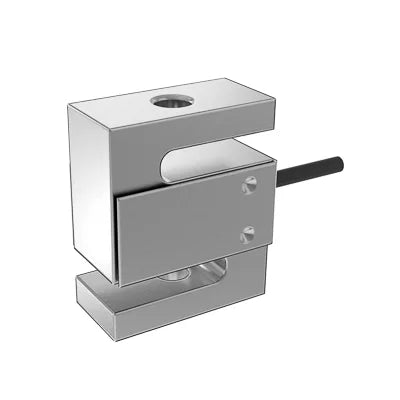

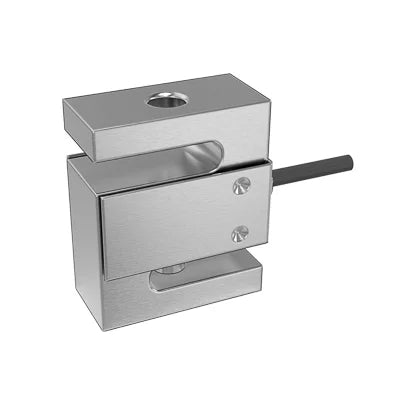

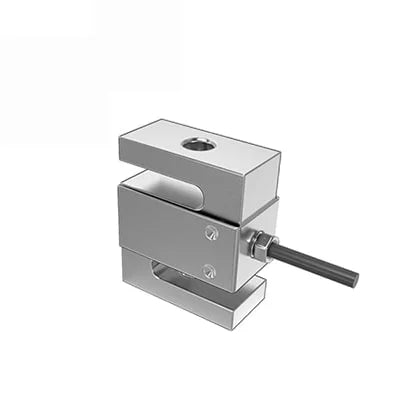

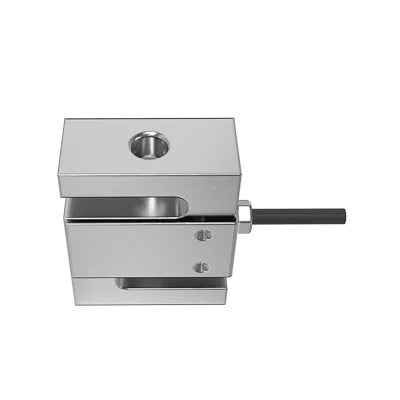

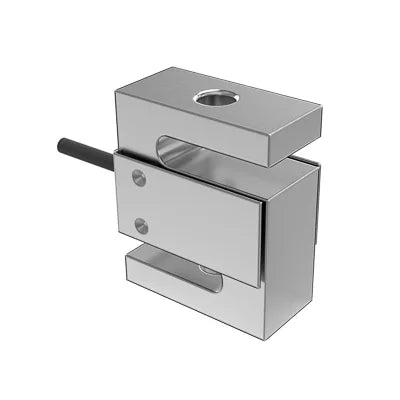

250kg Load Cell – 9363 S-Type Load Cell

250kg Load Cell – 9363 S-Type Load Cell

Product form

Versatile and Durable Load Cell for Tension and Compression Applications The 250kg Load Cell – Model 9363 S-Type from Revere... Read more

    • Shipped today? Order within: Oct 12, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    Versatile and Durable Load Cell for Tension and Compression Applications

    The 250kg Load Cell – Model 9363 S-Type from Revere is a stainless-steel multipurpose load cell designed for both tension and compression applications. Engineered for reliability and precision, this load cell delivers accurate, repeatable, and stable measurements, making it suitable for a wide range of industrial, commercial, and laboratory weighing systems.

    Download Data Sheet

    Key Features & Benefits:

    • Capacity: 250 kg (available in 50–10,000 kg / 50–20,000 lbs variants)

    • Construction: Stainless steel for long-lasting durability and corrosion resistance

    • Multipurpose Design: Ideal for both tension and compression applications

    • Environmental Protection: IP67 rated – dust-tight and resistant to water immersion

    • Precision Engineering: Ensures reliable measurements in demanding industrial or laboratory settings

    Applications:

    • Tension and compression testing

    • Industrial weighing systems

    • Laboratory and research applications

    Smart Tip: The 9363 S-Type Load Cell is perfect for applications that demand a robust, versatile, and high-precision load cell capable of handling both tension and compression forces.

    Description

    Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.

    The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications.

    Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.

    The product meets the stringent Weights and Measures requirements throughout Europe and the USA.


    Features

    • Capacities: 50 to 10,000 kg (50 to 20,000 lbs)
    • Stainless-steel construction
    • Suitable for compression and tension applications
    • Trimmed output versions standard
    • Sealing: IP67
    • Certified to OIML R-60, 3000d, NTEP class IIIL, 10000 divisions

    Options

    • FM approved for use in potentially explosive atmospheres
    Parameter Value Unit
    Rated capacity (kg) 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 kg
    Rated capacity (lbs) 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k lbs
    NTEP/oiml accuracy class NTEP IIIL Non-Approved OIML C3
    Max. no. of intervals (n) 10000 D3 3000
    Rated output R.O 3 mV/V
    Rated output tolerance 0.0075 ±%mV/V
    Zero balance 1 ±%FSO
    Non-repeatability 0.0100 0.0100 0.0100 ±%FSO
    Creep error ±%FSO
    Ultimate over load 250 % of R.C
    Excitation voltage 5 to 12 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 390±15 Ω
    Output resistance 350±3.5 Ω
    Insulation resistance ≥5000
    Environmental protection IP67
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.

    Applications

    • Suspended hoppers
    • Overhead track scales
    • Force measurement

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
