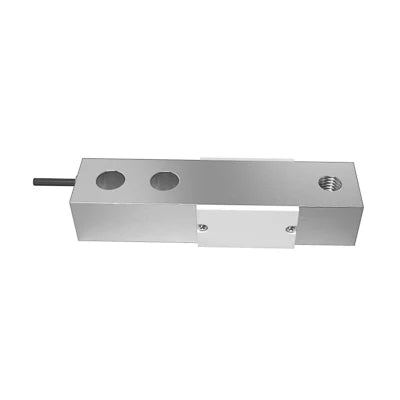

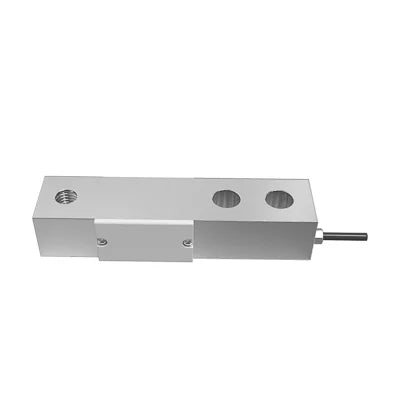

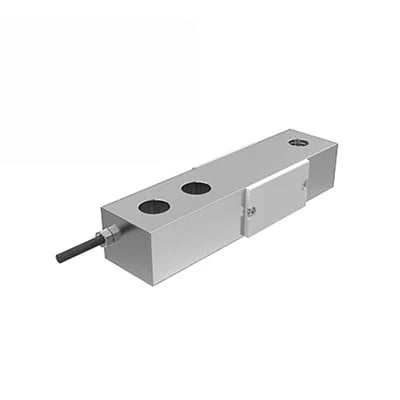

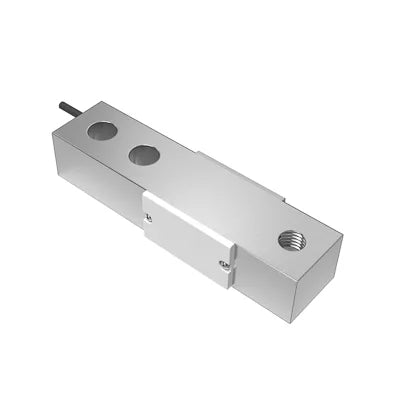

250 kg Shear Beam Load Cell | 65023 High-Accuracy Sensortronics Load Cell

250 kg Shear Beam Load Cell | 65023 High-Accuracy Sensortronics Load Cell

Product form

Reliable, Low-Profile Load Cell for Precision Weighing Applications The 250 kg Shear Beam Load Cell – Model 65023 from Sensortronics... Read more

    • Shipped today? Order within: Oct 12, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    Reliable, Low-Profile Load Cell for Precision Weighing Applications

    The 250 kg Shear Beam Load Cell – Model 65023 from Sensortronics is a high-accuracy, low-profile load cell engineered for performance and reliability in demanding weighing systems. Designed for platform scales, pallet scales, and process-weighing applications, this model ensures precise, stable readings even under challenging industrial conditions.

    Download Data Sheet

    Key Features & Technical Highlights

    • Capacity: 250 kg (rated capacities available up to 10,000 kg / 20,000 lb)

    • Type: Shear Beam Load Cell for industrial accuracy and durability

    • Design Options: “Thru” or “Threaded” load-hole configurations for flexible mounting

    • Construction: Rugged and low-profile design for compact installations

    • Accuracy: Excellent repeatability with low sensitivity to axial loads

    • Environmental Protection: IP67 rating ensures resistance to moisture, dust, and tough conditions

    • Manufacturer: Sensortronics

    • SKU: 65023-004E-A5-01F

    Description

    Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.

    It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.

    Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.

    Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.


    Features

    • Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
    • “Thru” or “threaded” load hole configurations
    • Low sensitivity to axial loads
    • Low-profile (ultra-low-profile available in 1000 to 2500 pound ranges)
    • Sensorgage™ sealed to IP67 standards
    • Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G
    • Non- incendive ratings (without barriers)
    • Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available

    Options

    • Ex ia IIC T4, Ex ia IIIC T135°C hazardous area approval
    • Stainless-steel versions available
    • 65059 TWA companion weighing assemblies available
    • EDOC product appearance will differ from the photograph due to coating
    Parameter Value Unit
    Rated capacity (kg) 125, 250, 500, 750, 1000, 2000, 5000, 10000 kg
    Rated capacity (lbs) 250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k lbs
    NTEP/oiml accuracy class NTEP III NTEP IIIL Standard OIML R60
    Max. no. of intervals (n) 3000 single 10000 multiple — 3000
    Rated output R.O 3 mV/V
    Rated output tolerance 0.25 ±%mV/V
    Zero balance 1 ±%FSO
    Non-repeatability 0.01 ±%FSO
    Creep error 0.025 0.03 0.03 0.017 ±%FSO
    Ultimate over load 300 % of R.C
    Excitation voltage 10 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 343–357 Ω
    Output resistance 349–355 Ω
    Insulation resistance >1000 MΩ
    Environmental protection IP67
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.

    Applications

    • Floor scales
    • Tank weighing
    • Bin and hopper weighing


    Performance Advantages

    • Enhanced stability under varying loads

    • Reduced measurement errors caused by side forces

    • Ideal for precision-critical weighing systems

    • Reliable operation in manufacturing, logistics, and processing environments

    Applications

    • Platform and floor scales

    • Pallet and hopper weighing systems

    • Industrial process and batching systems

    • Conveyor and automated material handling setups

    Technical Specifications

    • Material: High-strength alloy steel

    • Environmental Code: IP67 (moisture and dust-resistant)

    • Approval / Safety Code: Not ATEX/FM approved

    • Output: Consistent performance for long-term industrial use

    Smart Tip: If your weighing system operates in moderately harsh environments, the Sensortronics 65023 250 kg Shear Beam Load Cell is your go-to choice for dependable, precision measurement with minimal maintenance requirements.

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
