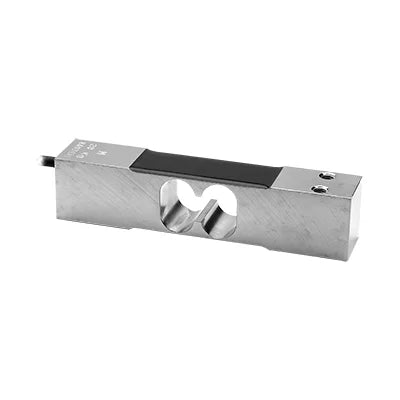

Name: 20kg Load Cell – Model 1130 Stainless Steel Single-Point Load Cell
Brand: Tedea-Huntleigh
SKU: 01130-020K-C3-08X
Price: 440.78 AUD
Availability: InStock

20kg Load Cell – Model 1130 Stainless Steel Single-Point Load Cell

Tedea-Huntleigh
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

20kg Load Cell – Model 1130 Stainless Steel Single-Point Load Cell

Tedea-Huntleigh
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Compact, Durable, and High-Precision Load Cell for Industrial and Commercial Weighing The 20kg Load Cell – Model 1130 from Tedea-Huntleigh... Read more

Shipped today? Order within: Oct 12, 2025 23:59:00 +1100

Free shipping on all orders above 50,00

No hassle returns, 30 days return

Pay whenever you want

Easily pay within 30 days after you have received your package.
Read more

Description

Compact, Durable, and High-Precision Load Cell for Industrial and Commercial Weighing

The 20kg Load Cell – Model 1130 from Tedea-Huntleigh is a low-profile stainless steel single-point load cell engineered for bench and platform scales, packaging systems, and process weighing equipment. Built to perform in demanding environments, this load cell delivers accurate, stable, and repeatable measurements, making it an ideal choice for industrial and commercial applications requiring precision.

Download Data Sheet

Key Features & Benefits:

Capacity: 20 kg (available in 7–100 kg variants)
Construction: Stainless steel for long-lasting durability and corrosion resistance
Platform Compatibility: Single-point 400 × 400 mm – perfect for standard bench and platform scales
Mounting Thread Type: MT – secure and easy installation
Environmental Protection: IP66 rated for full dust and water protection
Precision Engineering: Ensures reliable readings for commercial, industrial, and packaging weighing applications

Applications:

Bench and platform scales
Packaging machinery
Industrial process weighing

Limitations:

Not ATEX/FM approved – unsuitable for explosive or hazardous environments

Smart Tip: The Model 1130 is ideal for applications needing a compact, precise, and highly durable load cell for medium-capacity weighing.

Description

The Model 1130 is a low-profile stainless steel single point load cell ideally designed for direct mounting in bench and platform scales, packaging and process weighing equipment, and is built to perform in demanding environments.

The small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for low profile bench and counting scales. A special humidity resistant protective coating assures long-term stability over the entire compensated temperature range.

Constructed in stainless steel, this high accuracy load cell is approved to stringent approval standards, e.g., OIML and NTEP.

The two additional sense wires feed-back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

Features

Capacities 7–100 kg
Stainless steel construction
Single-point 400 × 400 mm platform
OIML R60 and NTEP approved
IP66 protection
Available with metric and UNC threads

Options

ATEX, FM and IECEx approvals available

Parameter	Value	Unit
Rated capacity (kg)	7, 10, 15, 20, 30, 50, 75, 100	kg
NTEP/oiml accuracy class	NTEP \| Non-Approved \| C3
Max. no. of intervals (n)	4000 single \| 1000 \| 3000
Rated output R.O	2.0	mV/V
Rated output tolerance	0.2	±%mV/V
Zero balance	0.2	±%FSO
Creep error	0.0015 \| 0.0500 \| 0.0200	±%FSO
Temp. effect on sensitivity	0.0030 \| 0.0100 \| 0.0023	±%FSO/F
Temp. effect on min dead load output	0.0008 \| 0.0030 \| 0.0010	±%FSO/F
Ultimate over load	300	% of R.C
Excitation voltage	10	VDC or VAC RMS
Max. excitation voltage	15	VDC or VAC RMS
Input resistance	385±15	Ω
Output resistance	350±3	Ω
Insulation resistance	>2000	MΩ
Environmental protection	IP66

FSO - Full Scale Output
All specifications subjects to change whithout notice.

Application

Demanding environment small platforms
Demanding environment check weighing

Specifications

Weight: 200gr
Usage: Indoor & outdoor
