Reliable, High-Capacity Load Cell for Multi-Cell Weighing Applications
The 2000kg Load Cell – SQB Single-Ended Load Beam from Celtron is a robust single-ended shear beam load cell engineered for multi-cell applications such as low-profile platform scales and small tank weighing systems. Designed to provide precise, stable, and repeatable measurements, this load cell is ideal for industrial setups requiring high side-load tolerance and durability.
Key Features & Benefits:
Capacity: 2000 kg (available in 250–5000 kg / 500–20,000 lbs variants)
Construction: Electroless nickel-plated alloy tool steel for enhanced durability and corrosion resistance
High Side-Load Tolerance: Maintains accuracy even under uneven or off-center loading
Versatile Multi-Cell Applications: Ideal for platform and tank scale setups
Safety & Approval: FM approved for industrial safety standards
Applications:
Low-profile platform scales
Small tank weighing systems
Multi-cell industrial weighing applications
Smart Tip: The SQB load beam is perfect for industrial applications where high accuracy and durability are required, even under side-loading conditions.
Description

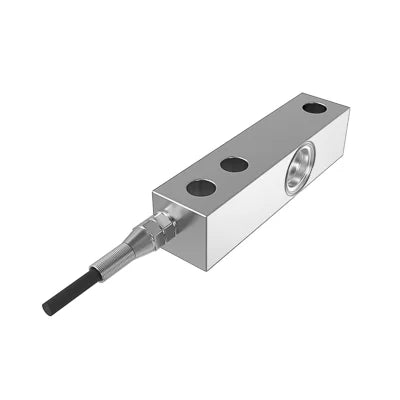

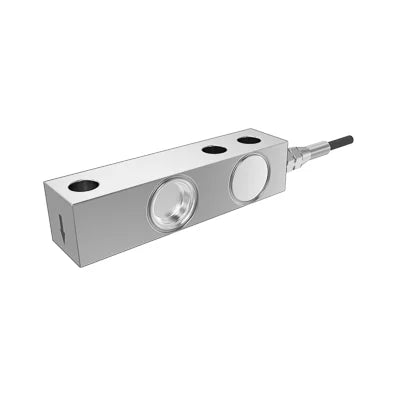

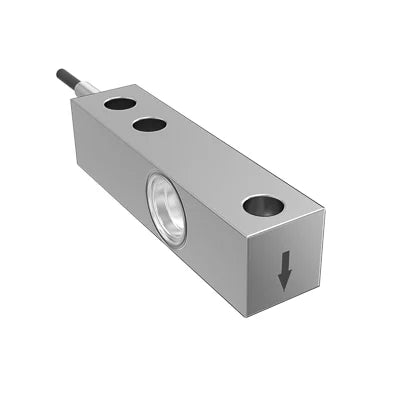

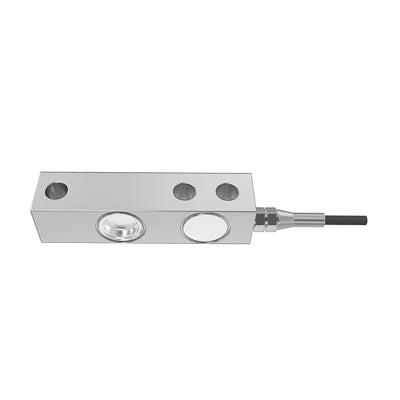

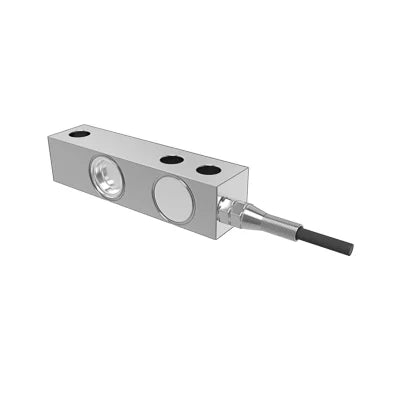

Model SQB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories.
It is insensitive to side loading and capable of reversed loading. Models SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage.
Features
Options
| Parameter | Value | Unit | |
|---|---|---|---|
| Rated capacity (kg) | 250, 500, 1000, 1500, 2000, 2500, 5000 | kg | |
| Rated capacity (lbs) | 500, 1k, 2k, 2.5k, 3k, 4k, 5kSE, 5k, 10k, 15k, 20k | lbs | |
| NTEP/oiml accuracy class | NTEP III | Non-Approved | |
| Max. no. of intervals (n) | 3000 single, 5000 multiple | 1000 | |
| Rated output R.O | 3 | mV/V | |
| Rated output tolerance | 0.25 | ±%mV/V | |
| Zero balance | 1 | ±%FSO | |
| Non-repeatability | 0.020 | 0.020 | ±%FSO |
| Creep error | 0.025 | 0.030 | ±%FSO |
| Ultimate over load | 300 | % of R.C | |
| Excitation voltage | 10 | VDC or VAC RMS | |
| Max. excitation voltage | 15 | VDC or VAC RMS | |
| Input resistance | 385±5 | Ω | |
| Output resistance | 350±3 | Ω | |
| Insulation resistance | >5000 | MΩ | |
| Environmental protection | IP67 | ||
