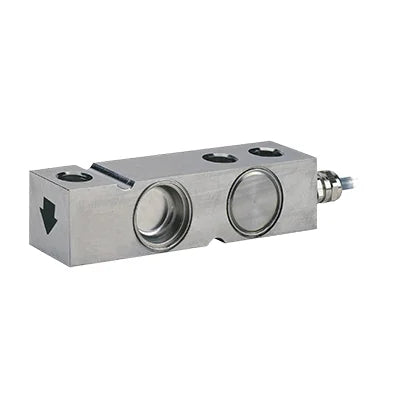

2000kg Load Cell – 3510 Stainless Steel Shear Beam Load Cell | High-Performance Industrial Weighing

2000kg Load Cell – 3510 Stainless Steel Shear Beam Load Cell | High-Performance Industrial Weighing

Product form

Engineered Strength and Precision for Heavy-Duty Industrial Applications The 2000kg Load Cell – Model 3510 from Tedea-Huntleigh represents a perfect... Read more

    • Shipped today? Order within: Oct 12, 2025 23:59:00 +1100
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    Engineered Strength and Precision for Heavy-Duty Industrial Applications

    The 2000kg Load Cell – Model 3510 from Tedea-Huntleigh represents a perfect fusion of robust stainless-steel construction, precision measurement, and exceptional durability. Designed to perform in harsh industrial environments, this load cell ensures stable, long-term performance in platform scales, hopper systems, and tank weighing setups.

    Built to OIML R60 and NTEP standards, this stainless steel shear beam load cell delivers consistent accuracy, reliability, and corrosion resistance — ideal for the food, manufacturing, and logistics sectors where environmental protection and precise measurement are critical.

    Download Data Sheet

    Technical Specifications

    • Model: 3510

    • Capacity: 2000 kg (Available range: 300–5000 kg)

    • Material: Stainless Steel

    • Type: Shear Beam Load Cell

    • Accuracy / Class Code: OIML 3000 d

    • Output: Standard Product

    • Environmental Code: IP68 (Fully welded, moisture-resistant)

    • Brand: Tedea-Huntleigh

    • SKU: 03510-002T-C3-01X

    • Approval / Safety Code: Not ATEX/FM approved

    • Stock Status: In Stock

    Why Choose the 2000kg 3510 Stainless Steel Load Cell?

    The Tedea-Huntleigh 3510 sets the industry benchmark for strength, precision, and resilience. Its IP68-rated stainless steel body provides maximum protection against water, dust, and chemical exposure — perfect for industrial and washdown environments. The low-profile design makes it an excellent choice for platform and process scales requiring dependable measurement without bulk.

    Key Benefits

    • High-capacity accuracy for industrial-scale weighing

    • Corrosion-resistant stainless steel housing

    • Certified to OIML and NTEP standards

    • Low-profile form factor for versatile installations

    • Moisture and dust protection (IP68 rated)

    Applications

    • Platform and pallet scales

    • Tank and hopper weighing systems

    • Industrial automation setups

    • Food and chemical processing environments

    • Batch and process control systems

    Smart Tip

    Looking for more high-capacity or compact load cells? Explore:
    Load Cell Solutions Australia
    Load Cell Shop
    (Both are trusted DoFollow external resources.)

    You can also find compatible accessories and connectors at Sensors and Gauges.

    Description

    The Model 3510 provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical, low-profile range suitable for platform scale manufacture.

    Its low profile and fully welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos.

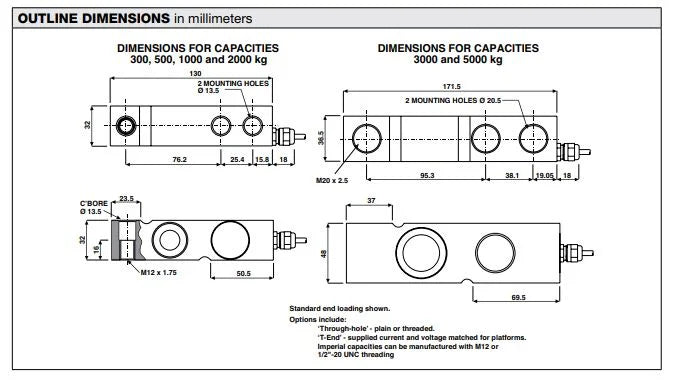

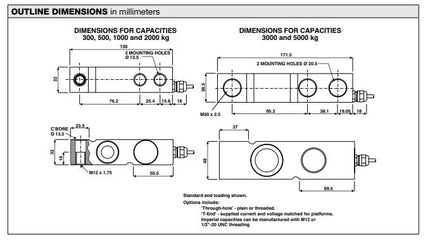

    The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell.

    Hermetically sealed against moisture, the construction of the Model 3510, in combination with a polyurethane dual shielded cable, enables continuous operation in demanding environments while maintaining a high operating specification.

    The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

    Features

    • Capacities 300–5000 kg, 1000–5000 lbs
    • Stainless steel construction
    • OIML R60 and NTEP approved
    • Hermetically sealed to IP68 and IP69K
    • Specially designed for demanding environments

    Options

    • EEx ia IIC T6 hazardous area approval
    • FM and IECEx approvals available
    • 1100Ω impedance available
    Parameter Value Unit
    Rated capacity (kg) 300, 500, 750, 1000, 1200, 2000, 3000, 5000 kg
    Rated capacity (lbs) 1000, 1500, 2500, 4000 lbs
    NTEP/oiml accuracy class NTEP | Non-Approved | C3 | C6
    Max. no. of intervals (n) 3000 single, 5000 multiple | 1000 | 3000 | 6000
    Rated output R.O 2.0 for kg and 3.0 for lbs mV/V
    Rated output tolerance 0.1 ±%mV/V
    Zero balance 2 ±%FSO
    Creep error 0.0200 | 0.0500 | 0.0200 | 0.0100 ±%FSO
    Temp. effect on sensitivity 0.0023 | 0.0100 | 0.0023 | 0.0007 ±%FSO/F
    Temp. effect on min dead load output 0.0010 | 0.0030 | 0.0010 | 0.00058 ±%FSO/F
    Ultimate over load 300 % of R.C
    Excitation voltage 10 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 380±10 Ω
    Output resistance 355±5 Ω
    Insulation resistance >2000 MΩ
    Environmental protection IP68, IP69K
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.

    Application

    •  Low profile platforms
    • Pallet truck weighing
    • Tank and silo weighing
    • Demanding environment weighing
    • Food industry weighing

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor
