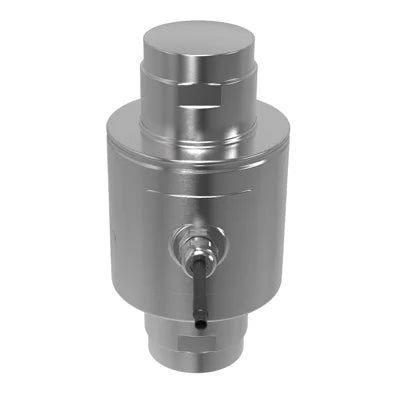

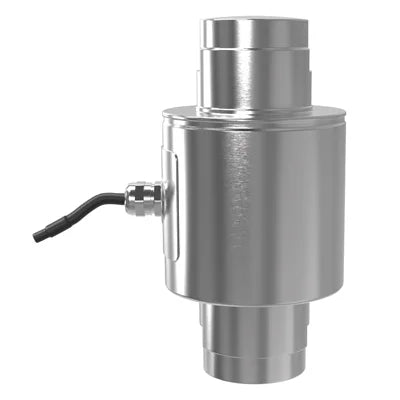

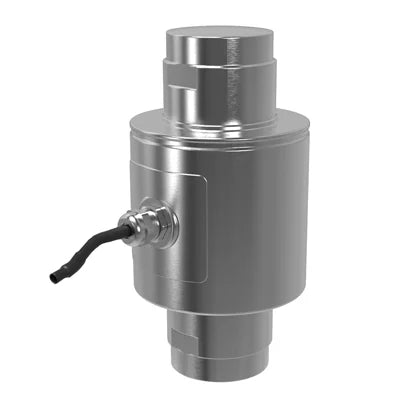

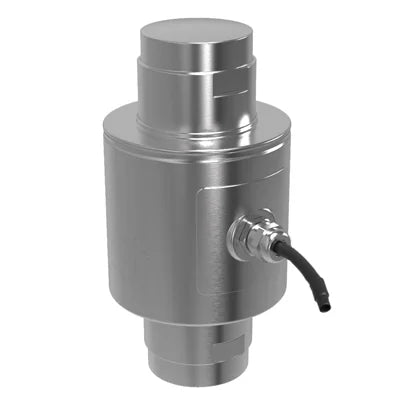

The 20000kg Load Cell – ASC2 Compression Load Cell from Revere is a single-column stainless-steel compression load cell designed for industrial and heavy-duty weighing applications. Fully compatible with the original ASC model, it delivers high-accuracy, repeatable measurements even under extreme load conditions.
Engineered with hermetic sealing and IP66/IP68/IP69K protection, this load cell is ideal for harsh environments, ensuring long-term durability in industrial, process, and automation systems.
Capacity: 20000 kg (20 t; Range: 30–50 t models available)
Material: Stainless Steel
Design: Single-column, self-aligning
Cable Length: 20 m
Accuracy / Class Code: OIML 3000 d C3MR10
Mounting Thread Type: NA
Output: Standard Product
Environmental Protection: IP69K
Brand: Revere
SKU: 0ASC2-020T-31-00X
Approval / Safety Code: Not ATEX/FM approved
Stock Status: In Stock
Why Choose the 20000kg ASC2 Compression Load Cell?
The ASC2 20t load cell combines high-capacity precision with robust stainless-steel construction. Its single-column, self-aligning design allows accurate compression measurements, while hermetic sealing with IP69K protection ensures reliable performance in wet, dusty, and harsh industrial environments.
Key Benefits
High-accuracy compression measurement for heavy-duty applications
Durable stainless-steel housing for corrosion resistance
Hermetically sealed with IP66/IP68/IP69K protection
Self-aligning single-column design for consistent load distribution
OIML 3000 d C3MR10 certified for precision and reliability
For additional mounting kits, digital indicators, and technical support, visit Sensors and Gauges.
Description
Model ASC2 is a single column, stainless-steel compression load cell fully compatible with the original Model ASC.
The product is suitable for use in road and rail weighbridges and process-weighing applications.
Fully-welded construction and built-in surge protection ensures that this product can be used successfully in many demanding environments.
This load cell meets the stringent Weights and Measures requirements throughout Europe and the Americas.
Features
Capacities: 30, 40 and 50 t
Self-aligning, stainless-steel single column
Hermetically sealed, IP66/68/69K
Certified to OIML R60 5500d and NTEP IIIL/10,000 d
Built-in surge protection
Current calibration output ensures easy and accurate parallel calibration of multiple load cells
Compatible with the original Model ASC
Options
Digital version available (Model DSC2)
ATEX and IECEx approvals
Parameter
Value
Unit
Rated capacity (kg)
30000, 40000, 50000
kg
NTEP/oiml accuracy class
IIIL/10000 Multiple
C2
C3
C3MR10
C4MR10
C5.5MR10
Max. no. of intervals (n)
10000
2000
3000
3000
4000
5500
Rated output R.O
2
mV/V
Rated output tolerance
0.02
±%mV/V
Zero balance
0.02
±%FSO
Non-repeatability
—
±%FSO
Creep error
0.050
0.025
0.025
0.025
0.018
0.013
±%FSO
Ultimate over load
300
% of R.C
Excitation voltage
5–15
VDC or VAC RMS
Max. excitation voltage
10
VDC or VAC RMS
Input resistance
1160 ±60
Ω
Output resistance
1011.5 ±11.5
Ω
Insulation resistance
>2000
MΩ
Environmental protection
IP66/IP68 (100 hr at 1 m) / IP69K
FSO - Full Scale Output
All specifications subjects to change whithout notice.
Applications
Weighbridges
Process weighing
Specifications
Weight: 200gr
Usage: Indoor & outdoor
