Industrial-Grade Accuracy for Platform and Process Weighing The 2000 kg Shear Beam Load Cell (Model 65023) by Sensortronics delivers uncompromising... Read more

Shipped today? Order within: Oct 12, 2025 23:59:00 +1100

Free shipping on all orders above 50,00

No hassle returns, 30 days return

Pay whenever you want

Easily pay within 30 days after you have received your package.
Read more

Description

Industrial-Grade Accuracy for Platform and Process Weighing

The 2000 kg Shear Beam Load Cell (Model 65023) by Sensortronics delivers uncompromising accuracy and durability for platform scales, pallet scales, and process weighing systems. Designed with a low-profile structure and robust alloy steel build, it ensures precise and consistent performance in heavy-duty industrial environments.

Technical Specifications

Model: 65023
Capacity: 2000 kg (available range: 125 kg to 10,000 kg)
Type: Shear Beam Load Cell
Material: Alloy Steel
Finish: Electroless Nickel-Plated for corrosion resistance
Mounting Options: “Thru” or “Threaded” load hole configurations
Axial Load Sensitivity: Low – ensures stable performance under lateral forces
Environmental Protection: IP67 rated – resistant to dust and water ingress
Applications: Platform weighing, pallet scales, hopper and tank weighing, automated weighing processes
Brand: Sensortronics
SKU: 65023-002T-C3-01F
Availability: In Stock

Why Choose the 2000 kg Shear Beam Load Cell?

Engineered for high-precision industrial applications, the Sensortronics 65023 provides reliable output under challenging load conditions. Its low-profile design and robust shear-beam construction ensure superior load stability and long-term repeatability. Whether used in batching systems or platform scales, this load cell offers dependable accuracy with minimal maintenance.

Download Data Sheet

Key Benefits

Exceptional weighing precision up to 2000 kg
Low sensitivity to off-axis loading for consistent readings
Suitable for static and dynamic weighing systems
Easy integration with existing scale platforms
Built for demanding industrial and commercial environments

Smart Tip

For complementary load cell models and accessories, explore
Load Cell Solutions Australia and
Load Cell Shop — both trusted DoFollow resources for advanced weighing technologies.

Description

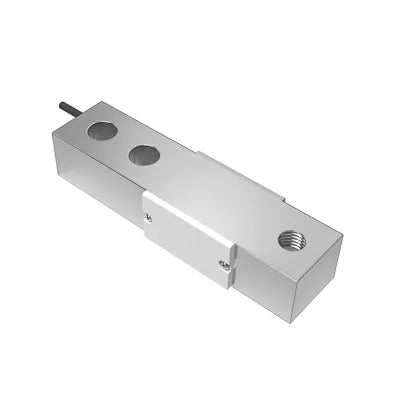

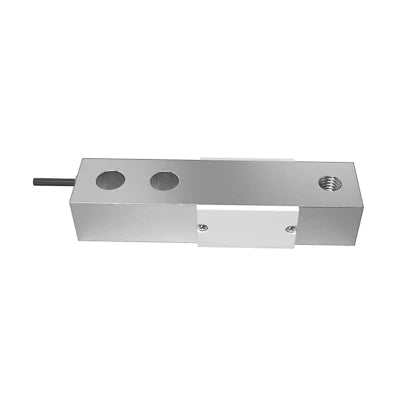

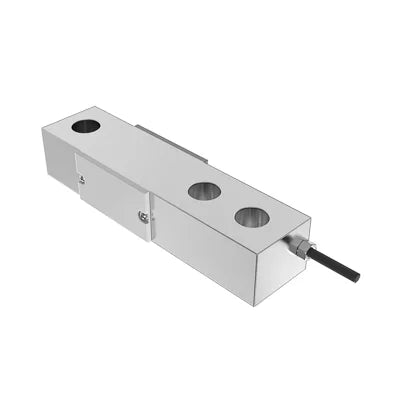

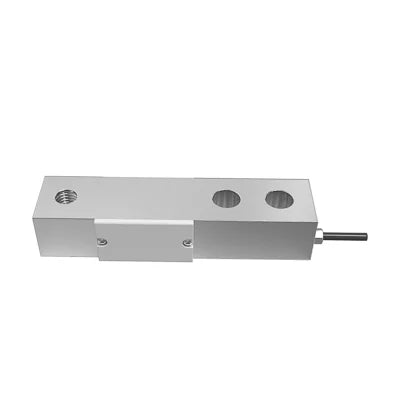

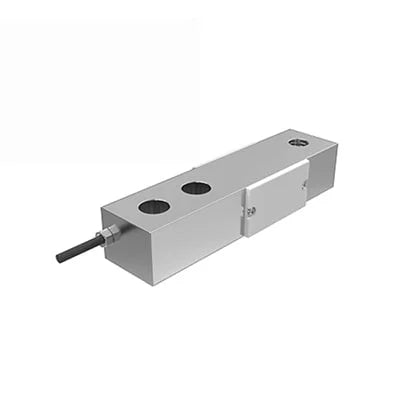

Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.

It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.

Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.

Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.

Features

Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
“Thru” or “threaded” load hole configurations
Low sensitivity to axial loads
Low-profile (ultra-low-profile available in 1000 to 2500 pound ranges)
Sensorgage™ sealed to IP67 standards
Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G
Non- incendive ratings (without barriers)
Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available

Options

Ex ia IIC T4, Ex ia IIIC T135°C hazardous area approval
Stainless-steel versions available
65059 TWA companion weighing assemblies available
EDOC product appearance will differ from the photograph due to coating

Parameter	Value				Unit
Rated capacity (kg)	125, 250, 500, 750, 1000, 2000, 5000, 10000				kg
Rated capacity (lbs)	250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k				lbs
NTEP/oiml accuracy class	NTEP III	NTEP IIIL	Standard	OIML R60
Max. no. of intervals (n)	3000 single	10000 multiple	—	3000
Rated output R.O	3				mV/V
Rated output tolerance	0.25				±%mV/V
Zero balance	1				±%FSO
Non-repeatability	0.01				±%FSO
Creep error	0.025	0.03	0.03	0.017	±%FSO
Ultimate over load	300				% of R.C
Excitation voltage	10				VDC or VAC RMS
Max. excitation voltage	15				VDC or VAC RMS
Input resistance	343–357				Ω
Output resistance	349–355				Ω
Insulation resistance	>1000				MΩ
Environmental protection	IP67

FSO - Full Scale Output
All specifications subjects to change whithout notice.

Applications

Floor scales
Tank weighing
Bin and hopper weighing

Specifications

Weight: 200gr
Usage: Indoor & outdoor
