Versatile, High-Precision Load Cell for Tension and Compression Applications

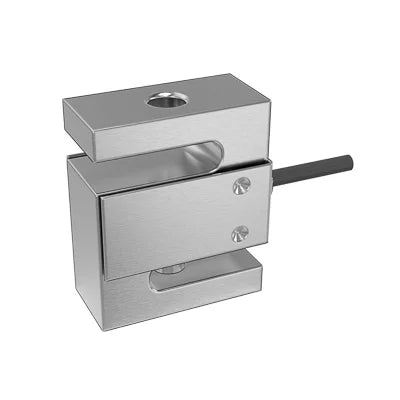

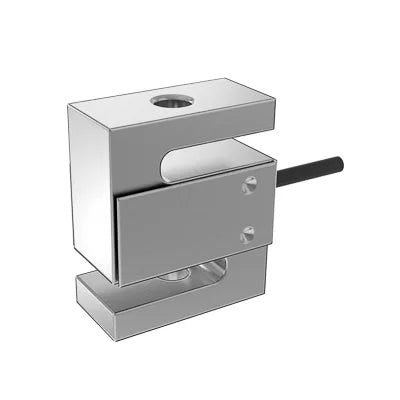

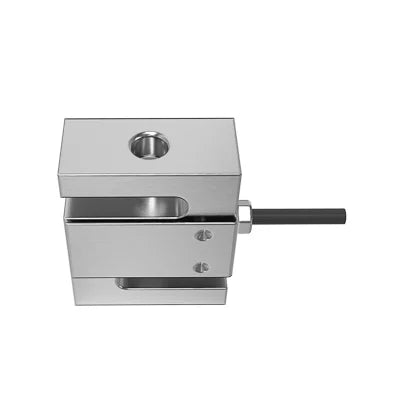

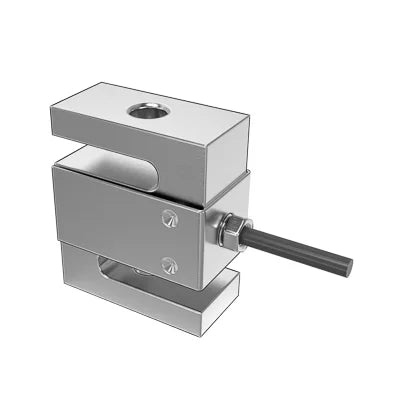

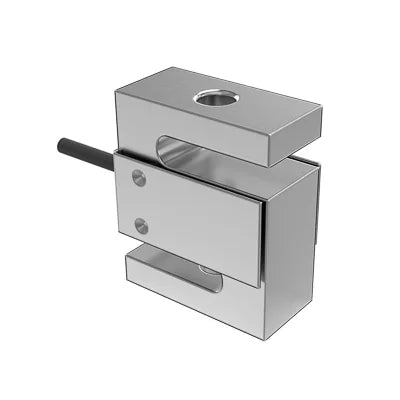

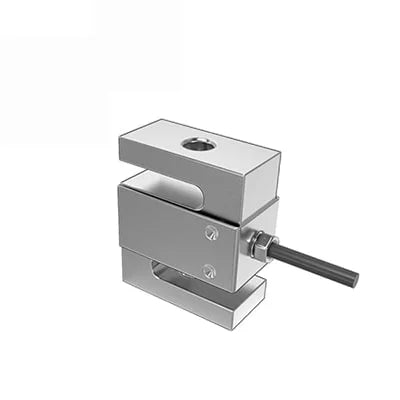

The 100kg Load Cell – Model 9363 S-Type from Revere is a multipurpose stainless-steel load cell designed for both tension and compression applications. Built for durability and precision, this load cell delivers accurate, stable, and repeatable measurements, making it ideal for industrial, commercial, and laboratory weighing setups.
Key Features & Benefits:
Capacity: 100 kg (available in 50–10,000 kg / 50–20,000 lbs variants)
Construction: Stainless steel for corrosion resistance and long-term durability
Multipurpose Design: Suitable for both tension and compression applications
Environmental Protection: IP67 rated – dust-tight and protected against immersion in water
Precision Engineering: Ideal for industrial, commercial, and testing environments requiring reliable and versatile load measurement
Applications:
Compression and tension testing
Industrial weighing systems
Laboratory and research applications
Smart Tip: The 9363 S-Type Load Cell is perfect for applications that require a durable, versatile, and high-precision load cell for both tension and compression.
Description
Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.
The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.
The product meets the stringent Weights and Measures requirements throughout Europe and the USA.
Features
Options
| Parameter | Value | Unit | ||
|---|---|---|---|---|
| Rated capacity (kg) | 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 | kg | ||
| Rated capacity (lbs) | 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k | lbs | ||
| NTEP/oiml accuracy class | NTEP IIIL | Non-Approved | OIML C3 | |
| Max. no. of intervals (n) | 10000 | D3 | 3000 | |
| Rated output R.O | 3 | mV/V | ||
| Rated output tolerance | 0.0075 | ±%mV/V | ||
| Zero balance | 1 | ±%FSO | ||
| Non-repeatability | 0.0100 | 0.0100 | 0.0100 | ±%FSO |
| Creep error | — | ±%FSO | ||
| Ultimate over load | 250 | % of R.C | ||
| Excitation voltage | 5 to 12 | VDC or VAC RMS | ||
| Max. excitation voltage | 15 | VDC or VAC RMS | ||
| Input resistance | 390±15 | Ω | ||
| Output resistance | 350±3.5 | Ω | ||
| Insulation resistance | ≥5000 | MΩ | ||
| Environmental protection | IP67 | |||
