Durable, Versatile Load Cell for Tension and Compression Applications

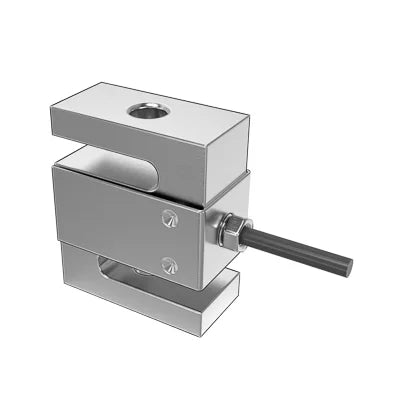

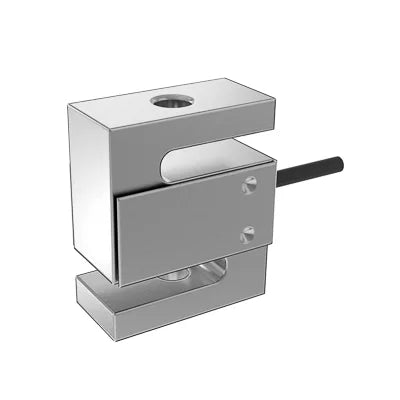

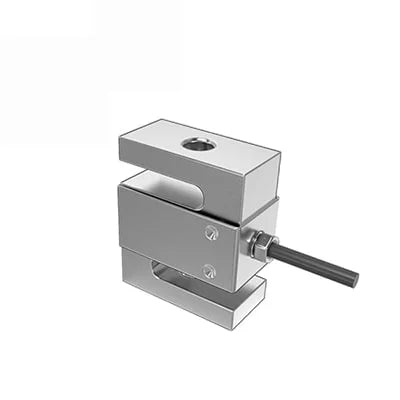

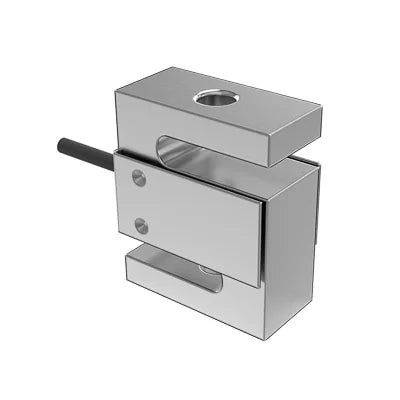

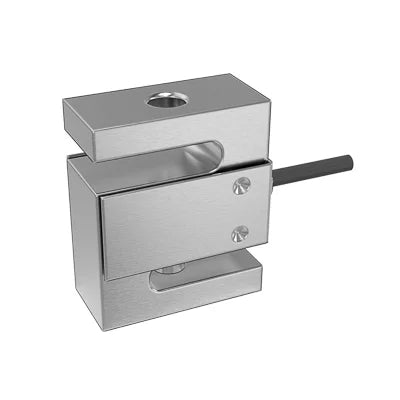

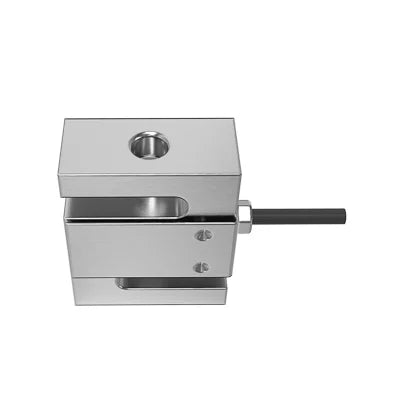

The 1000kg Load Cell – Model 9363 S-Type from Revere is a stainless-steel multipurpose load cell engineered for both tension and compression applications. Built for high accuracy and long-term durability, this load cell delivers precise, repeatable, and reliable measurements, making it suitable for industrial, commercial, and laboratory weighing systems.
Key Features & Benefits:
Capacity: 1000 kg (available in 50–10,000 kg / 50–20,000 lbs variants)
Construction: Stainless steel for corrosion resistance and robust performance
Multipurpose Design: Supports both tension and compression loading for versatile applications
Environmental Protection: IP67 rated – dust-tight and resistant to water immersion
Precision Engineering: Ideal for setups requiring reliable, high-accuracy measurements in demanding environments
Applications:
Compression and tension testing
Industrial weighing systems
Laboratory and research applications
Smart Tip: The 9363 S-Type Load Cell is perfect for applications needing a high-precision, durable, and versatile load cell capable of handling both tension and compression forces.
Description
Model 9363 is a multipurpose, stainless-steel S-type load cell that can be used in tension or compression.
The product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process-weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.
The product meets the stringent Weights and Measures requirements throughout Europe and the USA.
Features
| Parameter | Value | Unit | ||
|---|---|---|---|---|
| Rated capacity (kg) | 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 | kg | ||
| Rated capacity (lbs) | 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 3k, 5k, 10k, 15k, 20k | lbs | ||
| NTEP/oiml accuracy class | NTEP IIIL | Non-Approved | OIML C3 | |
| Max. no. of intervals (n) | 10000 | D3 | 3000 | |
| Rated output R.O | 3 | mV/V | ||
| Rated output tolerance | 0.0075 | ±%mV/V | ||
| Zero balance | 1 | ±%FSO | ||
| Non-repeatability | 0.0100 | 0.0100 | 0.0100 | ±%FSO |
| Creep error | — | ±%FSO | ||
| Ultimate over load | 250 | % of R.C | ||
| Excitation voltage | 5 to 12 | VDC or VAC RMS | ||
| Max. excitation voltage | 15 | VDC or VAC RMS | ||
| Input resistance | 390±15 | Ω | ||
| Output resistance | 350±3.5 | Ω | ||
| Insulation resistance | ≥5000 | MΩ | ||
| Environmental protection | IP67 | |||
