High-Accuracy Stainless Steel Load Cell for Harsh Industrial Environments

The 1000kg Load Cell – Model 3510 from Tedea-Huntleigh is engineered for industrial weighing applications where precision, durability, and long-term reliability are essential. Designed as a low-profile stainless steel shear beam load cell, it’s ideal for platform scales, process weighing systems, and tank applications.

With OIML R60 and NTEP certification, the 3510 ensures consistent, high-accuracy performance under challenging environmental conditions. Whether it’s washdown zones, outdoor installations, or factory settings, this load cell delivers stable and repeatable results.

Download Data Sheet

Technical Specifications

Model: 3510
Capacity: 1000 kg (Available range: 300–5000 kg)
Material: Stainless Steel
Type: Shear Beam Load Cell
Accuracy / Class Code: OIML 3000 d
Output: Standard Product
Environmental Code: IP68 (Fully welded and moisture-resistant)
Brand: Tedea-Huntleigh
SKU: 03510-001T-C3-01X
Approval / Safety Code: Not ATEX/FM approved
Stock Status: In Stock

Why Choose the 1000kg 3510 Stainless Steel Load Cell?

Built for performance and resilience, the Tedea-Huntleigh 3510 offers precision measurement and superior corrosion resistance. Its IP68 stainless steel body ensures dependable functionality even in high-moisture or washdown environments, making it a perfect fit for platform, tank, and process scales in heavy-duty industries.

Key Benefits

High-accuracy weighing for industrial systems
Stainless steel housing for corrosion protection
OIML and NTEP certified for global compliance
Low-profile design ideal for compact installations
Fully welded and sealed for moisture and dust resistance

Applications

Platform scales and pallet weighers
Tank and hopper weighing
Industrial washdown environments
Material processing and batching
Automated weighing systems

Smart Tip

Explore more heavy-duty and precision load cells at:
Load Cell Solutions Australia
Load Cell Shop
(Both are trusted DoFollow external resources.)

For related accessories, visit Sensors and Gauges.

Description

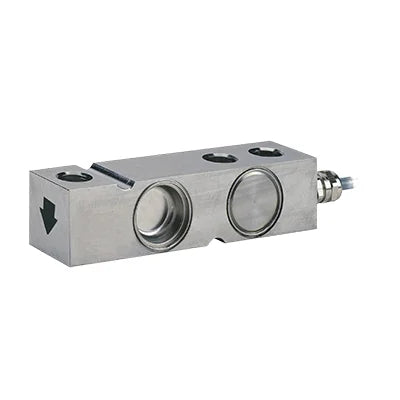

The Model 3510 provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical, low-profile range suitable for platform scale manufacture.

Its low profile and fully welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos.

The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell.

Hermetically sealed against moisture, the construction of the Model 3510, in combination with a polyurethane dual shielded cable, enables continuous operation in demanding environments while maintaining a high operating specification.

The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

Features

Capacities 300–5000 kg, 1000–5000 lbs
Stainless steel construction
OIML R60 and NTEP approved
Hermetically sealed to IP68 and IP69K
Specially designed for demanding environments

Options

EEx ia IIC T6 hazardous area approval
FM and IECEx approvals available
1100Ω impedance available

Parameter	Value	Unit
Rated capacity (kg)	300, 500, 750, 1000, 1200, 2000, 3000, 5000	kg
Rated capacity (lbs)	1000, 1500, 2500, 4000	lbs
NTEP/oiml accuracy class	NTEP \| Non-Approved \| C3 \| C6
Max. no. of intervals (n)	3000 single, 5000 multiple \| 1000 \| 3000 \| 6000
Rated output R.O	2.0 for kg and 3.0 for lbs	mV/V
Rated output tolerance	0.1	±%mV/V
Zero balance	2	±%FSO
Creep error	0.0200 \| 0.0500 \| 0.0200 \| 0.0100	±%FSO
Temp. effect on sensitivity	0.0023 \| 0.0100 \| 0.0023 \| 0.0007	±%FSO/F
Temp. effect on min dead load output	0.0010 \| 0.0030 \| 0.0010 \| 0.00058	±%FSO/F
Ultimate over load	300	% of R.C
Excitation voltage	10	VDC or VAC RMS
Max. excitation voltage	15	VDC or VAC RMS
Input resistance	380±10	Ω
Output resistance	355±5	Ω
Insulation resistance	>2000	MΩ
Environmental protection	IP68, IP69K

FSO - Full Scale Output
All specifications subjects to change whithout notice.

Application

Low profile platforms
Pallet truck weighing
Tank and silo weighing
Demanding environment weighing
Food industry weighing
