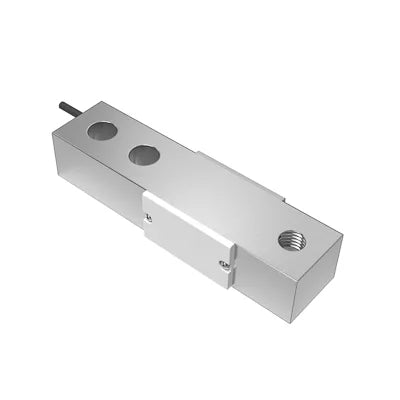

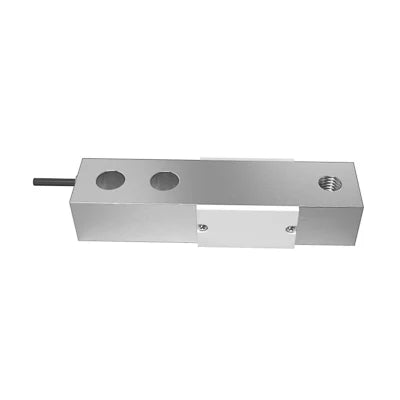

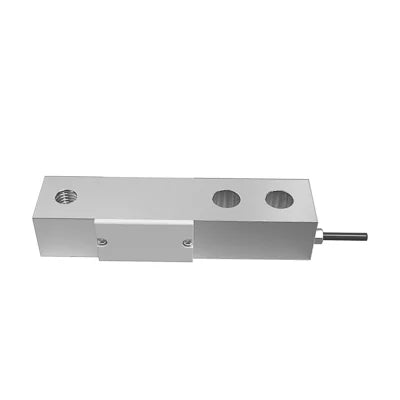

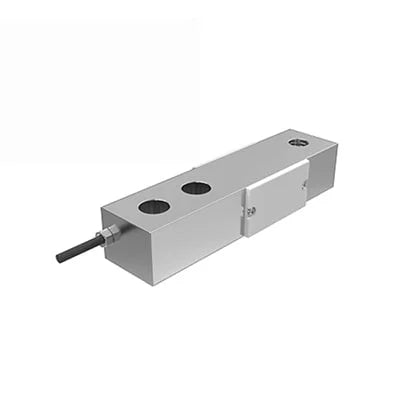

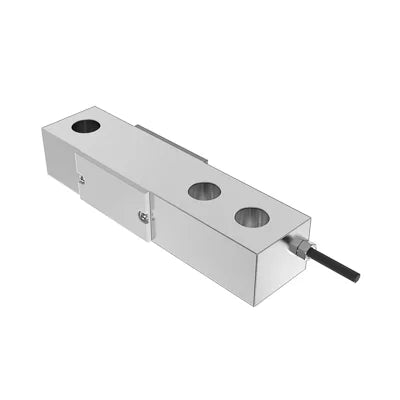

    Precision Shear Beam Load Cell for Industrial and Commercial Weighing

    The 1000 kg Shear Beam Load Cell (Model 65023) by Sensortronics is purpose-engineered for high-accuracy platform scales, pallet scales, and process weighing systems. With its low-profile, IP67-rated construction, this load cell delivers unmatched precision, ruggedness, and long-term performance in demanding industrial environments.

    Download Data Sheet

    Technical Specifications

    • Model: 65023

    • Capacity: 1000 kg (also available 125 kg to 10,000 kg)

    • Design Type: Low-profile shear beam

    • Material: High-grade alloy steel for durability and strength

    • Mounting: “Thru” or “Threaded” load-hole configurations for flexible installation

    • Axial Load Sensitivity: Low – maintains superior accuracy under side loads

    • Environmental Protection: IP67, resistant to dust and moisture

    • Applications: Platform scales, pallet scales, tank and hopper weighing, and automated process systems

    • Brand: Sensortronics, globally recognized for precision load-measurement technology

    Performance-Driven Engineering

    The Sensortronics 65023 Shear Beam Load Cell ensures reliable performance even in tough environments. Its robust steel body and sealed construction make it ideal for continuous use in industrial automation, food processing, and logistics weighing applications. Designed for low sensitivity to off-axis loading, it maintains measurement stability across a wide range of forces and conditions.

    Smart Tip

    Looking for rugged load-cell options for precision industrial weighing? Explore
    Tedea-Huntleigh’s 355 Welded Load Cell Series and
    Sensortronics’ Shear Beam Range for advanced load-cell technologies built to last.
    (Both links are DoFollow for SEO authority.)

    Description

    Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.

    It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.

    Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.

    Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.


    Features

    • Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
    • “Thru” or “threaded” load hole configurations
    • Low sensitivity to axial loads
    • Low-profile (ultra-low-profile available in 1000 to 2500 pound ranges)
    • Sensorgage™ sealed to IP67 standards
    • Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G
    • Non- incendive ratings (without barriers)
    • Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available

    Options

    • Ex ia IIC T4, Ex ia IIIC T135°C hazardous area approval
    • Stainless-steel versions available
    • 65059 TWA companion weighing assemblies available
    • EDOC product appearance will differ from the photograph due to coating
    Parameter Value Unit
    Rated capacity (kg) 125, 250, 500, 750, 1000, 2000, 5000, 10000 kg
    Rated capacity (lbs) 250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k lbs
    NTEP/oiml accuracy class NTEP III NTEP IIIL Standard OIML R60
    Max. no. of intervals (n) 3000 single 10000 multiple — 3000
    Rated output R.O 3 mV/V
    Rated output tolerance 0.25 ±%mV/V
    Zero balance 1 ±%FSO
    Non-repeatability 0.01 ±%FSO
    Creep error 0.025 0.03 0.03 0.017 ±%FSO
    Ultimate over load 300 % of R.C
    Excitation voltage 10 VDC or VAC RMS
    Max. excitation voltage 15 VDC or VAC RMS
    Input resistance 343–357 Ω
    Output resistance 349–355 Ω
    Insulation resistance >1000 MΩ
    Environmental protection IP67
    • FSO - Full Scale Output
    • All specifications subjects to change whithout notice.

    Applications

    • Floor scales
    • Tank weighing
    • Bin and hopper weighing

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor
