A Single Ended Shear Beam Load Cell is a robust sensor designed for precise industrial weighing applications, including hoppers, silos, tanks, and platform scales. Known for durability, simplicity, and high accuracy, these load cells provide reliable measurement in heavy-duty environments. At Sensors and Gauges, we offer a wide range of single ended shear beam load cells, digital indicators, and complete integration solutions to meet your industrial requirements. This guide explores features, applications, pricing, and benefits.
Single Ended Shear Beam
-

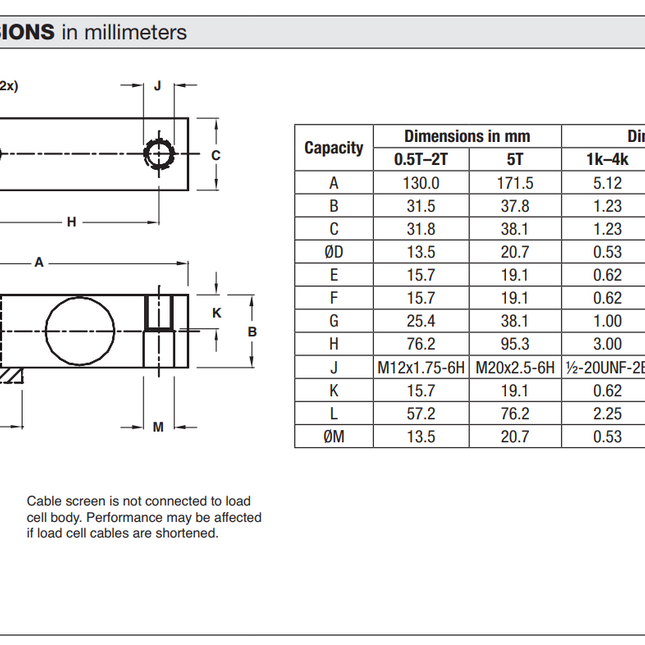

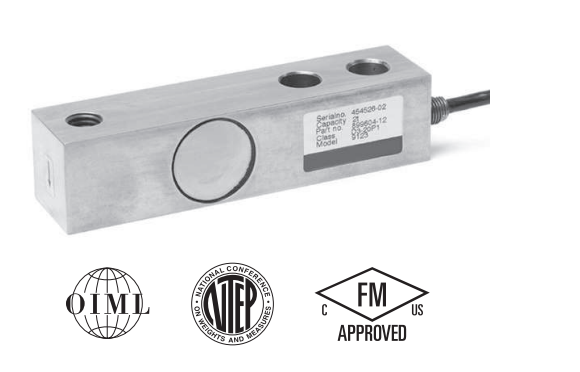

Revere Model 9123 Single-Ended Beam Load Cell
Title :- Model 9123 Single-Ended Beam Load Cell Brand :- Revere DESCRIPTION Model 9123 is a low-profile single-ended shear beam type load cell and is made from stainless steel. This load cell is suitable for small and medium platform scales, overhead track scales, hopper scales, and process weighing applications. Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. Ease of installation is made possible through the use of a partially-threaded hole to accept levelling feet, load buttons, or loading cables. FEATURES • Capacities: 500–5000 kg, 1k–20k lbs.• Low-profile construction• Certified to OIML R-60, 4000d and NTEP III, 5000 divisions• Sealing: IP67 (DIN 40.050)• Stainless-steel construction • Threaded load hole• Optional - FM certified for use in potentially explosive atmospheres APPLICATIONS • Low profile platforms• Pallet truck weighing• Tank and silo weighing
$64.64
-

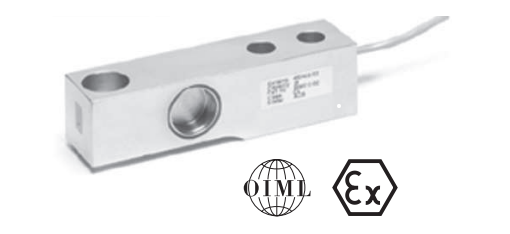

Tedea-Huntleigh Model ACB Single-Ended Beam Load Cell
Title :- Model ACB Single-Ended Beam Load Cell Brand :- Tedea-Huntleigh DESCRIPTION The Model ACB is a high performance stainless steel beam type load cell. An integral mounting step removes the need for spacer plates and ensures optimum “bolt down” conditions. This product is suitable for small and medium platform scales, hybrid scales, pallet weighers, and process weighing.The fully welded construction and the cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and allied process industries. FEATURES• Capacities: 500 kg, 1 t, 2 t, and 5 t• Low profile, stainless steel construction• Hermetically sealed, IP66 and IP68• Certified to OIML R60, 6000d• 1000 Ω bridge impedance• Current calibration output (SC) ensures easy andaccurate connection of multiple load cells• Integral mounting step• Optional - ATEX versions are available for use in potentiallyexplosive atmospheres, caused by gas or dust APPLICATIONS• Platform scales• Belt scales• Overhead track scales• Silo hopper weighing
$418.82
-

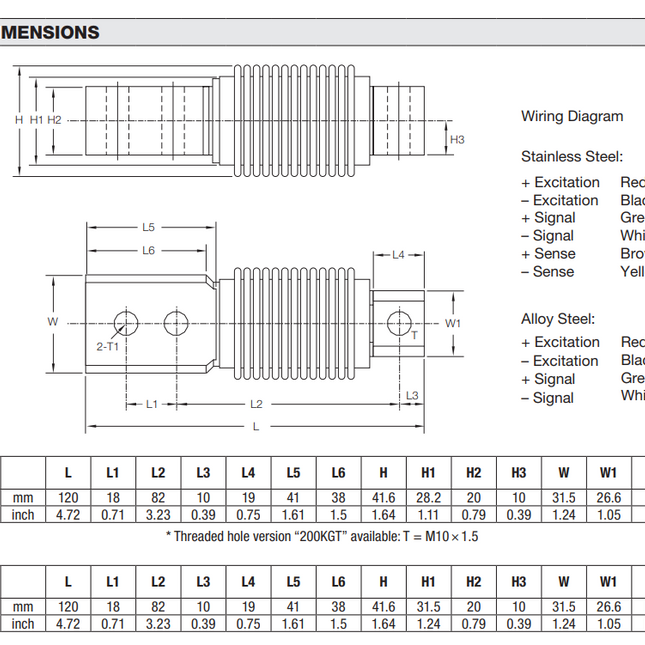

Tedea-Huntleigh Model HBB Hermetically-Sealed Bending Beam
Title :- Model HBB Hermetically-Sealed Bending Beam Brand :- Tedea-Huntleigh DESCRIPTION The Model HBB is a single-ended bending beam load cell designed for multiple cell applications, such as low profile platform scales or small tank scales, when used with proper mounting accessories. It is insensitive to side load and capable of reversed loading. The Model HBB is constructed of stainless steel or alloy steel. The strainless steel version is hermetically-sealed to IP68, providing excellent protection against corrosive and wash-down environments. FEATURES • Capacities: 10, 20, 30, 50, 75, 100, 200 and 250 kg• Stainless steel or alloy steel construction• Stainless steel version hermetically-sealed• High side load tolerance• Easy installation• OIML C3 approval from 50 kg to 250 kg APPLICATIONS • Platform scales (multiple load cells)• Silo / hopper / tank weighing• Packaging machines• Dosing / filling• Belt scales / conveyor scales
$173.01
-
Celtron Model SEB Single-Ended Beam
Title :- Model SEB Single-Ended Beam Brand :- Celtron DESCRIPTIONThe Model SEB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading.The Model SEB is constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage. FEATURES• Capacities: 500 kg, 1 t, 1.5 t, 2 t, and 2.5 t• High side-load tolerance• Electroless nickel-plated-alloy tool steel• OIML C3 approval from 500 kg to 2.5 t• Optional - FM approval available APPLICATIONS• Truck/rail scales• Silo/hopper/tank weighing• Platform scales (multiple load cells)• Pallet truck scales• Packaging machines
$81.59
-

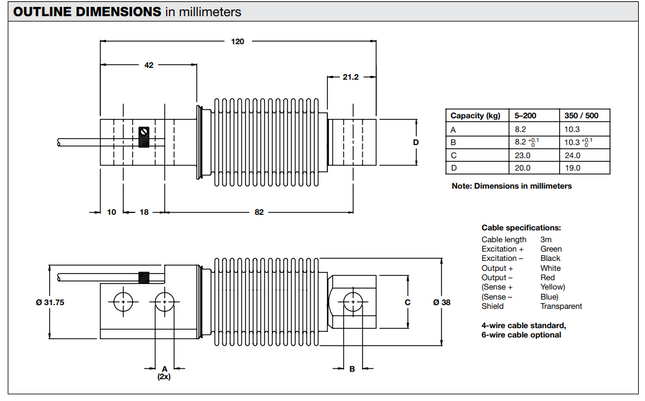

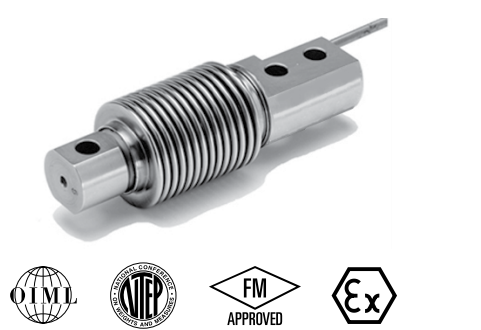

Revere Model SHBxR Single-Ended Load Beam
Title :- Model SHBxR Single-Ended Load Beam Brand :- Revere DESCRIPTION The Model SHBxR is a fully weld-sealed stainless steel bending beam type load cell. This product is suitable for low capacity platform scales, packaging machines, hybrid scales and process weighing. Fully welded construction and water block cable-entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied industries. This product meets the stringent Weights and Measures requirements throughout Europe. FEATURES • Capacities: 5–500 kg• Fully welded, stainless steel construction• Hermetically sealed, IP66 and IP68• Certified to OIML R-60, 4000d and NTEP class IIIL, 10000 divisions• Current calibration output (SC version) ensures easy and accurate parallel connection of multiple load cells• Optional - ATEX and FM certified versions are available for use in potentially explosive atmospheres APPLICATIONS • Platform scales• Belt scales• Packaging machines• Silo/hopper weighing
$133.19
-

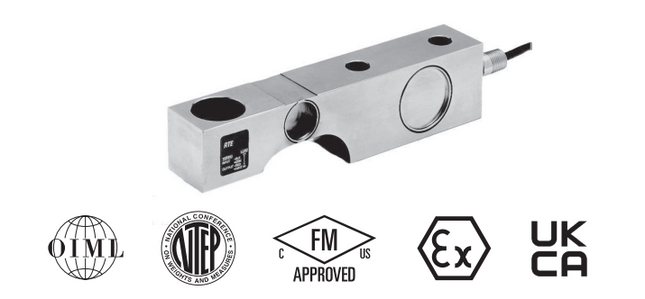

Revere Model SSB Single-Ended Load Beam
Title :- Model SSB Single-Ended Load Beam Brand :- Revere DESCRIPTION Model SSB is a stainless-steel single-ended shear beam type load cell. The robust product is suitable for a wide range of platform scales, pallet scales, overhead track scales, and process weighing applications. The fully-welded construction and water block cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and allied process industries. The product meets the stringent Weights and Measures requirements throughout Europe and the USA. FEATURES • Capacities: 0.5 t, 1 t, 2 t, 5 t, 10 t, 1k lbs., 2k lbs., 5k lbs., and 10k lbs. • Fully welded, stainless steel construction • Hermetically sealed, IP66 and IP68 • Certified to OIML R-60, 4000d and NTEP 10000d • Current calibration output (SC version) ensures easy and accurate parallel connection of multiple load cells • Digital version available (model SBC) • Optional - ATEX & UKCA Approval. - FM approval APPLICATIONS • Platform scales• Belt scales• Pallet scales• Overhead track scales• On-board weighing • Silo hopper weighing
$294.44
-

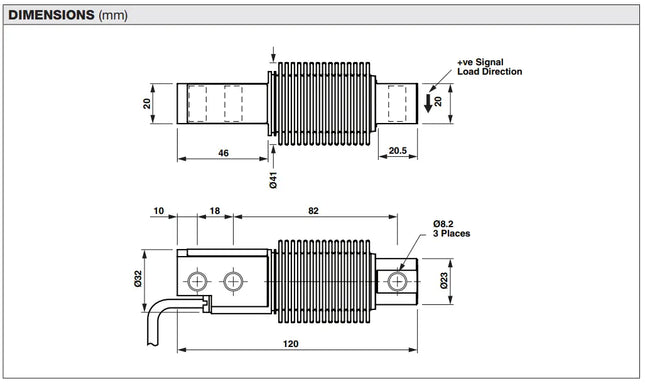

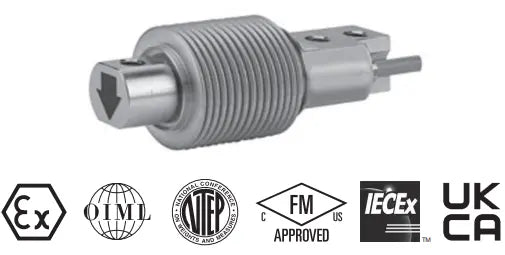

Tedea-Huntleigh Model- 355 Welded, Hermetically Sealed Load Cell
Title :- Model- 355 Welded, Hermetically Sealed Load Cell Brand :- Tedea-Huntleigh DESCRIPTION Model 355 is a welded bending load cell manufactured in stainless steel. It is hermetically sealed against moisture and has a polyurethane shielded cable, enabling it to function in demanding environments while maintaining full operating specifications. With its low profile, high accuracy and hermetic sealing, the Model 355 load cell is ideal for applications such as low-profile platforms, weighing and packing machines, conversion of mechanical and varied other applications where sealed cells are required. For hazardous environments, this load cell is available with FM Approval, ATEX, IECEx and UKCA certifications as an option. Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. FEATURES • Capacities: 5–500 kg• Stainless steel construction• OIML R60 and NTEP approved• IP68 protection• Optional - FM Approval, ATEX, IECEx and UKCA certifications available. MAIN APPLICATIONS• Low-profile platforms• Loss-in-weight feeders• Marine and hybrid scales• Belt weighers• Demanding food industry environments
$91.43
-

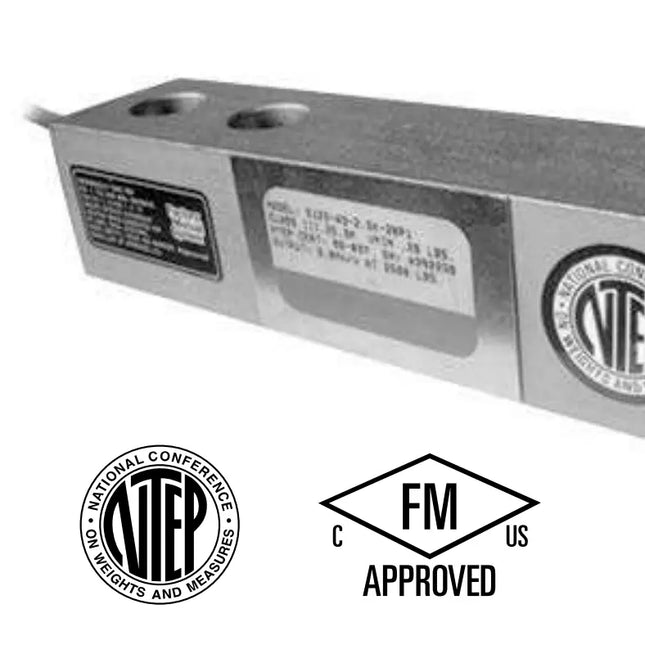

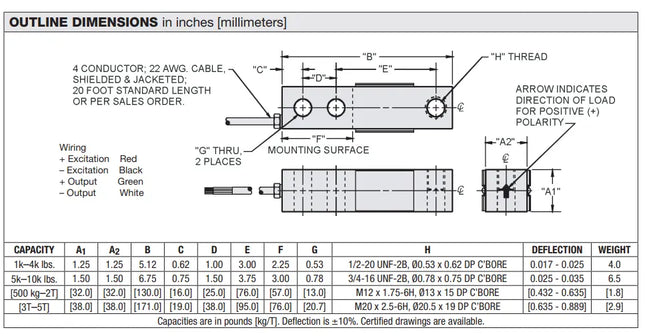

Revere Revere Single Point Load Cell - Model 5123
Title :- Revere Single Point Load Cell - Model 5123 Brand :- Revere DESCRIPTION Model 5123 is a low profile single-ended shear beam type load cell made from nickel-plated tool steel . This product is suitable for small and medium platform scales, overhead track scales, hopper scales, and process weighing applications . Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area . Ease of installation is made possible through the use of a partially threaded hole to accept levelling feet, load buttons, or loading cables. FEATURES • Capacities: 500–5000 kg, 1k–10k lbs.• Low profile construction• Certified to OIML R-60, 3000d and NTEPclass III, 3000 divisions• Sealing: IP67 (DIN 40.050)• Nickel-plated alloy steel construction• Threaded load hole• Optional- FM certified for use in potentiallyexplosive atmospheres APPLICATIONS • Floor scales• Tank weighing• Bin and hopper weighing
$71.59
-

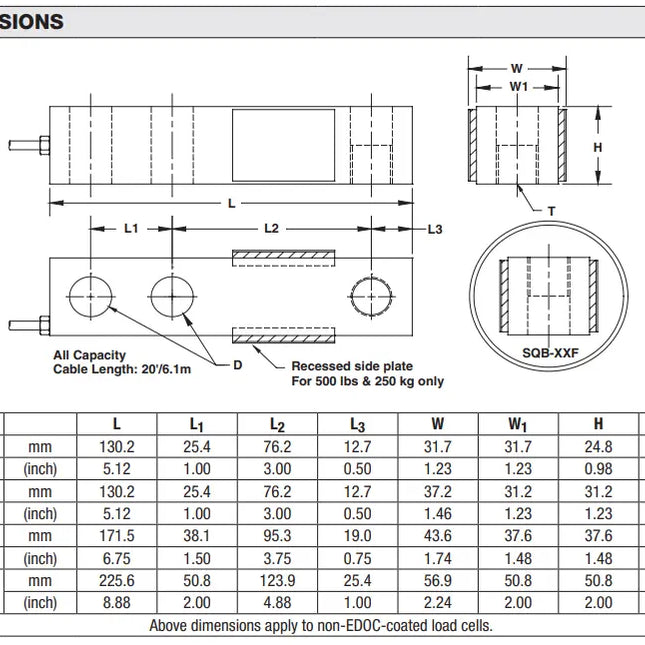

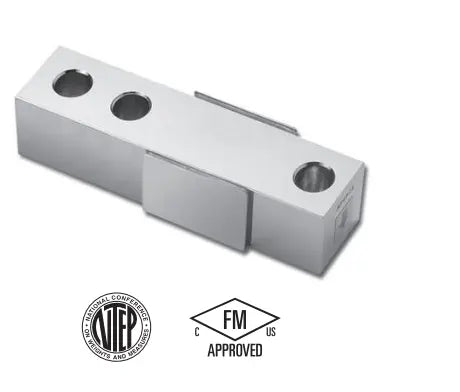

Celtron SQB- Single-Ended Beam
Title :- SQB- Single-Ended Beam Brand :- Celtron DESCRIPTION Model SQB is a single-ended shear beam load cell designed for multiple cell applications, such as low profile platform or small tank scales, when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading. Models SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage. Features You’ll Love: • Capacities: 500 to 20k lbs, 250 to 5000 kg • High side-load tolerance• Electroless nickel-plated-alloy tool steel• NTEP Class III 5000M for SQB, SQB-F and SQB-SS available from 1k to 10k lbs• SQB-SS stainless steel construction • Optional - FM approval - EDOC product appearance will differ from the photograph due to coating APPLICATIONS• Truck/rail scales• Silo/hopper/tank weighing• Platform scales (multiple load cells)• Pallet truck scales• Packaging machines
$61.60
You have seen 33 out of 33 products
