Canister Load Cells

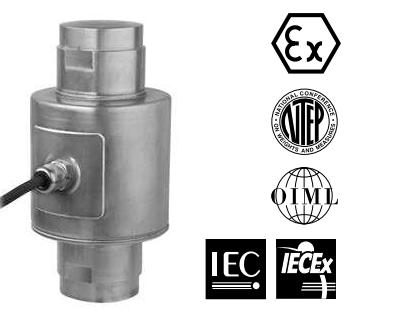

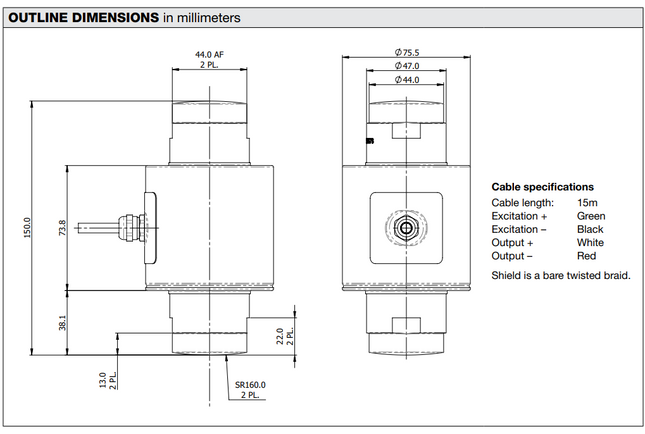

The Model ASC2 is a single column, stainless steel compression load cell fully compatible with original Model ASC. This product is suitable for use in road and rail weighbridges and process weighing applications. The fully welded construction and built-in surge protection ensures that this product can be used successfully in many demanding environments. This load cell meets the stringent Weights and Measures requirements throughout Europe and the Americas. FEATURES • Capacities: 30, 40 and 50 t• Self-aligning, stainless steel single column• Hermetically sealed, IP66/68/69K• Certified to OIML R60 5500d and NTEP IIIL/10,000 d• Built-in surge protection• Current calibration output ensures the easy and accurate parallel calibration of multiple load cells• Compatible with original Model ASC • Optional - Digital version available (Model DSC2)  - ATEX and IECEx approvals available APPLICATIONS • Weighbridges• Process weighing

Read more less

Imagine a weighing solution that can withstand the toughest environments, ensuring precision every single time. Introducing the Model 120 is a high capacity truck scale and silo load cell which is supplied complete with its own unique rocker mounting components.  Suitable for all heavy duty weighing applications, the Model 120 gives the user high accuracy and low installation cost. Crafted to endure, its stainless steel housing guards against corrosion, ensuring long-lasting performance. The nickel-plated alloy steel compression element provides durability, while the zinc-plated alloy steel rocker mounting accessories ensure stability and strength. This is a product that doesn't just perform – it lasts. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of change in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. FEATURES  Capacities ranging from 3 to 50 tons, handling even the heaviest loads. Stainless steel housing, built to last and resist corrosion. Surge arrestors, protecting against electrical spikes. Easy installation, minimizing downtime and reducing setup costs. An impressive 0.02% total error for unparalleled accuracy. Advanced 6-wire sense circuit, ensuring precision in every environment. Output tolerance of just 0.1%, guaranteeing consistent results. Ideal Applications Truck weighbridges for efficient, accurate vehicle weighing. Silo and hopper weighing for precise inventory management. Train “rail” scales, perfect for weighing cargo on the move. Process weighing, ensuring accuracy throughout industrial processes.

Read more less

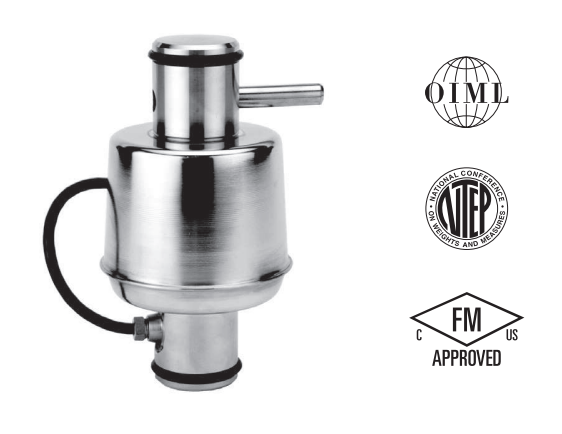

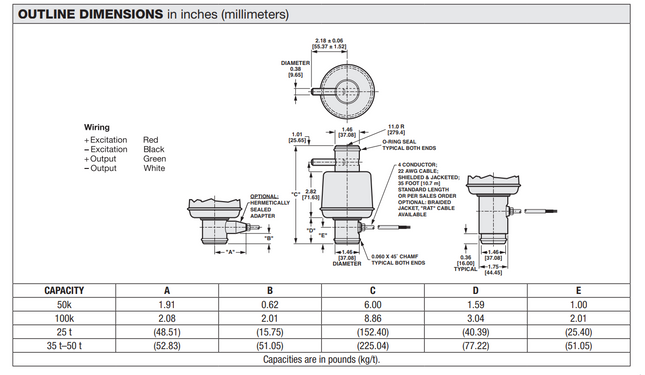

Model 65114 is a high capacity, stainless steel single column compression load cell. This product is specifically designed for use in rugged outdoor environments. Made from stainless steel, IP67 welded sealing comes standard, with optional, fully hermetic, IP68 sealing available upon request. This load cell is used primarily in truck and train scales, but can just as easily be used to weigh tanks and silos. The load cell is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments. The load cell is certified for Legal-for-Trade applications by both American NTEP and International OIML standards.  FEATURES • Rated capacities of 50,000 to 100,000 pounds; 25 to 50 metric tonnes • Stainless steel, welded seal construction • 30 feet standard cable length • Trade certified for NTEP Class IIIL: 10000 divisions and OIML R60 3000 divisions • Welded Sensorgage™ sealed to IP67 standards• Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G. • Non-incendive ratings (without barriers) • Optional - Hermetically sealed version, meets IP66/68 standards  APPLICATIONS • Truck scales • Tank, bin, and hopper weighing

Read more less

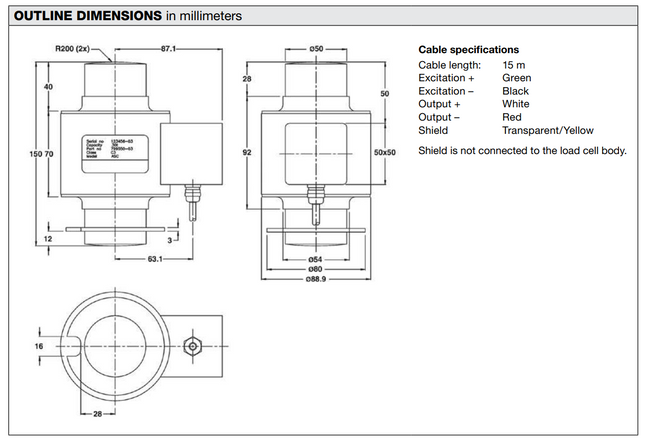

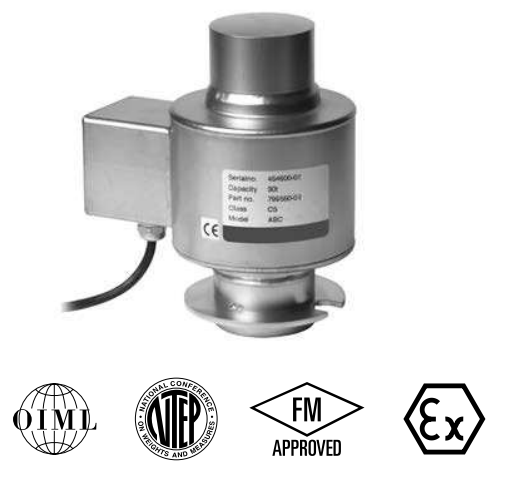

The Model ASC is a single column, stainless steel compression load cell. This product is suitable for use in road and rail weigh bridges and process weighing applications. The welded construction and built-in surge protection ensure that this product can be used successfully in harsh environments. This load cell meets the stringent Weights and Measures requirements throughout Europe and the USA FEATURES • Capacities: 30, 40, 50, and 60 t• Self-aligning, stainless steel single column• Hermetically sealed, IP66/IP68/IP69K• Certified for OIML R60 C6 and NTEP class IIIL 10000 divisions• Built-in surge protection tubes (GDTs)• Current calibration output (SC) ensures easy and accurate parallel connection of multiple load cells • Optional ❍ Digital version available (model DSC)  APPLICATIONS • Weighbridges• Silo hopper weighing

Read more less

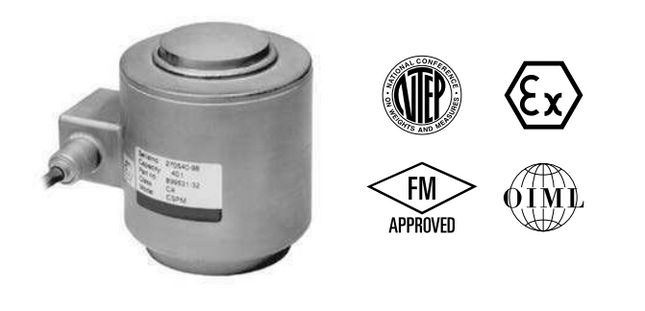

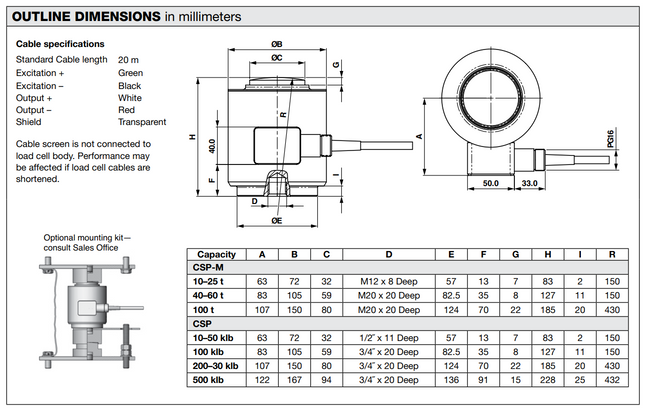

The Model CSP is a multi-column, low profile, stainless steel compression load cell. The unique four column design offers excellent insensitivity to eccentric loads while maintaining accuracy.  This product is suitable for use in road and rail weighbridges and process weighing applications. The fully leak-tested welded construction, advanced cable entry, and built-in surge protection tubes ensure that this product can be used successfully in demanding environments. This product meets the stringent Weights and Measures requirements throughout Europe. FEATURES • Capacities: 10–100 t• Low profile, multi-column stainless steel construction• Hermetically sealed, IP66, IP68, and IP69K• Certified to OIML R-60, 4000d and NTEP class IIIL10000 divisions- Model CSP offers klb capacity, imperial thread andNTEP approval- Model CSP-M offers metric capacity, thread and OIMLapproval• Built-in surge protection tubes (GDTs)• Current calibration output (SC version) ensures easyand accurate parallel connection of multiple load cells• Optional- ATEX and FM certified versions are available for use inpotentially explosive atmospheres- Multi-interval and multiple range versions available- Imperial capacities (25k, 50k, 100k, 200k lbs) notOIML approved APPLICATIONS • Truck and rail weighbridges• Silo and hopper weighing• Process weighing

Read more less
